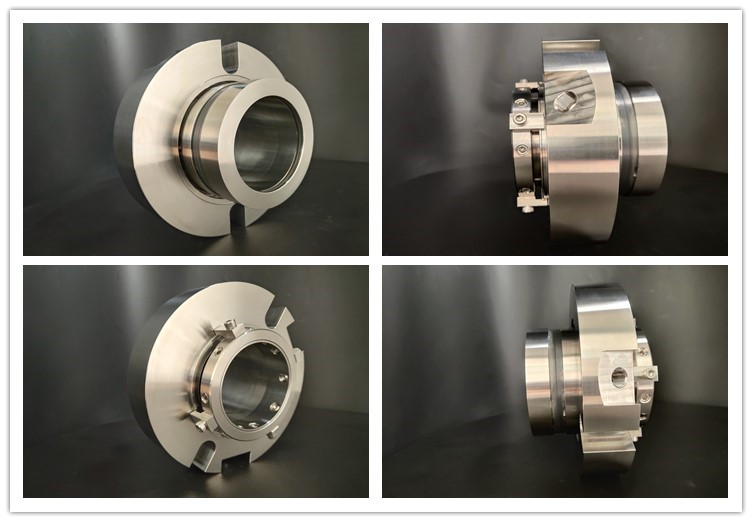

AS-C476 Single Cartridge Seal

AS-C476 cartridge seal is customized single seal  with multiple spring   that  made as per client drawing.

About Us :

Background:

Dynamic response characteristics of mechanical seals
1. Definition and Importance
Mechanical seal is a device used to prevent fluid leakage, and its dynamic response characteristics refer to the ability of mechanical seals to respond and maintain sealing performance in the face of parameter changes such as temperature, pressure, speed, and external interference during equipment operation. In the context of increasingly demanding working conditions in chemical and other equipment (high temperature, high pressure, high speed, and hazardous characteristics of sealing media), the dynamic response characteristics of mechanical seals are crucial for the stability and followability of sealing systems.
2. Analysis methods
Taking the advanced non-contact mechanical seal of spiral groove dry gas seal as an example, in the analysis of its dynamic characteristics, new numerical methods are used to solve the sealing lubrication equation and motion equation simultaneously. This method can cover the nonlinear effects of gas film and comprehensively reflect the nonlinear dynamic response of the sealing system. Among them, the discretization and numerical formation of the lubrication equation adopt the finite element method with strong adaptability to various groove shapes, the mesh division uses 8-node quadrilateral isoparametric elements, and the final simultaneous ordinary differential equation system is solved using the Adams Moulton method and Gear backward difference formula.
3. Influencing factors
speed
Speed will have an impact on the followability of mechanical seals. During high-speed operation, the sealing ring may experience response delay due to inertia and other factors, resulting in a decrease in sealing performance. For example, in some high-speed centrifugal pumps, excessive rotational speed may prevent the dynamic ring of the mechanical seal from following the movement of the shaft in a timely manner, resulting in leakage.
inertia
The inertia of components such as sealing rings can affect the dynamic response of mechanical seals. Components with high inertia have a slower response speed when the equipment operating conditions change, making it difficult to quickly adapt to new working conditions, which in turn affects the sealing effect. For example, during the process of starting or stopping the device, sealing components with high inertia may not be able to quickly adjust their position, resulting in instantaneous sealing failure.
Pressure drop direction
The change in pressure drop direction will affect the pressure distribution inside the sealing chamber, thereby affecting the stability and followability of the mechanical seal. Different pressure drop directions may result in uneven pressure on the sealing end face, causing changes in the fitting state of the sealing surface and affecting the sealing performance.
Changes in temperature and material properties
Temperature changes can cause material expansion or contraction, and changes in material properties may also affect the lubrication and friction state of the sealing surface. For example, high-temperature media often have the characteristics of low viscosity and strong permeability, which can lead to more severe corrosion of the sealing surface. Under the effect of temperature difference, the expansion uniformity of the sealing element changes, and in severe cases, leakage problems can be caused by poor sealing.
The significance of dynamic response characteristics
Studying the dynamic response characteristics of mechanical seals helps to gain a deeper understanding of the operating conditions of sealing systems under different working conditions, providing guidance for the engineering design of mechanical seals. By analyzing the sealing response under different parameters, the critical stability value of the seal can be determined, and the influence of various parameters on the followability can be evaluated, thereby optimizing the design and selection of mechanical seals and improving the reliability and service life of the sealing system.
