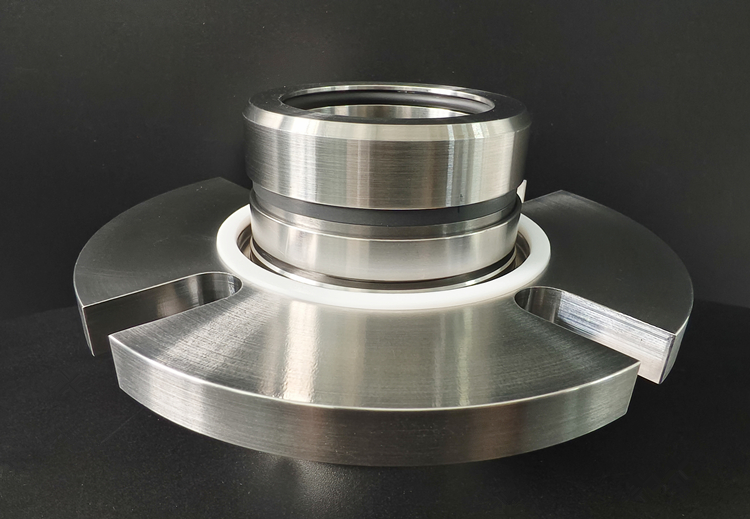

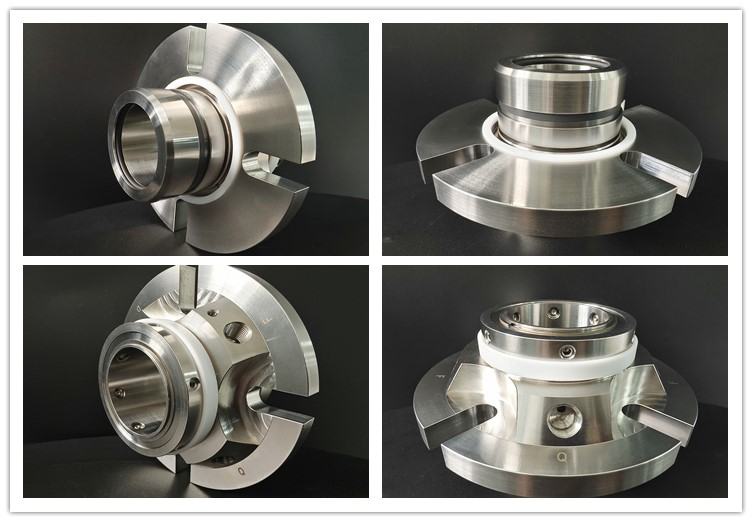

AS-C538 cartridge seal is customized single seal with single spring that made as per client drawing.
Basic information：
Model: | AS-C538 | Size： | 1.375” |
Structure: | Single spring | Type： | Single seal |
Pressure： | Medium pressure mechanical seal | Speed： | General Speed Mechanical Seal |
Temperature: | Temperature Mechanical Seal | Standard: | Standard |
Balance: | Balance | Appliaction: | Pump |
MOQ: | 1 set | Transport package: | Wooden Case or Carton |
HS code: | 8484200090 | Origin: | Zhangjiagang,China |
Combined Materials :
Rotary face material： | SSIC | Stationary face material： | TC |
Spring material: | SS316 | Secondary seal: | Viton |
Metal parts: | SS316 | Other: |
Production Description:
1. Feature
- Standardized design
- The single spring structure is simple and has strong environmental adaptability
- The positioning of the fastening screw is simple and reliable, and easy to install
- Corrosion resistant design with dedicated corrosion-resistant seals
2. Material
We can provide materials not mentioned above to meet the requirements of different occasions. If needed, please contact Asino company
3. Aplications
Oil and gas, chemical, metallurgical, pharmaceutical, food, water treatment
4. Background
a. Why choose cartridge seal with single spring (advantages and applicable scenarios)
Anti clogging performance: This is the core advantage. Because there is only one large spring and it is usually arranged outside the conveying medium (stationary type), particles and crystals in the medium are not easily trapped in the spring, making it suitable for conveying media containing solid particles (such as slurry and alkali solution).
Installation convenience: Compared to loose sealing, cartridge seal with single spring greatly simplifies the installation process, reduces the technical requirements for on-site installation personnel, and minimizes failures caused by improper installation.
b. Potential risks and reasons for failure of cartridge seal with single spring
Spring failure: Long term operation in corrosive media or high temperatures may cause corrosion, fracture, or relaxation of large springs, resulting in insufficient compensation force and leakage.
Installation Misconception: Although the modular design is"adjustment free", if the shaft sleeve is not clean (scratches the O-ring), the bolt torque is uneven (deformation of the cover), or the pump shaft alignment is ignored, it can still lead to seal failure.
Adaptability to working conditions: Under low temperature or strong corrosion conditions, if the material of the O-ring is not selected properly, it may harden and lose elasticity, resulting in changes in the specific pressure of the sealing surface and causing leakage.
Company Profile
Shipping Package
Asinoseal : We are a factory with 3000㎡area with over 40 workers.
Question 2: Where is your factory located? How can I go there?
Asinoseal: Our factory is located in Zhangjiagang City,Suzhou, near Shanghai .
Question 3 How can I trust your quality?
Asinoseal: Our company passed ISO9001:2008,and strictly follow this standard,we have strict QC from raw material QC to QC before shipping to ensure our quality. Quality lists always first in our company.
Question 4: When can I get my order after placing it?
Asinoseal: For stock one,3-7 days, non-standard one 30-35 days
Question 5: What's payment term?
Asinoseal: For first cooperation,it has to be 100% before production,but for long-term cooperation,it could be adjusted
Question 6: Can you make mechanical seals according to our drawing?
Asinoseal: Absolutely yes,that's our advantage
Question 7: What's your company's advantage product?
Asinoseal : Agitator seals,cartridge seals and metal bellow seals,we always have good price and quality
