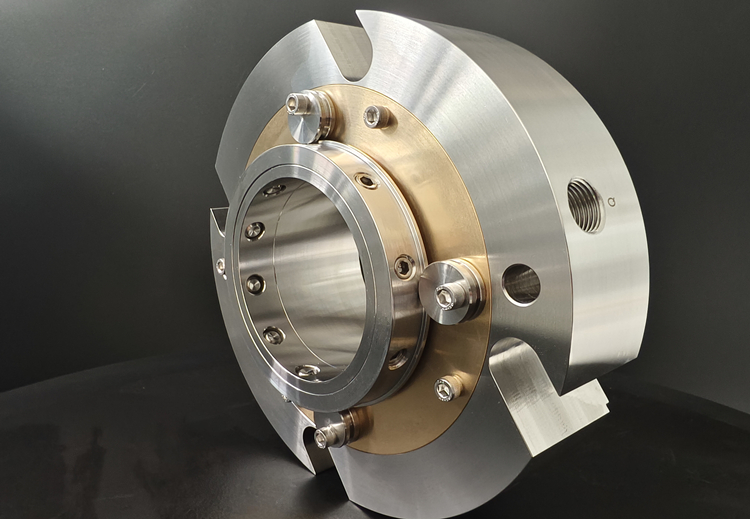

AS-C540 Dual Cartridge Seal

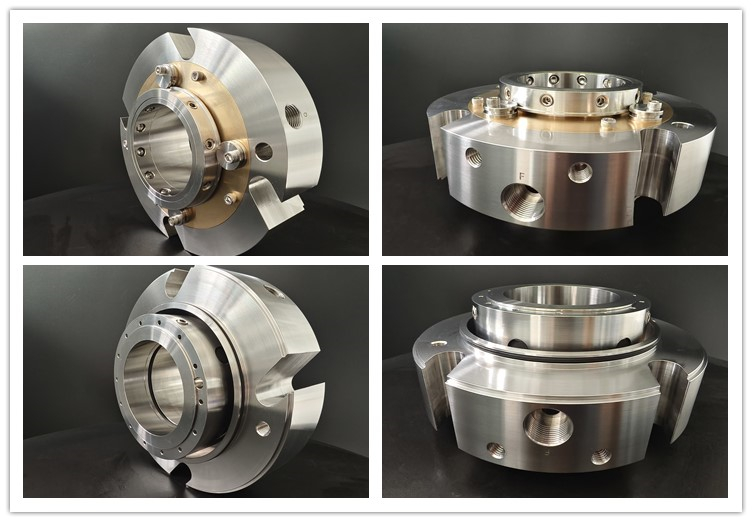

AS-C540 cartridge seal is customized single seal with multiple spring that made as per client drawing.

Basic information：

Combined Materials :

Production Description:

1. Feature

• Multi spring compensation performance is good, and the end face load is uniform
• Composite transmission has lower friction damping and more uniform transmission force
• The positioning and installation of the fastening screw are simple and easy to adjust

2. Material

We can provide materials not mentioned above to meet the requirements of different occasions. If needed, please contact Asino company

Oil and gas, chemical, metallurgical, pharmaceutical, food, water treatment

4.Background

Standard customization process


a. Requirement collection and working condition confirmation
This is the most crucial first step. customized seal providers  need to understand core parameters such as equipment type, shaft diameter, sealing chamber size, medium, temperature, pressure, and speed. If the customer only has old parts, the customized seal providers  can arrange for sample surveying.


b. Scheme design and drawing confirmation
The technical team will select materials (end faces, elastomers, metal parts) and design structures based on the working conditions, and provide CAD drawings.


c. Sample trial production and testing
After the drawings are confirmed, the customized seal providers  will arrange for sample production and conduct quality control testing.


d. Batch production and delivery
After the sample acceptance is passed, it will enter mass production. Batch orders usually take 15-30 days.


Cycle and Cost Reference
The design and manufacturing cost of customized parts is usually 2-10 times that of standard parts, as it involves additional engineering, mold, and testing inputs. But if the frequent failure of standard seals leads to downtime losses, customized solutions may be more cost-effective in terms of full lifecycle costs.

Suggestions for efficient promotion
When preparing for customization, try to provide photos of equipment nameplates, physical or drawings of old seals, and complete operating parameters, which can significantly shorten the communication time in the early stage. If the budget or cycle is tight, you can ask the customized seal providers  if there is a"standard part improvement"plan (such as replacing the elastic material or end face material) to achieve a balance between cost and performance.

Company Profile

Shipping Package

FAQ

Question 1: Are you a factory or a trade company?
Asinoseal : We are a factory with 3000㎡area with over 40 workers.

Question 2: Where is your factory located? How can I go there?
Asinoseal: Our factory is located in Zhangjiagang City,Suzhou, near Shanghai .

Question 3 How can I trust your quality?
Asinoseal: Our company passed ISO9001:2008,and strictly follow this standard,we have strict QC from raw material QC to QC before shipping to ensure our quality. Quality lists always first in our company.

Question 4: When can I get my order after placing it?
Asinoseal: For stock one,3-7 days, non-standard one 30-35 days

Question 5: What's payment term?
Asinoseal: For first cooperation,it has to be 100% before production,but for long-term cooperation,it could be adjusted

Question 6: Can you make mechanical seals according to our drawing?
Asinoseal: Absolutely yes,that's our advantage

Question 7: What's your company's advantage product?
Asinoseal : Agitator seals,cartridge seals and metal bellow seals,we always have good price and quality
