AS-C535 Single Cartridge Seal

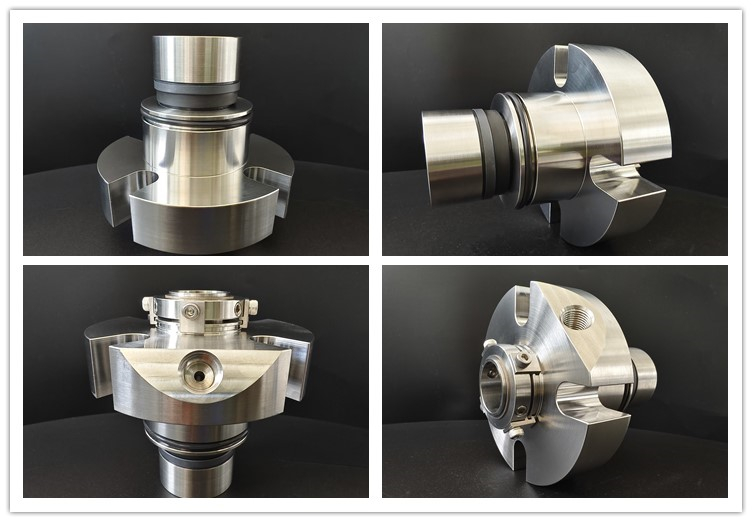

AS-C535 cartridge seal is customized single seal with multiple spring that made as per client drawing.

Basic information：

Combined Materials :

Production Description：

1. Feature

Multi spring compensation performance is good, and the end face load is uniform

Composite transmission has lower friction damping and more uniform transmission force

The positioning and installation of the fastening screw are simple and easy to adjust

2. Material

We can provide materials not mentioned above to meet the requirements of different occasions. If needed, please contact Asino company

3. Aplications

Oil and gas, chemical, metallurgical, pharmaceutical, food, water treatment

4. Background

What is the core of customized seal
It is far more than just"changing the size", its core essence is mainly reflected in the following three aspects:

a. Accurate working condition analysis is the cornerstone
This is the starting point for customized seal and the key to success or failure. It is necessary to comprehensively and accurately grasp the"pathology"and"constitution"of the equipment like a doctor's consultation:
Five core parameters: pressure (P), temperature (T), velocity (V), medium characteristics (corrosiveness, particle content, etc.), and installation space must be accurately obtained. Any deviation in a parameter can lead to seal failure.
Dynamic and transient operating conditions: In addition to steady-state operation, dynamic processes such as start-up, shutdown, pressure fluctuations, and temperature changes should also be considered. Many sealing failures occur precisely under these transient operating conditions.

b. The integrated positive design of"material structure performance"is the soul
This is where the true technical content of customized seal lies. It is not a simple assembly of parts, but a system engineering:
Accurate material matching: Select the most suitable friction pair (such as silicon carbide with graphite, or hard alloy with silicon carbide) and auxiliary sealing material (such as fluororubber, perfluoroether rubber, etc.) based on the medium and temperature. For example, when dealing with strong acid media, metal components must be made of Hastelloy or titanium instead of ordinary stainless steel.
Structural innovation design: designed to solve specific problems. For example, designing structures with flushing holes or pumping rings for high viscosity or granular media; In high-pressure situations, multiple end faces or balanced structures are used to counteract the medium pressure and ensure a reasonable end face pressure ratio.

c. Improving reliability and full lifecycle value is the ultimate goal
The fundamental purpose of customized seal is to solve pain points that standard products cannot solve and create maximum value for customers:
The reliability of"targeted treatment": Through the above design, the long service life and high reliability of the seal are fundamentally improved, greatly reducing unplanned downtime. For example, in the petrochemical industry, customized seal that comply with API 682 standards can promise continuous operation for at least 3 years without leakage.
Reducing Total Cost of Ownership (TCO): Although the initial investment may be higher, the long-term TCO is often much lower than that of frequently replaced standard products by extending maintenance cycles, reducing spare parts inventory, lowering energy consumption and leakage losses.
As a comprehensive solution, top-level customization not only provides parts, but also offers a complete sealing system solution, including auxiliary flushing system, installation guidance, status monitoring, etc., to ensure stable operation of the equipment throughout the entire cycle.

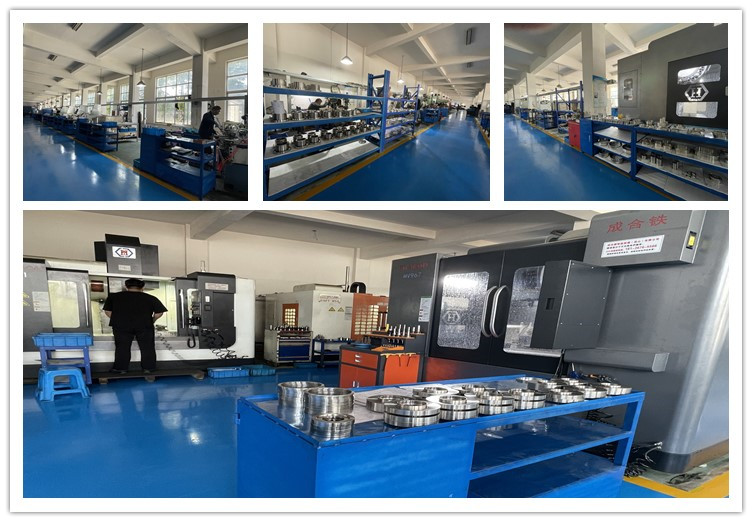

Company Profile
