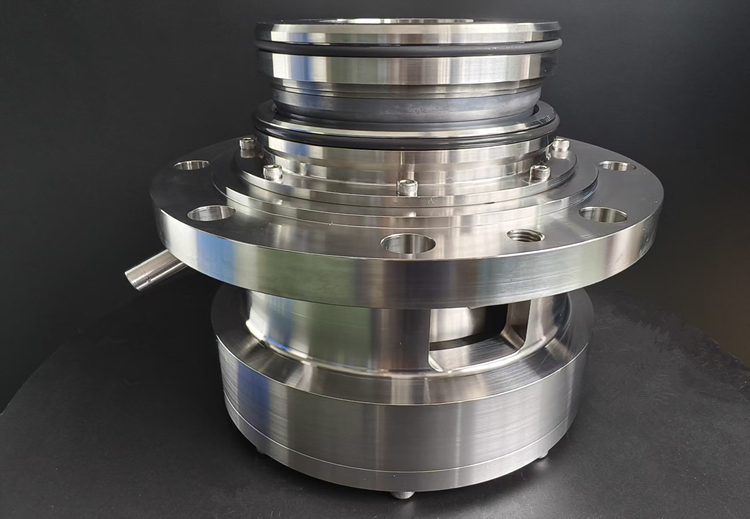

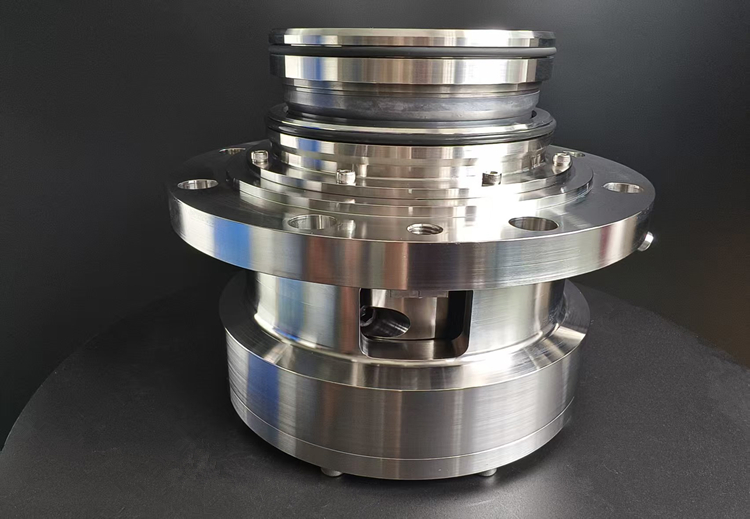

Basic information：
Model: | AS-C541 | Size： | 100mm |
Structure: | Multiple spring | Type： | Single seal |
Pressure： | Medium pressure mechanical seal | Speed： | General Speed Mechanical Seal |
Temperature: | High Temperature Mechanical Seal | Standard: | Non-standard |
Balance: | Balance | Appliaction: | Pump |
MOQ: | 1 set | Transport package: | Carton or wooden case |
HS code: | 8484200090 | Origin: | Zhangjiagang,China |
Combined Materials :
Rotary face material： | TC | Stationary face material： | SIC |
Spring material: | Hast-C | Secondary seal: | VITON |
Metal parts: | SS316 | Other: | |
Production Description:
1. Feature
Multi spring compensation performance is good, and the end face load is uniform
Composite transmission has lower friction damping and more uniform transmission force
The positioning and installation of the fastening screw are simple and easy to adjust
2. Material
We can provide materials not mentioned above to meet the requirements of different occasions. If needed, please contact Asino company
3. Aplications
Oil and gas, chemical, metallurgical, pharmaceutical, food, water treatment
4. Background
a. Key parameters that need to be prepared before customization
The failure of mechanical seal customization is largely due to the lack of information during the selection stage. Before contacting the customized seal factory, it is recommended to clarify the following information as much as possible:
Media characteristics: name, concentration, corrosiveness, presence of solid particles (crystals or fibers), viscosity, and susceptibility to vaporization.
Operating parameters: temperature (minimum/maximum/fluctuation), pressure (inlet/outlet, constant or pulse), speed or shaft diameter, shaft runout.
Equipment information: pump/kettle model, sealing chamber size, installation space limitations. Providing old parts or drawings directly to the customized seal factory is the most efficient way.
Expected standards: Whether it is required to comply with standards such as DIN24960, GB6556, or to replace a certain imported brand model.
b. Practical advice when choosing a customized seal factory
Be wary of the promise of 'anything can be done': the material and structure of mechanical seals are highly dependent on the working conditions. A customized seal factory specializing in clean water pumps may not be able to handle high-temperature oil pumps or media containing particles well. Prioritize suppliers with clear application cases in your industry.
Confirm customization depth: Ask the other party if they want to"modify standard part dimensions"or"redesign from working condition analysis". For critical equipment, the latter is usually more reliable.
Request samples and testing reports: For mass customization, confirm whether the customized seal factory can provide samples before mass production and has basic air tightness/water pressure testing or operational testing capabilities.
