Basic information：
Model: | AS-C534 | Size： | 1.975” |
Structure: | Single spring | Type： | Single seal |
Pressure： | Medium pressure mechanical seal | Speed： | General Speed Mechanical Seal |
Temperature: | High Temperature Mechanical Seal | Standard: | Standard |
Balance: | Balance | Appliaction: | Pump |
MOQ: | 1 set | Transport package: | Carton or wooden case |
HS code: | 8484200090 | Origin: | Zhangjiagang,China |
Combined Materials :
Rotary face material： | SSIC | Stationary face material： | CAR |
Spring material: | SS316 | Secondary seal: | Aflas |
Metal parts: | SS316 | Other: |

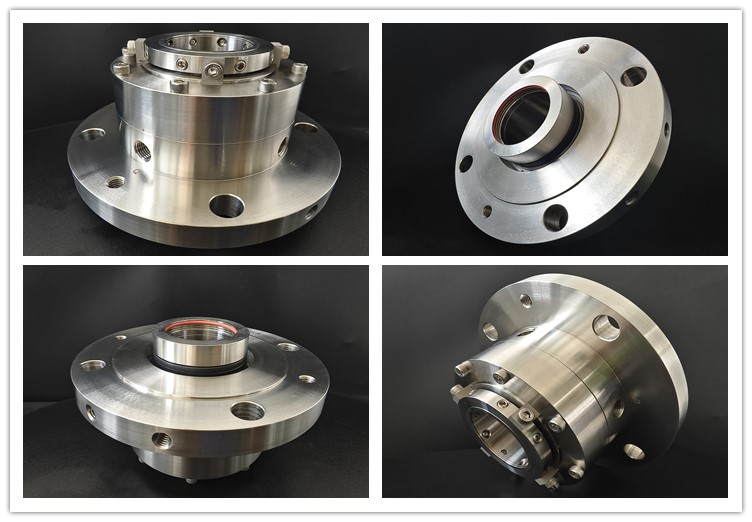

Production Description
1. Feature
- Single spring structure is simple and adaptable to the environment
- The positioning of the fastening screw is simple and reliable, and easy to install
- Corrosion resistant design with dedicated corrosion-resistant seals
2. Material
We can provide materials not mentioned above to meet the requirements of different occasions. If needed, please contact Asino company
3. Aplications
Oil and gas, chemical, metallurgical, pharmaceutical, food, water treatment
4. Background
The mechanical seal single spring does not mean that it can be used immediately. There are several essential checks before installation:
a. Verification and validation: Firstly, confirm that the model, specifications, material, and equipment working conditions of the mechanical seal single spring are completely matched. Secondly, check whether there are scratches or broken edges on the sealing surfaces of the dynamic and static rings, and whether the auxiliary sealing ring (O-ring) is aging or deformed.
b. Check equipment accuracy: Measure the radial runout, axial displacement, and perpendicularity of the pump shaft or sleeve, as well as the sealing chamber, to ensure compliance with the form and position tolerance requirements for sealing installation. For mechanical seal single spring the axial displacement is generally required to not exceed ± 0.5mm, otherwise it will cause unstable spring pressure, leading to leakage or abnormal wear of the end face.
c. Strictly observe the positioning clamps: It is absolutely forbidden to remove the transportation positioning clamps in advance. This clamp is used to secure the dynamic ring component and maintain the preset spring compression before installation. Early dismantling can lead to inaccurate compression and leakage upon startup.
Company Profile
Shipping Package
Question 1: Are you a factory or a trade company?
Asinoseal : We are a factory with 3000㎡area with over 40 workers.
Question 2: Where is your factory located? How can I go there?
Asinoseal: Our factory is located in Zhangjiagang City,Suzhou, near Shanghai .
Question 3 How can I trust your quality?
Asinoseal: Our company passed ISO9001:2008,and strictly follow this standard,we have strict QC from raw material QC to QC before shipping to ensure our quality. Quality lists always first in our company.
Question 4: When can I get my order after placing it?
Asinoseal: For stock one,3-7 days, non-standard one 30-35 days
Question 5: What's payment term?
Asinoseal: For first cooperation,it has to be 100% before production,but for long-term cooperation,it could be adjusted
Question 6: Can you make mechanical seals according to our drawing?
Asinoseal: Absolutely yes,that's our advantage
Question 7: What's your company's advantage product?
Asinoseal : Agitator seals,cartridge seals and metal bellow seals,we always have good price and quality
