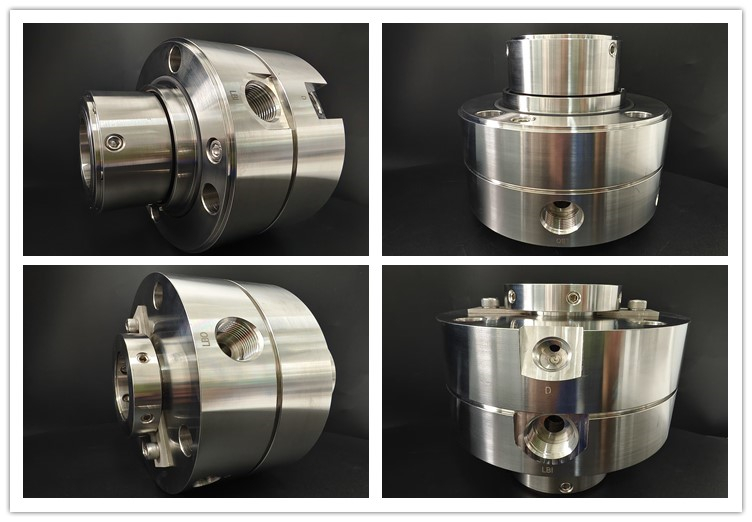

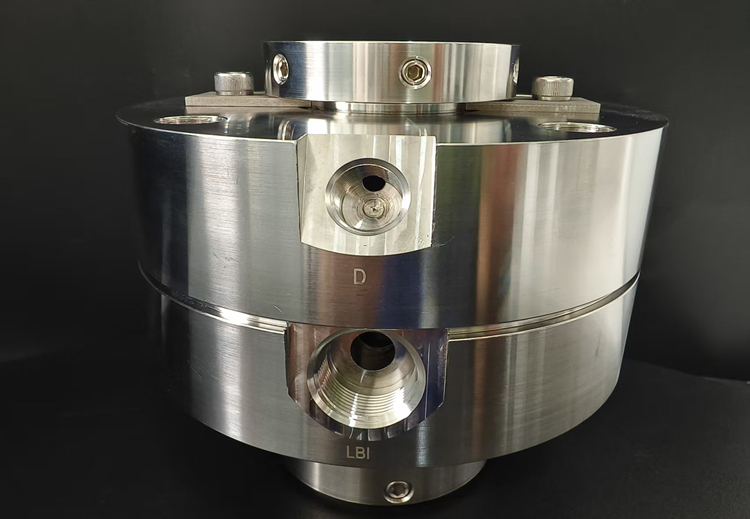

AS-C536cartridge seal is customized doubleseal with multiple spring that made as per client drawing.
Basic information：
Model: | AS-C536 | Size： | 49.5mm |
Structure: | Multiplespring | Type： | Doubleseal |
Pressure： | Medium pressure mechanical seal | Speed： | General Speed Mechanical Seal |
Temperature: | HighTemperature Mechanical Seal | Standard: | Standard |
Balance: | Balance | Appliaction: | Pump |
MOQ: | 1 set | Transport package: | Carton or wooden case |
HS code: | 8484200090 | Origin: | Zhangjiagang,China |
Combined Materials :
Rotary face material： | CAR | Stationary face material： | SIC |
Spring material: | Hast-C | Secondary seal: | VITON |
Metal parts: | SS316 | Other: |
Production Description:
1. Feature
- Multi spring compensation performance is good, and the end face load is uniform
- Composite transmission has lower friction damping and more uniform transmission force
- The positioning and installation of the fastening screw are simple and easy to adjust
2. Material
We can provide materials not mentioned above to meet the requirements of different occasions. If needed, please contact Asino company
3. Aplications
Oil and gas, chemical, metallurgical, pharmaceutical, food, water treatment
4. Background
How to choose the types of seals in mechanical
There is no universal formula for the selection of mechanical seals. The core is to match and weigh the characteristics of different types of seals in mechanical based on your specific working conditions (pressure, temperature, speed, medium characteristics) and compare them.
Quick Reference Table for Selection
Key points of sealing types prioritized for working conditions
Low pressure (≤ 0.5-0.8MPa) non-equilibrium type has a simple structure and low cost.
Medium high pressure (>0.5-0.8MPa) balanced type reduces end face wear and is suitable for high pressure.
High speed (line speed>25m/s) static spring prevents deformation of the spring under high centrifugal force.
High temperature (≥ 150 ℃) metal corrugated pipe seal has no rubber aging problem and good heat resistance compensation.
Strong corrosive external/PTFE corrugated pipe sealing key metal parts do not come into contact with the medium.
Containing particles and easily crystallized"hard to hard"friction pair+large spring to improve wear resistance and prevent spring blockage.
High risk and highly toxic dual end sealing (with isolation liquid) provides dual protection to ensure zero leakage.
Company Profile
Shipping Package
Asinoseal : We are a factory with 3000㎡area with over 40 workers.
Question 2: Where is your factory located? How can I go there?
Asinoseal: Our factory is located in Zhangjiagang City,Suzhou, near Shanghai .
Question 3 How can I trust your quality?
Asinoseal: Our company passed ISO9001:2008,and strictly follow this standard,we have strict QC from raw material QC to QC before shipping to ensure our quality. Quality lists always first in our company.
Question 4: When can I get my order after placing it?
Asinoseal: For stock one,3-7 days, non-standard one 30-35 days
Question 5: What's payment term?
Asinoseal: For first cooperation,it has to be 100% before production,but for long-term cooperation,it could be adjusted
Question 6: Can you make mechanical seals according to our drawing?
Asinoseal: Absolutely yes,that's our advantage
Question 7: What's your company's advantage product?
Asinoseal : Agitator seals,cartridge seals and metal bellow seals,we always have good price and quality
