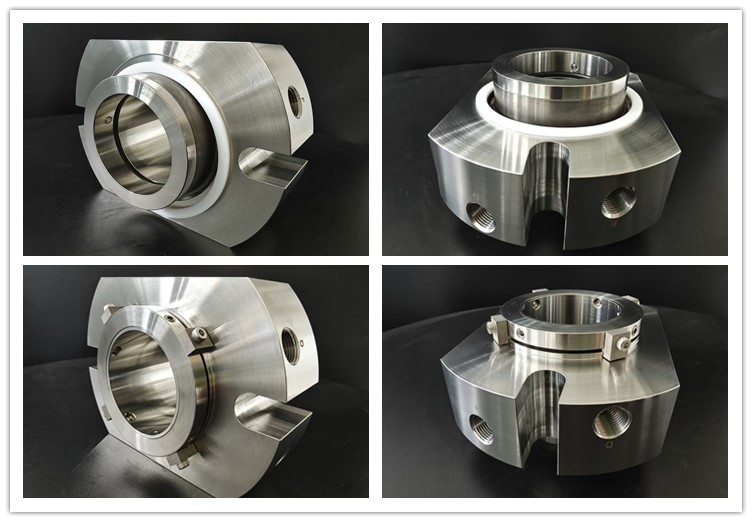

AS-C514 Single Cartridge Seal

Basic information：

Combined Materials :

Production Description

1. Feature

•  Standard design
• The multi spring compensation performance is good, and the end face load is uniform
• Composite transmission has lower friction damping and more uniform transmission force
•  The positioning and installation of the fastening screw are simple and easy to adjust

2. Material

We can provide materials not mentioned above to meet the requirements of different occasions. If needed, please contact Asino company

3. Aplications

Oil and gas, chemical, metallurgical, pharmaceutical,water treatment

4.Background:

Integrated mechanical sealing is an advanced form of sealing that pre-integrates, pre-assembles and pre-tests traditional distributed sealing components as a whole module, it is not simply stacking parts, but by precision machining before the factory to complete all key parameters (such as spring compression, end surface parallelism, sealing surface beat ≤0.05mm) of calibration and pressure testing, to fundamentally avoid the leakage risk caused by on-site installation errors.


a. . Core composition (7 essential components)
A complete cartridge mechanical seal assembly consists of the following inseparable integrated units:
Component Category
Main seal Auxiliary ring (rotating ring), static ring (fixed ring)
Elastic loading system Spring assembly (multi-spring or corrugated tube)
Auxiliary sealing system O-ring, V-ring, static sealing pad, etc.
Structural bearings Shaft sleeves, press covers, assembly housings
Positioning & Drive Parts Positioning Block, Anti-Retail, Drive Ring
Additional notes: The component may also integrate optional function modules such as cooling/rinsing channels, bearings, etc.


b.  Structural features and technical advantages
Minimal installation: no need to measure the length of the sealing work, no need to adjust the spring compression, no need to grind the sealing surface in the field, only need to"set → fastening bolt → remove the locator"three steps can be commissioned;
Reliability leap: before leaving the factory has completed the whole machine test pressure and dynamic simulation test, start or seal, eliminate the"first operating leak";
Maintenance-friendly: the overall replacement replaces local maintenance, cleaning inspection does not need to remove the pump, directly extract cartridge mechanical seal assembly;
Strong adaptability: balanced design (spring force to compensate fluid pressure), internal flow structure, customizable rinsing scheme, suitable for -40 ℃ ~ 400 ℃, ≤4MPa, containing particles / corrosive media and other harsh scenarios.


c. Conclusions/overview
Integrated mechanical sealing components are factory-complete precision cartridge mechanical seal assembly and performance verification"sealing function package", it integrates the dynamic ring, static ring, spring, auxiliary seal, shaft sleeve, press cover and positioning mechanism seven core components into an inseparable whole module, to eliminate man-made installation errors, ensure ready-to-use reliability, greatly reduce the entire lifecycle maintenance costs as the fundamental goal.

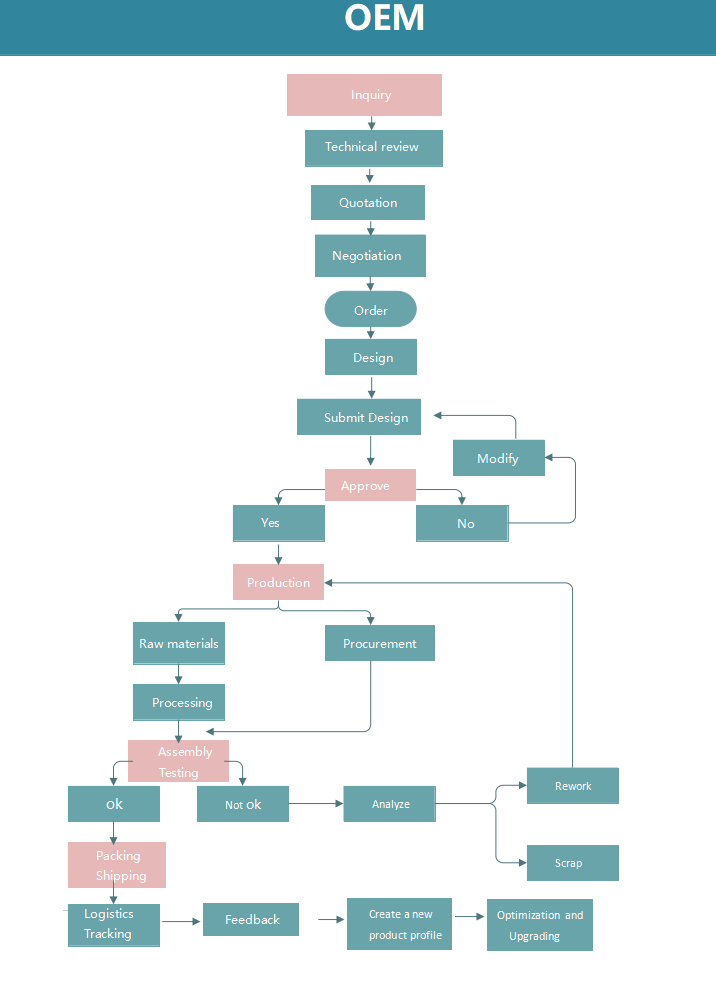

OEM service

Company Profile

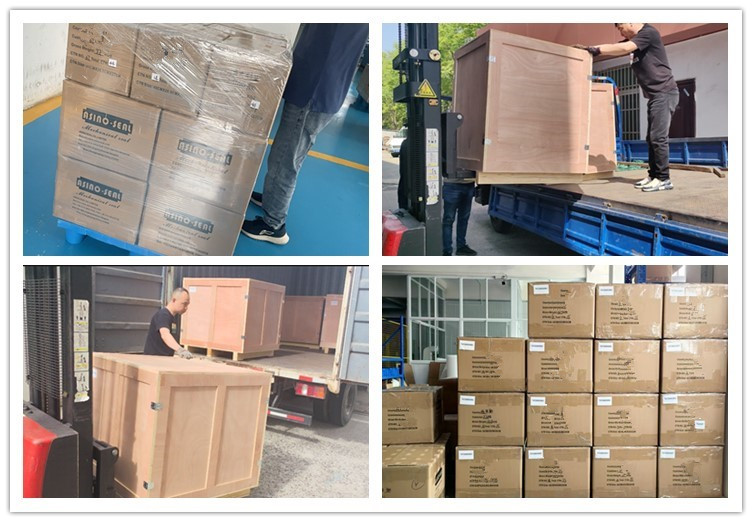

Shipping Package
