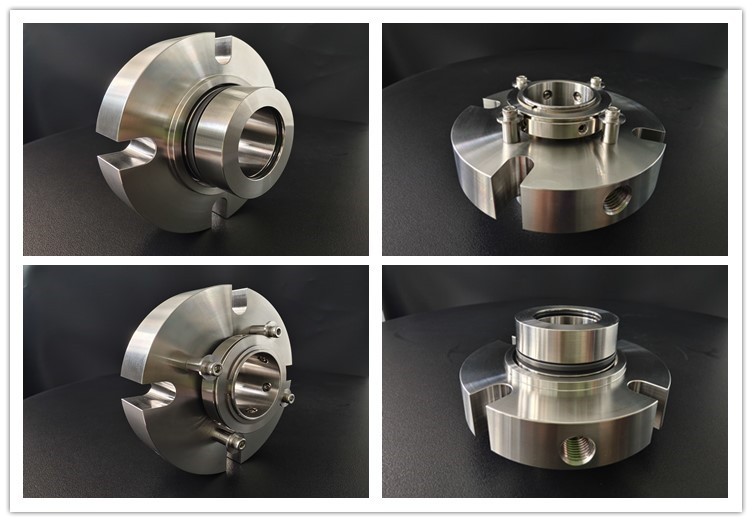

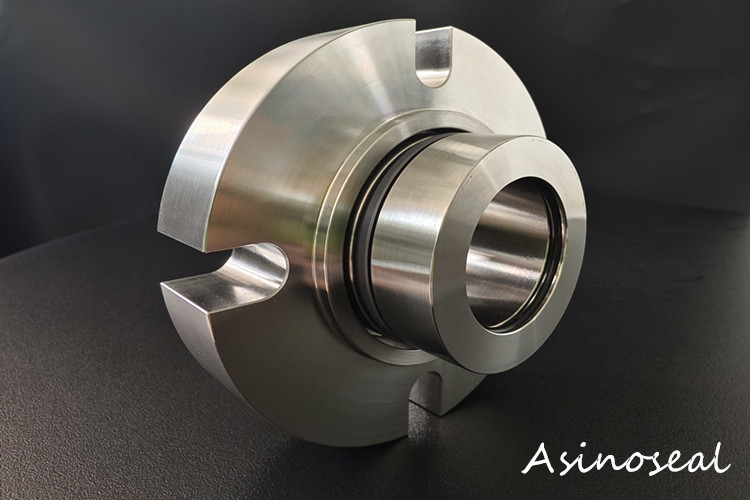

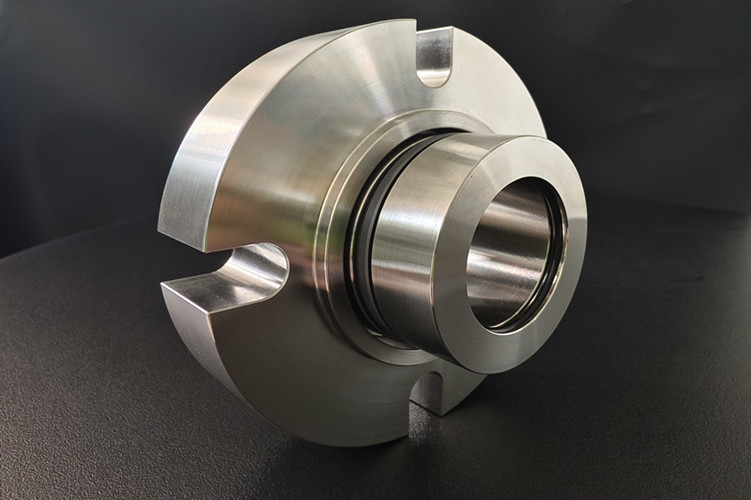

AS-C489 Singel Cartridge Seal





How to check the pump seal types
Identification method of pump seal types
To check the pump seal types, a comprehensive judgment can be made through the following methods, combined with equipment data, structural observation, and technical parameter analysis:

1. Search based on product information
Refer to the manual: The product manual or technical manual of the pump usually clearly indicate pump seal types, such as"mechanical seals","packing seal", etc., which is the most direct way.
Viewing nameplate parameters: Some pump nameplates or body markings may contain sealing related information, such as the model with"M"(Mechanical Seals) representing mechanical seals and"G"(Gland Packing) representing packing seal.

2. Judging by structural features
Mechanical seal: There is an independent sealing chamber at the connection between the pump shaft and the pump body, usually with components such as springs, moving rings, and stationary rings. The structure is relatively compact, and the appearance is mostly circular components made of metal or ceramic materials.
Packing seal: There are obvious packing glands and compression bolts at the shaft seal area, and flexible packing materials (such as graphite, asbestos, etc.) filled in the box can be observed. The structure is relatively simple, and the gland needs to be tightened regularly during maintenance.
Magnetic seal: There is no direct shaft penetration structure, and there is an isolation sleeve between the pump body and the motor. It is transmitted through magnetic coupling, and there is no obvious sealing component on the outside. It is suitable for occasions without leakage requirements.
Other types: O-ring seals (commonly used in static sealing areas such as flange connections), gasket seals (used for pump body joint surfaces), etc., can be judged by observing the shape and installation position of the seals.



3. Inference based on application scenarios
High pressure/corrosive media: Chemical pumps and other equipment commonly used in high-pressure or highly corrosive environments often use mechanical seals or magnetic seals to ensure sealability.
Low pressure/room temperature conditions: Ordinary water pumps may use packing seals, which are cost-effective and easy to maintain.
No leakage requirement: For industries such as food and medicine, magnetic seals or dry gas seals are preferred.

4. Consult professionals or manufacturers
If the above methods still cannot determine, the manufacturer or supplier of the pump can be contacted to provide information such as equipment model and photos, and technical personnel can assist in identifying 1.
Comparison of Typical Characteristics of Different Sealing Types
Pump seal types , structural characteristics, applicable scenarios, identification key points
The mechanical seals includes a dynamic ring, a static ring, and a spring. The independent sealing chamber is equipped with a metal/ceramic circular component at the shaft end for high-pressure, high-temperature, and highly corrosive media
Packing seal stuffing box+gland+flexible packing, which needs to be regularly tightened with bolts at the low pressure, room temperature, and non corrosive medium shaft seal of the packing gland
Magnetic seal without shaft penetration structure, magnetic coupling transmission with no leakage requirements, high-purity medium pump body and motor with isolation sleeve
O-ring sealing rubber ring embedded in groove, with a circular cross-section for static sealing (flange, joint) and elastic circular sealing ring
Through the above methods, the pump seal types can be systematically determined to ensure the accuracy of equipment maintenance and selection.If you want to view other products,pls see this website & www.aefluidtec.com/
