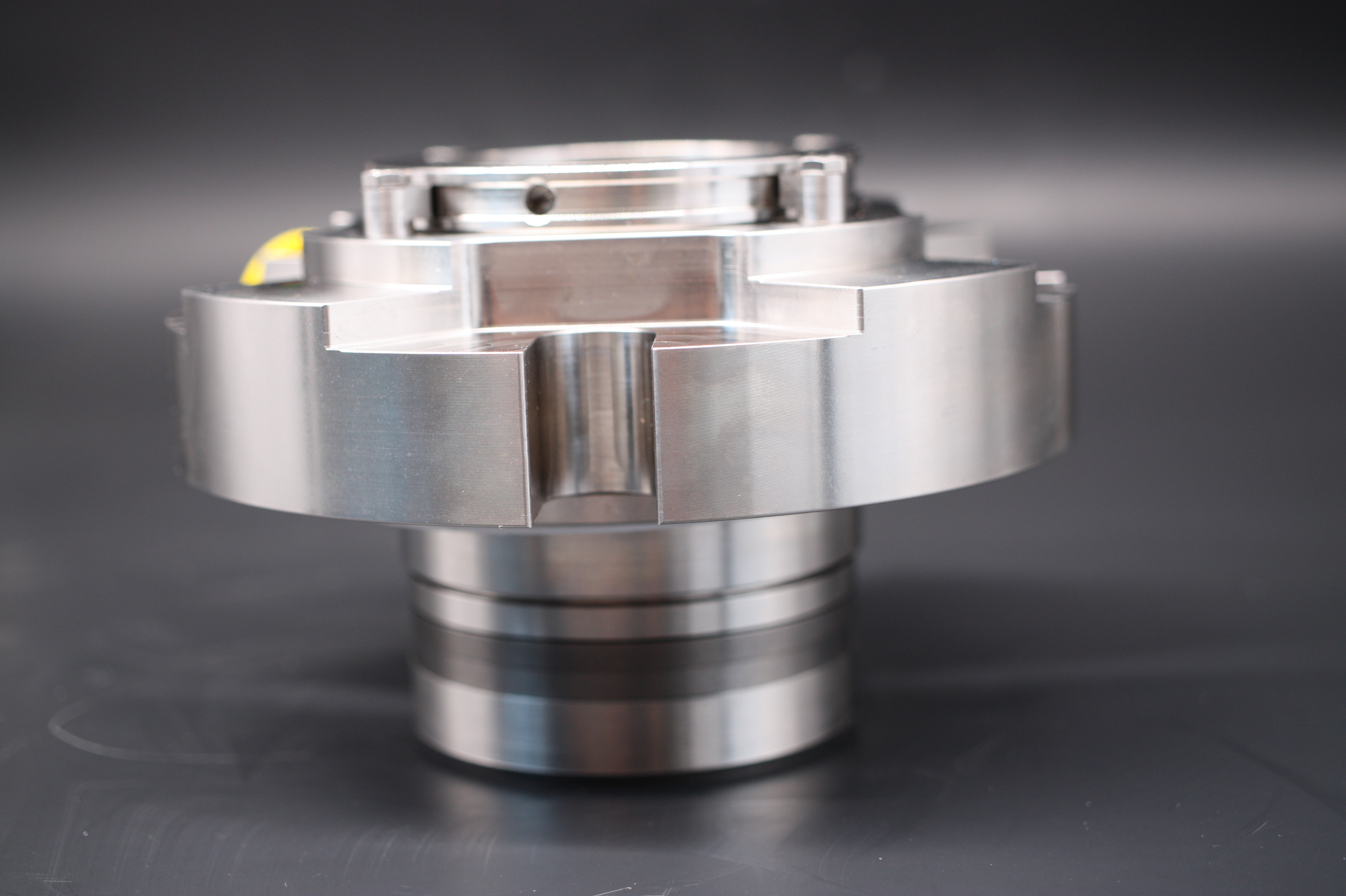

AS-CHS20 dual cartridge mechanical seal to replace Chesterton's S20 Cassette Seal

Description：
AS-CHS20 dual cartridge mechanical seal is to replace Chesterton's S20 Cassette Seal.


SUGGESTED OPERATING LIMITS
Sizes:25 mm—120 mm=1.00”—4.75” inch
Pressure:711 mm or 28"Hg Vacuum to 31bar g/450 psig*
17 bar g/250 psig inboard differential *
Temperature:  -55℃—300℃/-67 °F—570 °F
Speed: 25 m/s or 5000 fpm

COMBINED MATERIAL
Rotary Faces: CB/SSC/TC
Stationary Faces: SSC/TC
Elastomers: FKM/EPDM/ FEPM/ FFKM
MetalParts: 316 Stainless Steel/ EN 1.4401
Springs: Alloy C-276/ EN 2.4819



Benefits：
Advanced monolithic face design；
Modular easily-replaced Cassette design；
Concise structure with all wearing parts in a single cassette；
With both good performances and ease of maintenance and repair work；
Tandem seal enduring high pressure with a high-flow internal pump ring promoting heat dissipation
