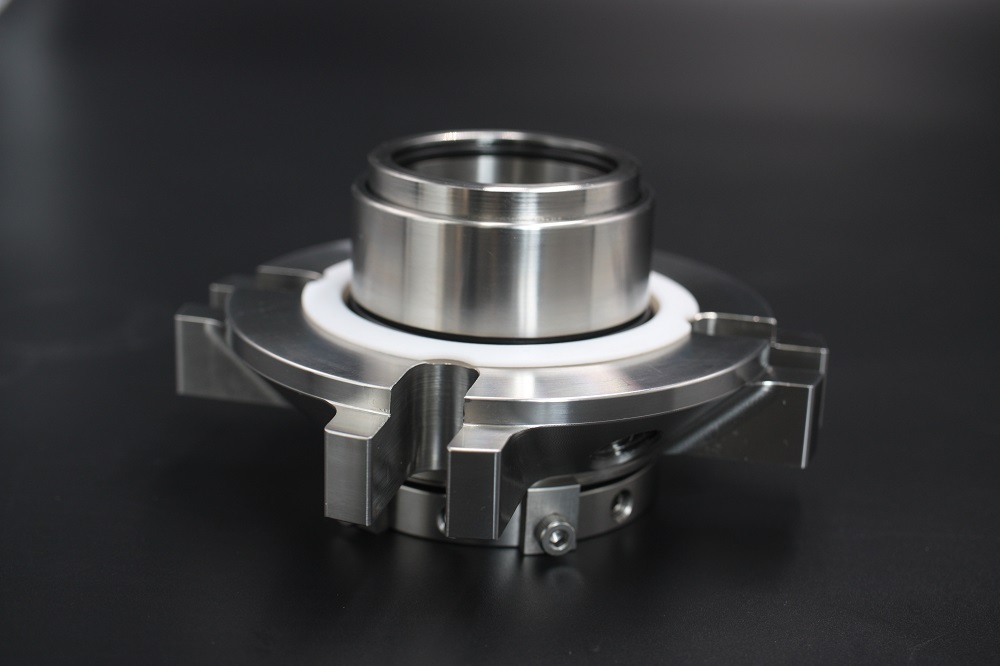

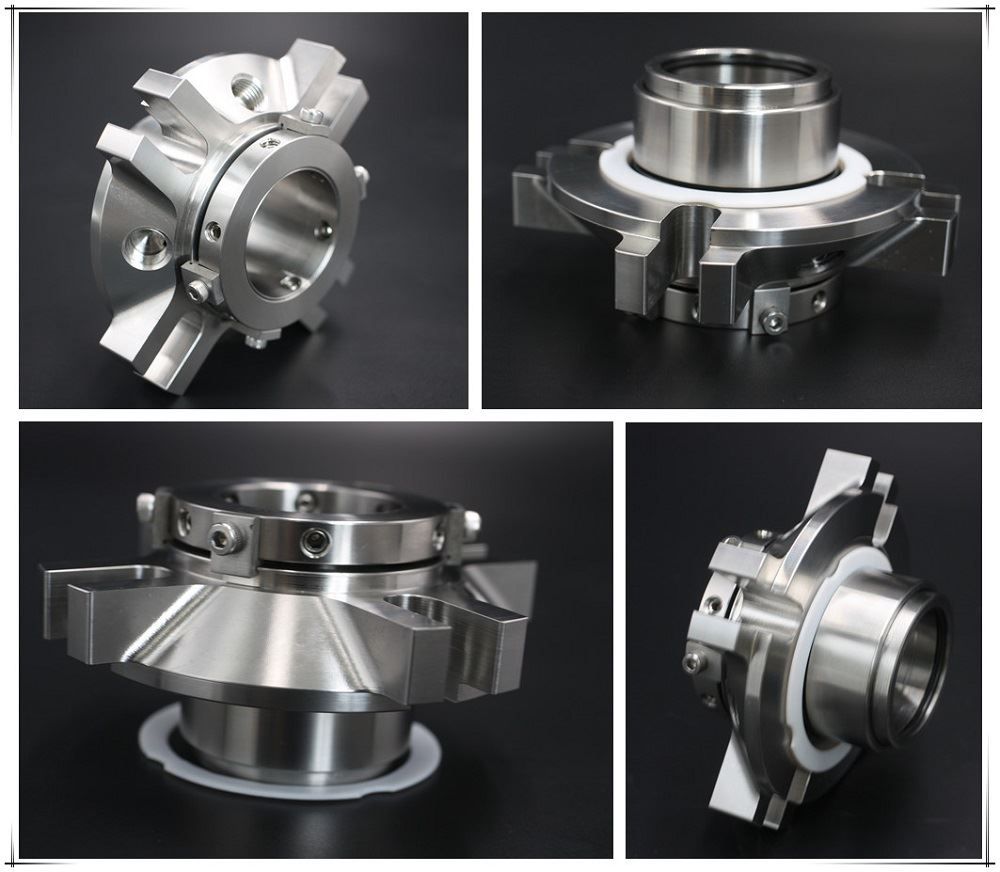

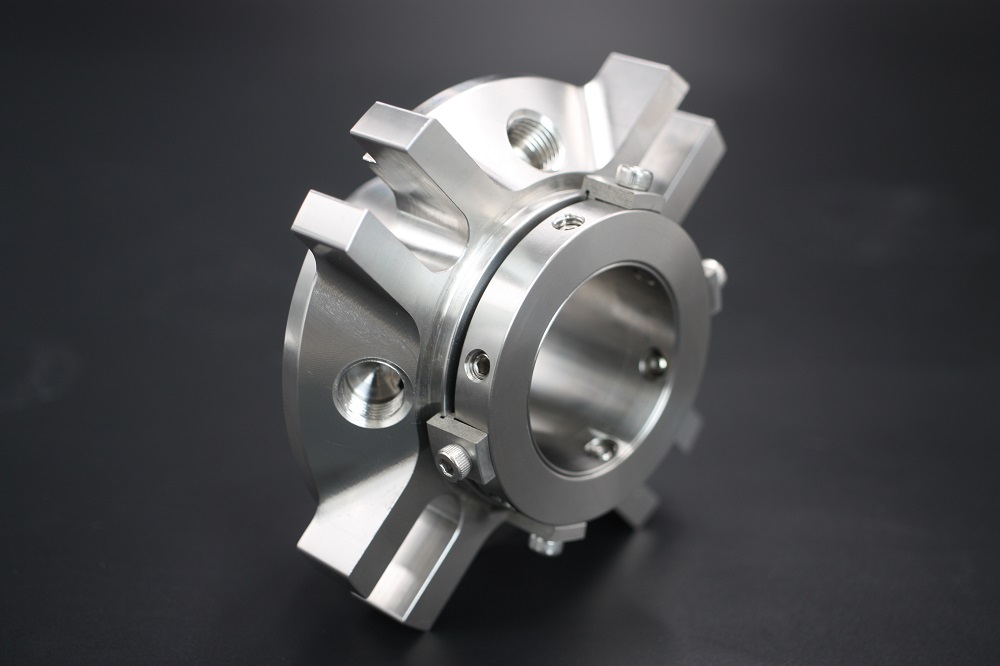

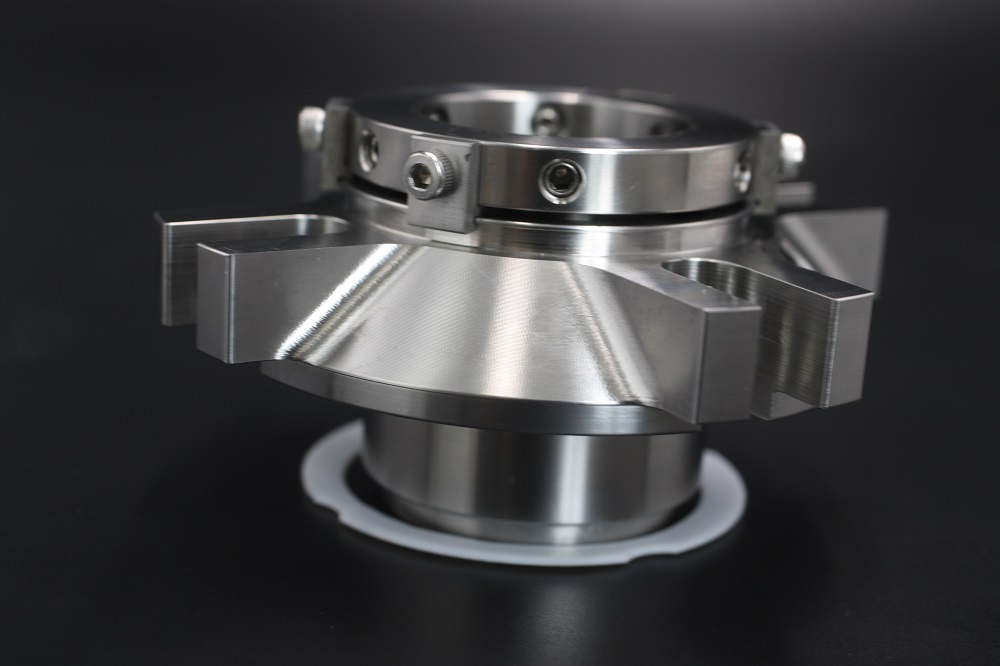

AS-CDSS single cassette seal to replace AES CSSN seal

Description:
Description:
AS-CDSS is single cartridge  mechanical seal  to replace AES CSSN seal.
The AS-CDSS range of cartridge mechanical seals has been designed as high-performance sealing solutions for general applications.

 Suggested Operation Limits
Temperature:-20℃-200℃
Speed:≦16M/S
Pressure:≦1.6Mpa
Size:1”-3.5”

Combined Material
Rotary Face:CAR/SIC/TC
Stat Ring:SIC/TC

Features:
1.Modular cartridge seal face design makes it suitable for general working conditions
2.Standard products are equipped with flushing holes, cooling holes and drainage holes
3.Hydraulically-balanced seal face esign ensures optimum fluid film during process fluctuations and reduces energy consumption
4.Alloy 276 helical coil springs ensure accurate uniform seal face loading throughout seal life
5.Drive screws clamp directly on to shaft or sleeve to minimise drive loss
6.Captured O-ring design prevents extrusion under vacuum conditions

Recommended Application:
1,Process industry
2,Petrochemical industry
3,Chemical industry
4,Pharmaceutical industry


​

Background Knowledge：
An important indicator of O-ring design——working compression rate
If working compression rate is too large,although sealing is reliable, friction and deformation will increase, and excessive wear and permanent deformation are prone to occur. Especially as auxiliary sealing element of compensation ring, O ring’s working compression rate must be suitable. If it is too large, which will cause the compensation ring to be unable to float, specific pressure of end faces of the mechanical seal will decrease, thus the mechanical seal will fail. However, if too small, the O-ring seal will be unreliable. Therefore,working compression rate is generally selected from 12% to 18%.
