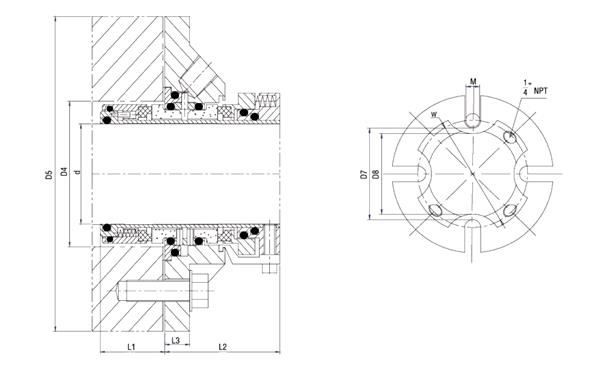

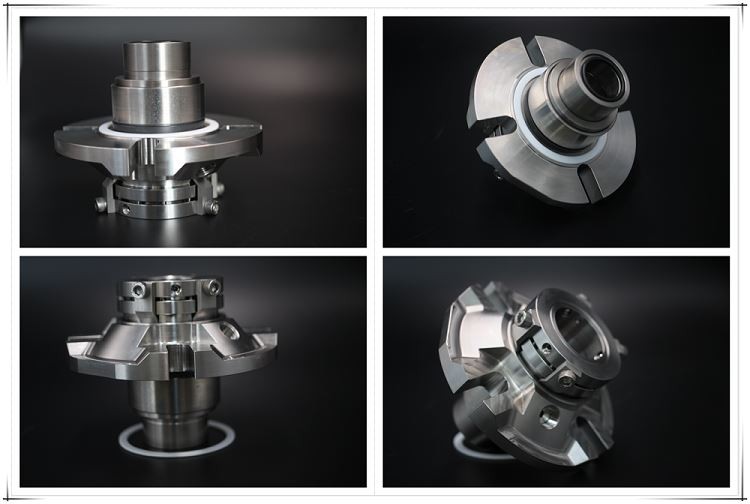

AS-CDSA to replace AES CDSA double cartridge seal

Description：
The type can replace AES CDSA double cartridge seal. It  is ideal for hazardous process fluids.

Suggested Operation Limits
Temperature:-20℃-220℃
Speed:≦16M/S
Pressure:≦2.5Mpa

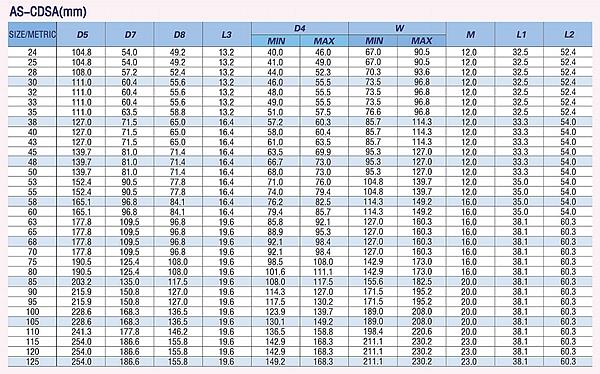

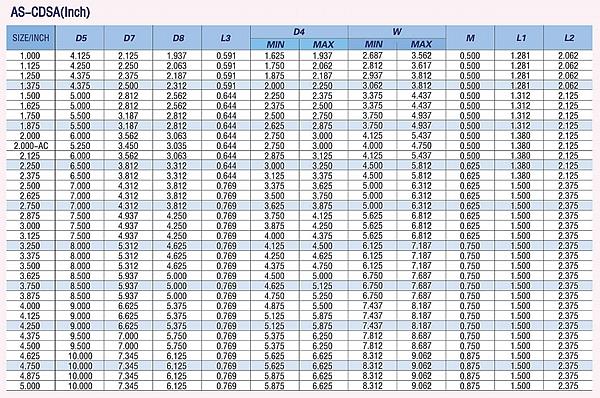

Size:24mm-125mm/1”-5”

Combined Material
Rotary Face:CAR/SIC/TC
Stat Ring:SIC//TC

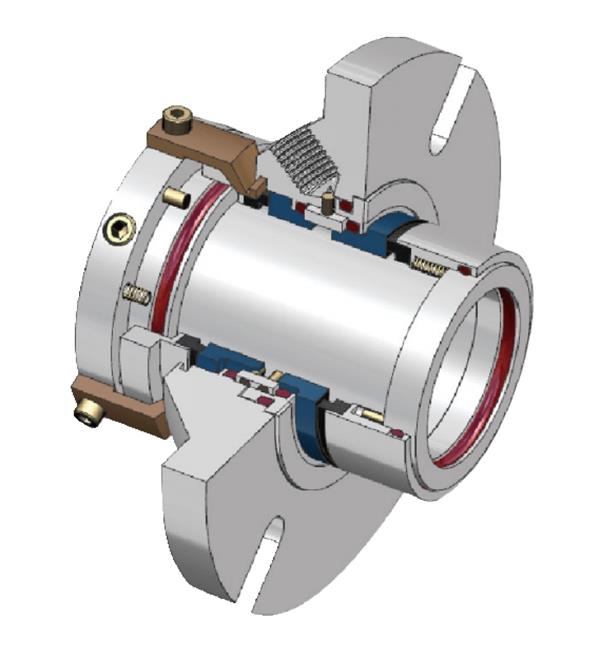

Features:
1.Self-aligning stationary seal-faces with radial contacting pin drive which minimizes damage in start/ stop applications and viscous fluids
2.Hydraulically balanced seal-face technology which can reduce power consumption
3.Non-shaft-fretting sleeve elastomer and positive set screw shaft drive
4.Independant seal face design to enhance safe containment of process fluid in the case of damage to any individual sealing element
5.Multiple spring seal face loading

Recommended Applications:
1.Process Pumps
2.Other Rotating Equipment

Background Knowledge：

Overview of cartridge mechanical seals：

Shaft sleeve and gland are indispensable parts of cartridge mechanical seal, through which all mechanical seal parts can be combined. Gland can be connected with the body. When temperature of material is too high or too low and it needs to be flushed, gland can be processed to have flushing holes to meet the needs of the process.Set screw is also very important. It is the main part to overcome friction between rotary face and stationary seat. When the mechanical seal needs to be flushed, you can choose 318A gland with flushing hole, because there are four gland bolts, and meet the requirements of API standards.

Cartridge mechanical seal is assembled in clean environment provided by the seal manufacturer. Skilled and correct combination can ensure assembly quality; reasonable spring compression and rubber O-ring deformation can ensure reliability of the seal;The overall air tightness test  carried out before leaving the factory ensures reliability of the seal.
