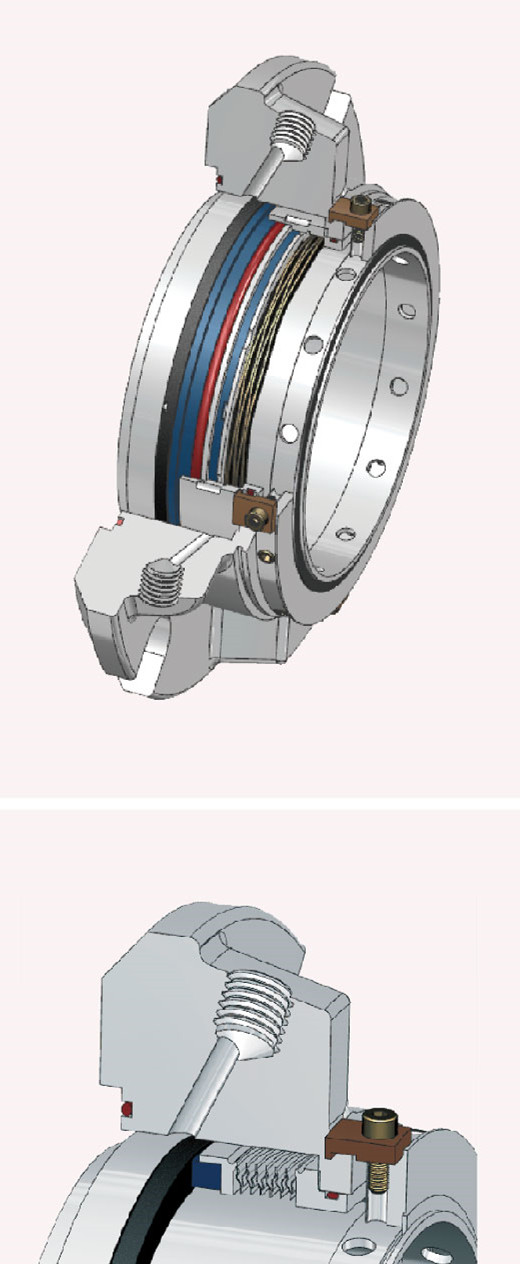

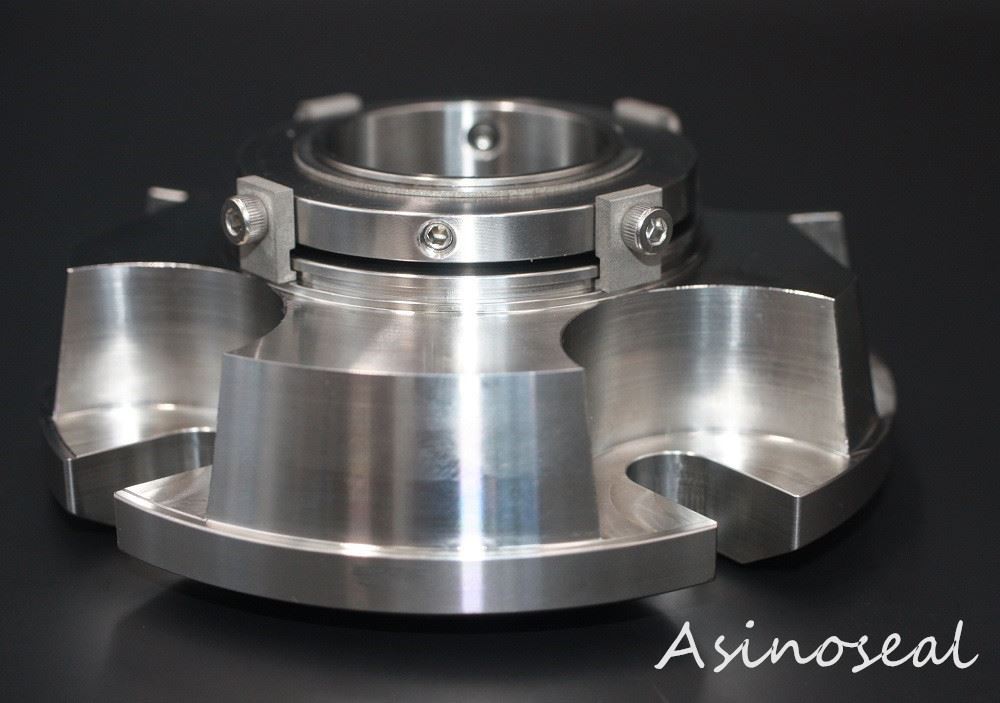

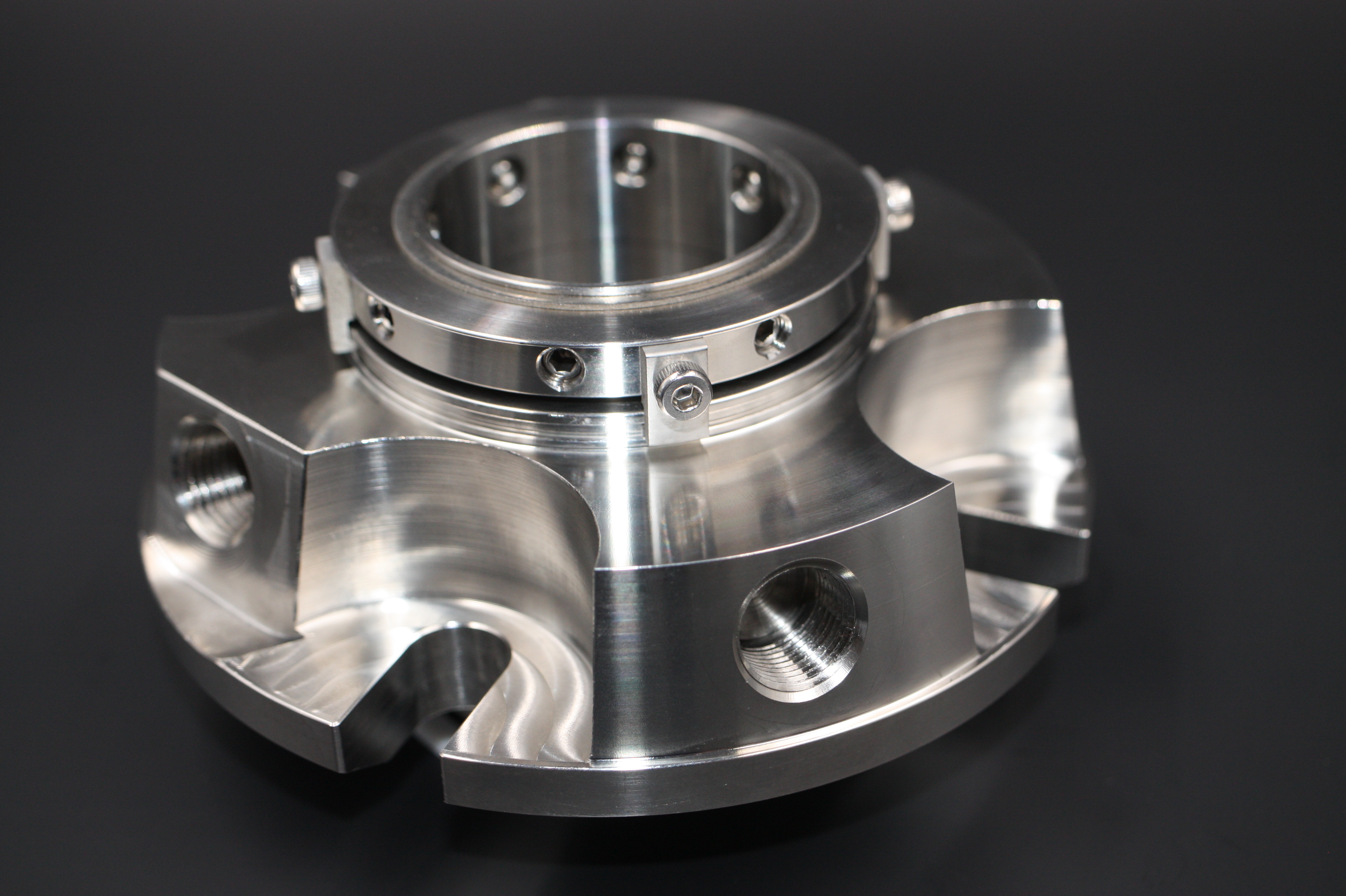

AS-C5600S single cartridge mechanical seal to replace Johncrane type 5610 seal

Suggested Operation Limits
Temperature:-30℃-205℃
Speed:≦25M/S
Pressure:≦2.1Mpa

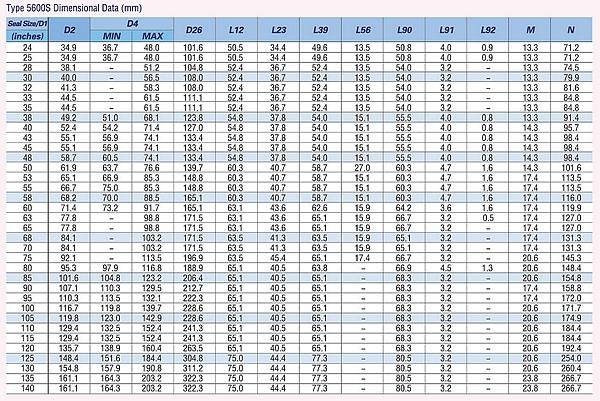

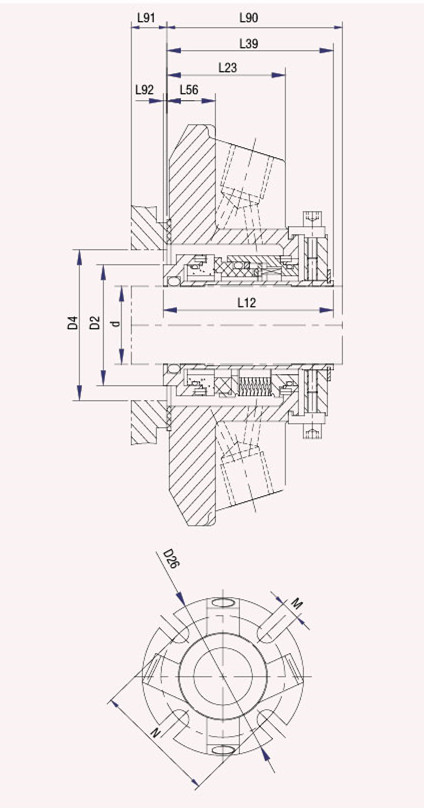

Size:24mm-140mm/1”-5.5”


Combined Material
Rotary Face:SIC/TC
Stat Ring:CAR/SIC/TC

Features:
1.A common seal head/mating ring set, utilized throughout all versions, is reversible to allow rotating seat/mating ring or rotating seal head operation, and is interchangeable with metal bellows seal heads.
2.Reversible seal head.
3.Optimized primary ring design for greater reliability.
4.Non-clogging wave spring outside the product.


Recommended Applications:
1. Process Pumps
2. Other Rotating Equipment



Background Knowledge：

Two methods about developing  mechanical sealing materials

In the development of mechanical sealing materials, the methods of spraying new thermosetting plastics and non-ferrous Jinpu powder can also be used, which are in line with the structural criteria of ideal mechanical sealing materials. This kind of covering layer can be used to seal the casing of oil and gas drilling. The drilling depth must reach several thousand meters or even tens of thousands of meters. The task of the drilling and production machinery is to improve the tightness of the connection. The composite polyethylene-zinc surface layer can meet this sealing requirement. From a sealing point of view, a near-ideal cladding structure can be formed. The tantalum surface layer that forms the blended structure can be controlled by the phase state and the particle size of the components. It can be a coating of a multiphase system or a metal-organic compound coating.
