Description：

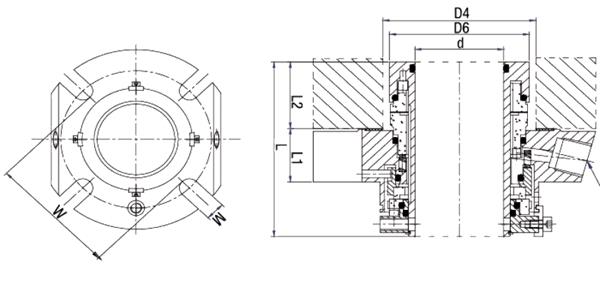

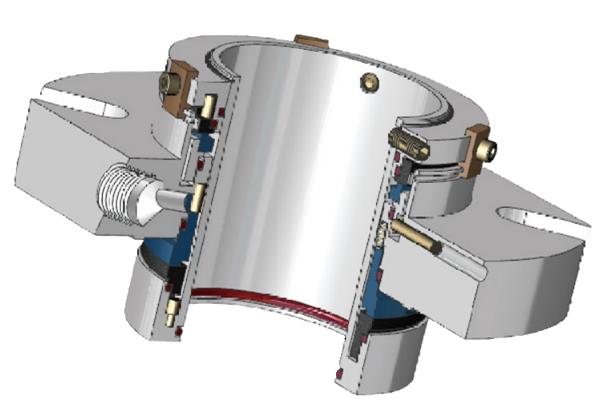

AS-C4600D double cartridge mechanical seal is to replace Johncrane 4620 dual cassette seal
Suggested Operation Limits
Temperature:-30℃-205℃
Speed:≦20M/S
Pressure:≦1.5Mpa

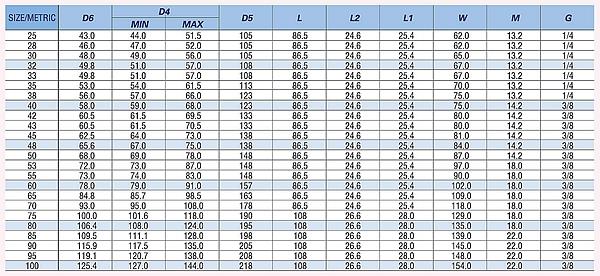

Size:24mm-70mm/1”-2.750”
Combined Material
Rotary Face:CAR/SIC/TC
Stat Ring:SIC/TC
Features:
Dual seal arrangement — incorporates an elastomer O-ring as the dynamic secondary sealing member
Inboard primary and mating ring reverse balance design allows for ID or OD pressurization, permitting the dual seal to operate as an unpressurized tandem or pressurized double seal
Pumping ring is standard which means no extra cost
No extra inventory to carry
Flow-optimized design with integral pumping ring arrangement
Tangential piping ports
Increased cooling flow and face lubrication, greatly extending seal life
Cartridge design with factory-preset and pressure-tested assembly
The only double cartridge design with a centering ring eliminating need for external setting clips
Eliminates potential assembly and installation errors
Recommended Applications:
Process pumps
Mixer and agitators
Other rotating equipment
AS-C4600D double cartridge mechanical seal is to replace Johncrane 4620 dual cassette seal
Suggested Operation Limits
Temperature:-30℃-205℃
Speed:≦20M/S
Pressure:≦1.5Mpa
Size:24mm-70mm/1”-2.750”
Combined Material
Rotary Face:CAR/SIC/TC
Stat Ring:SIC/TC
Features:
Dual seal arrangement — incorporates an elastomer O-ring as the dynamic secondary sealing member
Inboard primary and mating ring reverse balance design allows for ID or OD pressurization, permitting the dual seal to operate as an unpressurized tandem or pressurized double seal
Pumping ring is standard which means no extra cost
No extra inventory to carry
Flow-optimized design with integral pumping ring arrangement
Tangential piping ports
Increased cooling flow and face lubrication, greatly extending seal life
Cartridge design with factory-preset and pressure-tested assembly
The only double cartridge design with a centering ring eliminating need for external setting clips
Eliminates potential assembly and installation errors
Recommended Applications:
Process pumps
Mixer and agitators
Other rotating equipment
Background Knowledge：
An important indicator of O-ring design——extrusion gapWhen determining extrusion gap value, it is necessary to consider factors such as fit dimensional tolerance of structural parts and thermal expansion coefficients of materials. Generally, extrusion gap can be determined according to operating temperature range of the equipment and thermal expansion coefficients of different materials. When extrusion gap is so large that the sealing ring is extruded,this problem can be solved by increasing hardness of sealing ring material and/or setting support ring (note the relative relationship between the installation position of the support ring and direction of pressure the sealing ring bears).
