AS-C26S

Model NO.: AS-C26S
Country of Origin: Zhangjiagang, Suzhou, China

Quantity:

Product Description

Description：

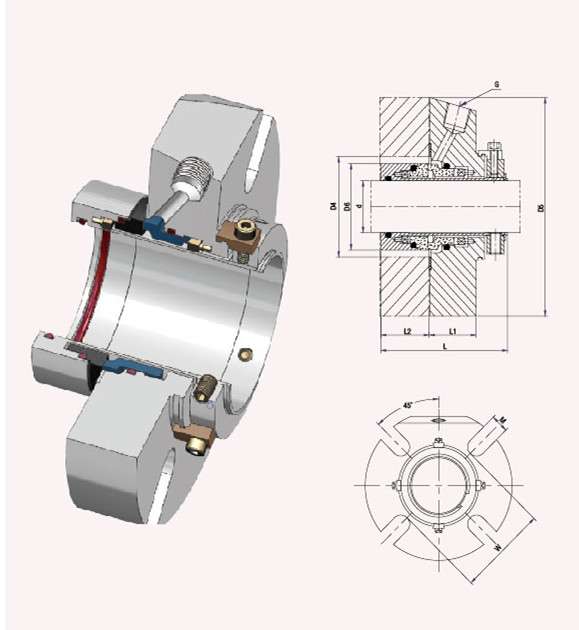

This type is to replace Cartex-Sn cartridge seal

Suggested Operation Limits：
Temperature:-40℃-220℃
Speed:≦15M/S
Pressure:≦2.5Mpa

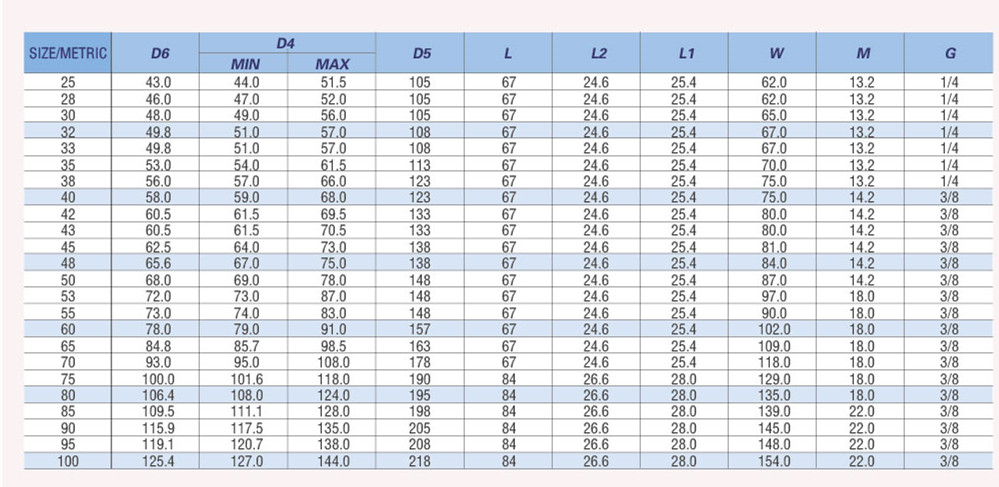

Size:24mm-140mm/1”-5.5”

Combined Material：
Rotary Face:SIC/TC
Stat Ring:CAR/SIC/TC

Features：
1.Single seal
2.Cartridge seal
3.Balanced seal
4.Independent of direction of rotation
5.Single seals without connections (-SNO), with flush (-SN) and with quench combined with lip seal (-QN) or throttle ring (-TN)

Advantages：
1.Ideal for standardizations
2.Universal applicable for packings conversions, retrofits or original equipment
3.No damage of the shaft by dynamically loaded O-Ring
4.Extended service life
5.Straightforward and easy installation due to pre-assembled unit

Recommended Application：
1.Process industry
2.Petrochemical industry
3.Chemical industry
4.Pharmaceutical industry
5.Power plant technology
6.Pulp and paper industry
7.Water and waste water technology
8.Mining industry
9.Food and beverage industry
10.Sugar industry
11.Universally applicable
12.Centrifugal pumps

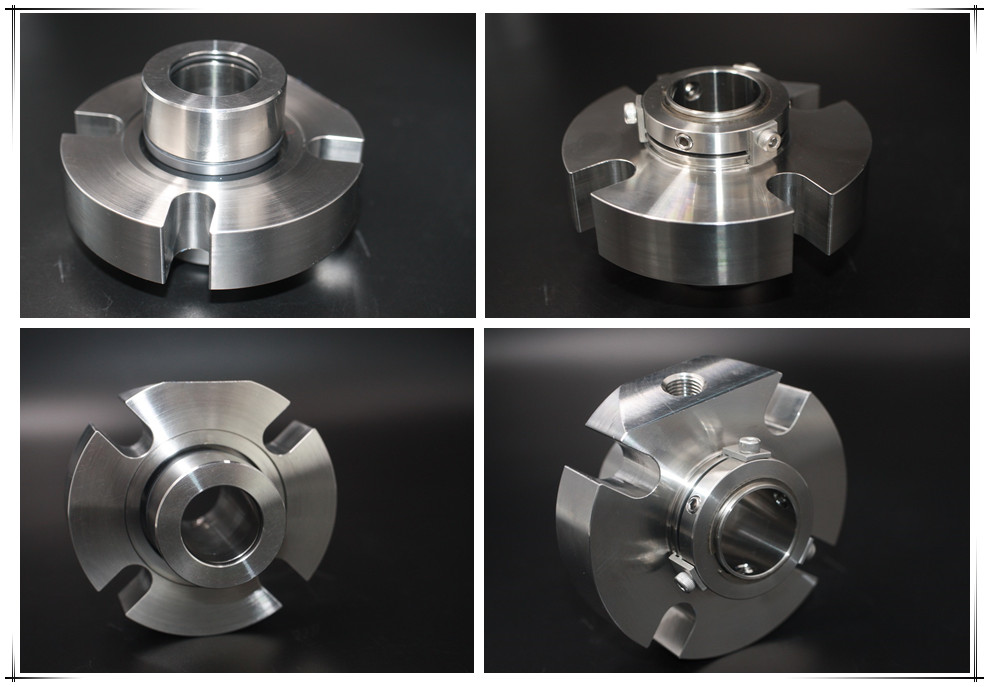

cartridge seal,mechanical seal ,cartridge mechanical seal,single cartridge mechanical seal, single seal,single cartridge seal,single cassette seal，cassette seal，cassette mechanical seal

Background Knowledge:
What characteristics do Rubber O-rings of mechanical seals have :
(1) They can be applied in static or various motion conditions.
(2) A single O-ring can be used to seal the bidirectional medium under pressure.
(3) Any part on the section of the O-ring can be used as a sealing working surface, that is, a seal can be formed on the outer diameter, inner diameter, end face or any surface.
(4) The movement friction resistance is small, but the starting friction resistance is large.
(5) In addition to the wear on the working surface, the phenomenon of extrusion breakage will occur at high pressure.
(6) The structure is simple, the size is compact, the assembly and disassembly are convenient, and the requirements for filling technology are not high.
(7) The O-ring seal has a wide range of applicable parameters. Pressure: Static condition: 100MPa or more. Exercise conditions: 35MPa. Temperature: about -60~200℃. Shaft diameter: up to 3000mm. Speed: 2~3m/s (rotational motion).
