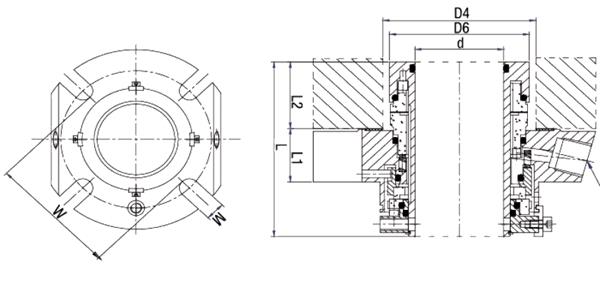

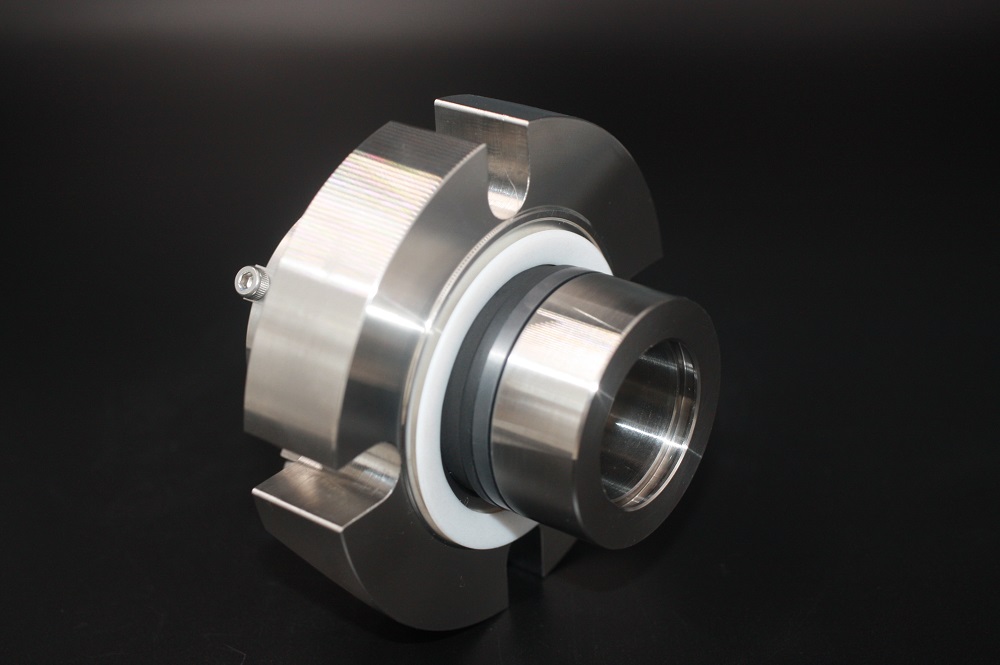

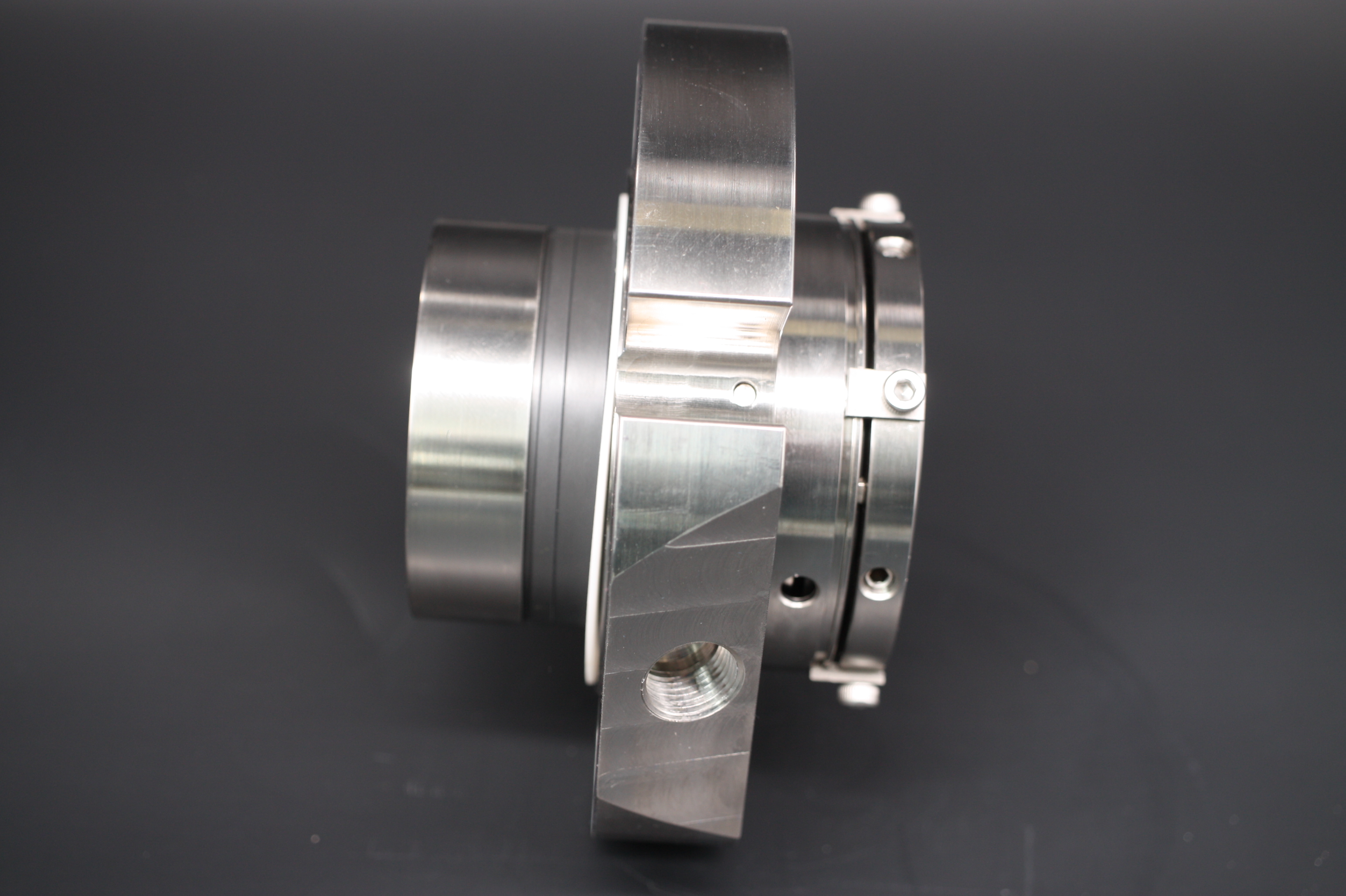

AS-C26D Dual Cartridge Mechanical Seal To Replace Burgmann Cartex DN Double Seal

AS-C26D Dual Cartridge Mechanical Seal To Replace Burgmann Cartex DN Double Seal

Model NO.: AS-C26D

Quantity:

Product Description

Description：
The type seal can replace Burgmann Cartex-Dn cartridge seal.

Suggested Operation Limits
Temperature:-40℃-220℃
Speed:≦15M/S
Pressure:≦1.6Mpa

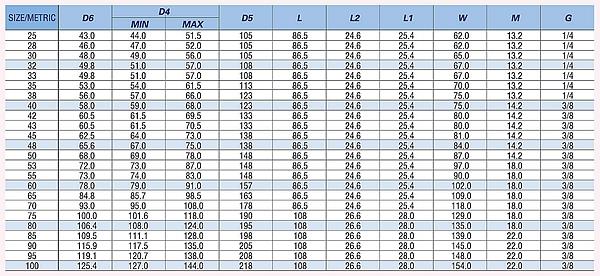

Size:25mm-100mm

Combined Material
Rotary Face:SIC/TC
Stat Ring:CAR/SIC//TC

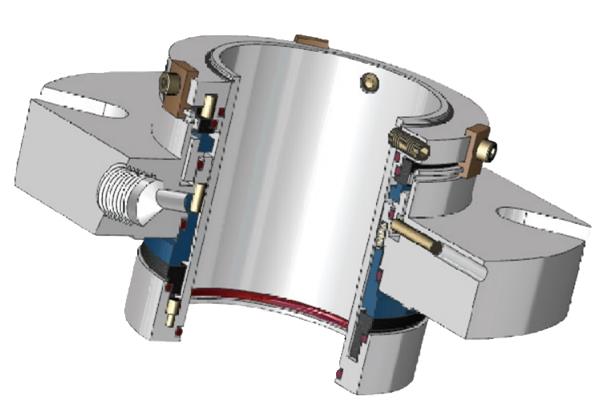

Features:
Dual seal
Cartridge
Balanced
Independent of direction of rotation
Double pressure balanced
Integrated pumping device

Advantages:
Ideal seal for standardizations
Universal applicable for packings conversions, retrofits or OEM
No damage of the shaft by dynamically loaded O-Ring
Extended service life
No damage caused by dirt entered during assembly
Straightforward and easy installation due to pre-assembled unit
Individual adaptation to pump design possible

Recommended Application:
Petrochemical industry
Chemical industry
Pharmaceutical industry
Power plant technology
Pulp and paper industry
Mining industry
Food and beverage industry
Sugar industry
Centrifugal pumps
Eccentric screw pumps

mechanical seal for water pump,mechanical seal pump,double mechanical seal,cartridge seals,fluid sealing

Background Knowledge：
Design principles of O-ring grooves:
1) Determine groove depth and tolerance according to the calculated compression rate to ensure unchanged working compression rate.
2) Determine the groove width according to the cross-sectional area and groove depth of the sealing ring, and ensure that the cross-sectional area of the groove is larger than the cross-sectional area of the sealing ring.
3) Size of filleted corner of the groove bottom and the groove notch needs to be determined after calculation.Size of filleted corner at the bottom of the groove is mainly related to the cross-sectional area of the groove. It is necessary to ensure that the cross-sectional area of the groove is still larger than the cross-sectional area of the seal ring with the existence of filleted corners. Size of filleted corner of the groove notch affects the extrusion and sealing performance of the sealing ring. According to the relevant literature: when the medium pressure is low, the filleted corner radius of the groove notch should be selected as small as possible on the premise that the sealing ring will not be scratched; when the medium pressure is high, it is recommended to be 0.2 mm ~ 0.24 mm.
