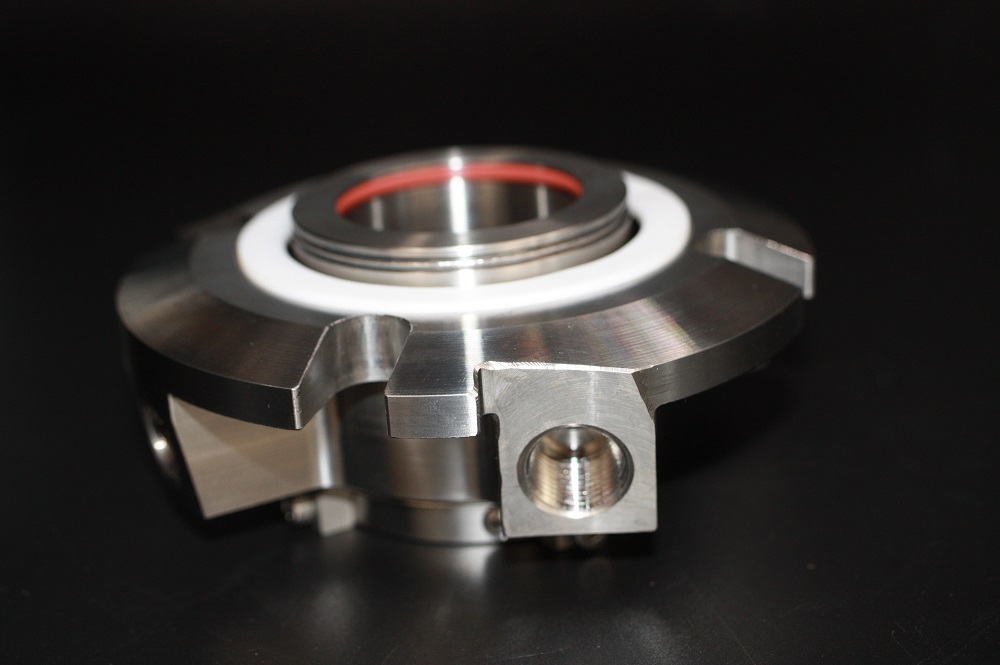

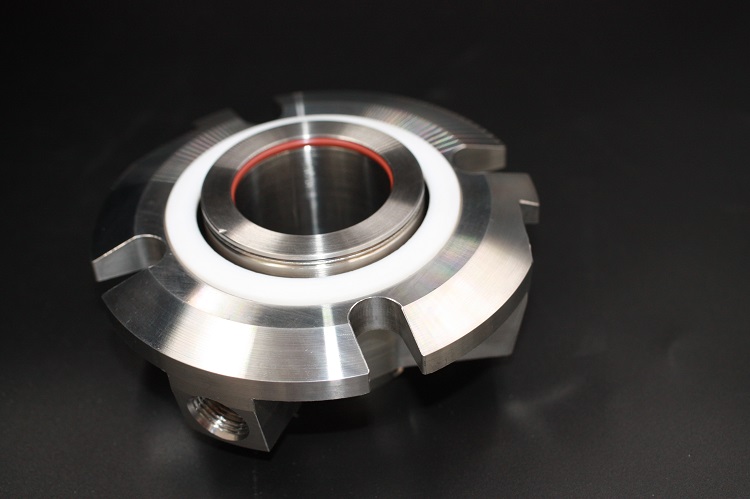

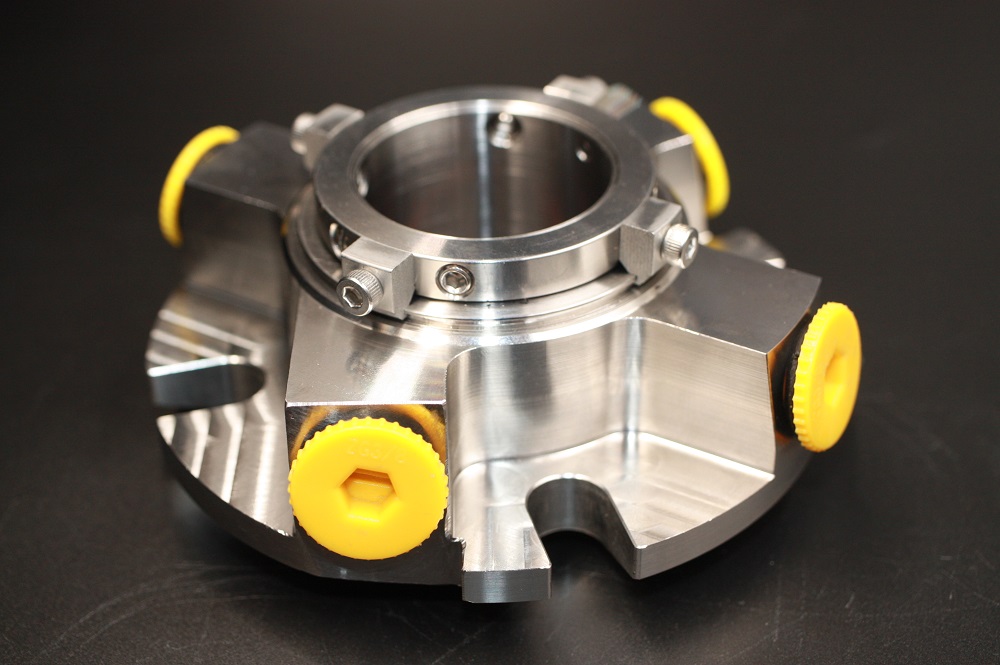

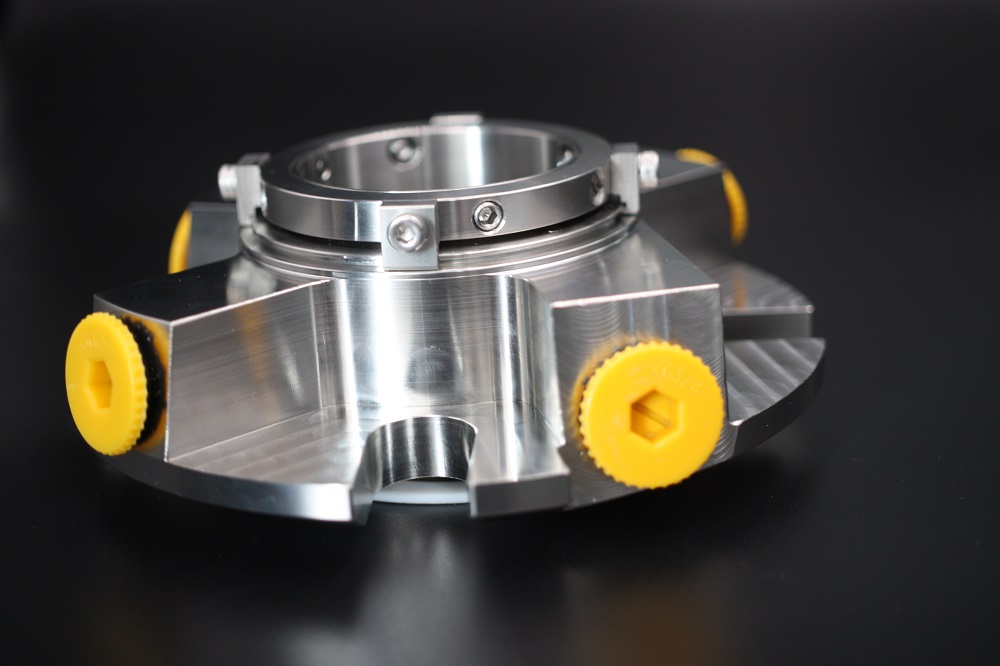

AS-C1P Series To Replace Flowserve ISC1PX And ISC1BX Seals With Pushers And Metal Bellow Seals Inside

Suggested Operation Limits

Temperature:-20℃～220℃
Speed:≤16M/S
Pressure:≤2.5Mpa
Size:25mm-70mm/1”-2.750”

Combined Material
Rotary Face:CAR/SIC/TC
Stat Ring:SIC/TC

Features
1.Corrosion Resistance
2.Low Temperature Resistance
3.Dry Heat Resistance
4.High Temp. Fluid Resistant, Very Low Compression Set FKM
5.Compression Set Resistant
6.Petroleum Hydraulic Fluid Resistant
7.Improved Performance
8.Durability and Damage Resistance
9.Easy Installation with No Special Skills or Tools
10.Sizes to Fit Most Industrial Applications
11.Wearability/Long Life
12.Springs are isolated from the process fluid reducing stress corrosion




Background Knowledge：
Solid particle impurity media classifications：
Solid particle impurity media are roughly classified as follows:
(1) Classified by rheology
① Bingham fluids such as paint, asphalt, clay mud, etc.;
②Pseudo plastic fluids such as polymer solutions and melts, starch slurry, cellulose esters, glass solutions, etc.;
③Expansive fluids such as starch and water, mica and water, a mixture of sand and water in an appropriate proportion.
(2) Classified by physical properties
① Dissolved granular media, such as various salt solutions, molten urea, sugar solutions, chromosomes, chemical liquids, etc., these media will precipitate crystals or produce coagulum due to temperature changes;
②Insoluble particles, such as slag liquid, water containing sand and gravel, coal slurry, drilling fluid, etc.;
③Fiber slurry media, such as feces, paper slurry, fiber slurry, etc., inside which  light fibers mostly suspended in the liquid exist
