AS-C533 Single Cartridge Seal

Model NO.: AS-C533

Material :SIC/SIC/VIT/SS316
Size:82.5mm
MOQ:1 set

Quantity:

Product Description

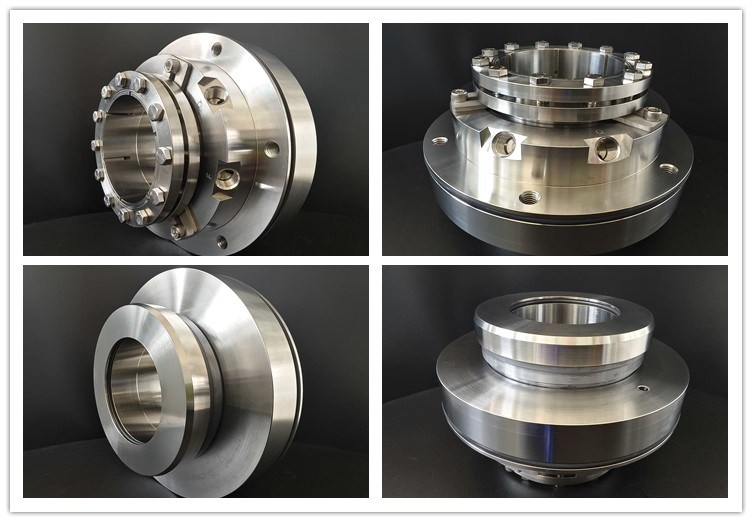

AS-C533 cartridge seal is customized single seal with multiple spring that made as per client drawing.

Basic information：

Model:	AS-C533	Size：	82.5mm
Structure:	Multiple spring	Type：	Single seal
Pressure：	Medium pressure mechanical seal	Speed：	General Speed Mechanical Seal
Temperature:	High Temperature Mechanical Seal	Standard:	Standard
Balance:	Balance	Appliaction:	Pump
MOQ:	1 set	Transport package:	Carton or wooden case
HS code:	8484200090	Origin:	Zhangjiagang,China

Combined Materials :

Rotary face material：	SIC	Stationary face material：	SIC
Spring material:	SS316	Secondary seal:	VITON
Metal parts:	SS316	Other:

Production Description

1. Feature

Multi spring compensation performance is good, and the end face load is uniform
Composite transmission has lower friction damping and more uniform transmission force
The positioning and installation of the fastening screw are simple and easy to adjust

2. Material

We can provide materials not mentioned above to meet the requirements of different occasions. If needed, please contact Asino company

3. Aplications

Oil and gas, chemical, metallurgical, pharmaceutical, food, water treatment

4.Background

How to ensure accurate compression during installation for a single acting seal ?
To ensure accurate compression of single acting seal , the key lies not in a fixed value, but in accurately calculating the size chain and strictly following a standardized measurement and installation process.

a. Core logic: Pushing 'installation location' backwards from 'total compression'
The essence of this method is to install it using a dimension chain calculation approach: first determine the required working compression amount, and then based on this, deduce the specific position where the sealing seat should be installed on the shaft sleeve. The specific operation is divided into three steps:

b. Determine the total compression amount: First, measure the total length of the mechanical seal when the spring is completely relaxed (free state) and fully compressed (compressed state), and the difference between the two is the total compression amount of this mechanical seal. This is the total 'budget'.

c. Set the work compression amount: Set aside a portion of the total compression amount budget as the actual required work compression amount for operation. There is no unified standard for this value, it is mainly determined based on the flow rate and pressure of the pump based on experience.

d. Finding the installation reference surface: This is the most crucial step and also the key point of that patent - selecting the shaft sleeve and impeller sealing surface as the measurement reference surface.

e. Reverse installation position: First install and fix the static ring, then measure the distance from the sealing static ring surface to the reference surface just now, and combine it with the compression amount you have set to accurately calculate where the sealing seat should be fixed on the shaft sleeve. Finally, install and fix it according to this position.
This is the calculation of the compression amount of a single acting seal.

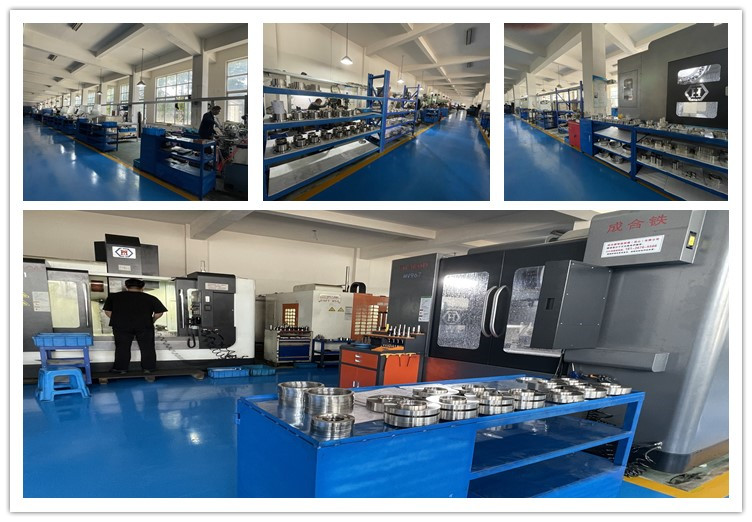

Company Profile
