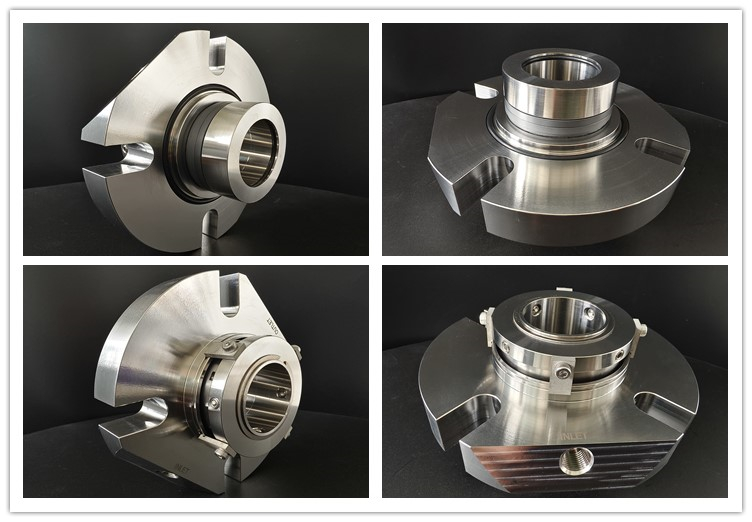

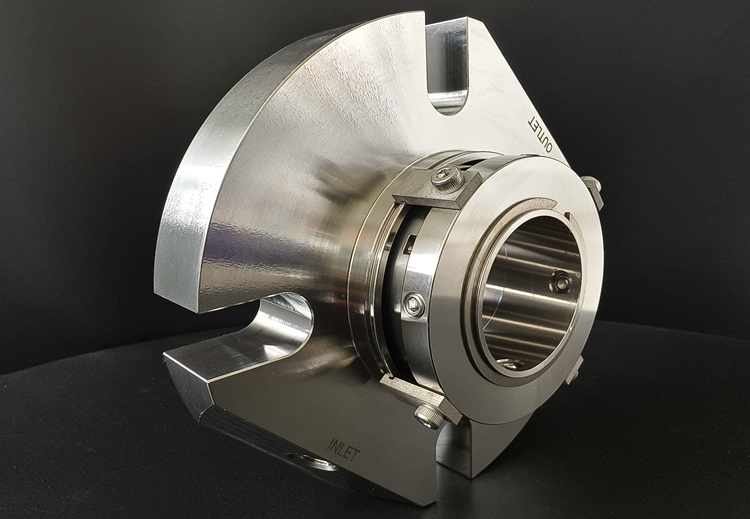

AS-C530 Dual cartridge seal

AS-C530 cartridge seal is customized double seal with multiple spring that made as per client drawing.

Basic information：

Combined Materials :

Production Description

1. Feature

• The double end structure is easy to install, and the balanced seal with the same structure is used on the medium side and the atmosphere side
•  The multi spring structure ensures uniform force distribution on the sealing end face, good axial compensation performance, and no contact between the spring and the medium, making it suitable for various corrosive media

2. Material

We can provide materials not mentioned above to meet the requirements of different occasions. If needed, please contact Asino company

3. Aplications

Oil and gas, chemical, metallurgical, pharmaceutical, food, water treatment

4.Background

a. Isolation fluid (critical auxiliary system)
Double end seals must be equipped with an independent isolation fluid circulation system, and the choice of isolation fluid directly affects the lifespan and reliability of the seal.
The function of isolation fluid is to lubricate friction pairs, remove heat, maintain pressure balance, and prevent medium leakage.
Selection criteria: The ideal isolation fluid should meet the following conditions:
Compatibility: Does not react with the pumped medium and does not contaminate the process system.
Stability: Long term non oxidation, non deterioration, and non coking at operating temperature.
Lubrication and heat transfer: It has good lubricity and heat transfer ability.
Safety: High flash point, non flammable, harmless to human body.
Suitable viscosity: The optimal viscosity for motion at 40 ℃ is between 10 and 32 mm ²/s
Asino is a professional seal manufacturer that integrates research and development, manufacturing, sales, and service.

b. Our advantages:
Technology driven: Customized selection can be provided for harsh working conditions such as high temperature, high pressure, strong corrosion, and particle content;
Quality assurance: Strictly implement the ISO 9001/ISO 14001 system, CNC machining is used for key dimensions, and the end face grinding accuracy reaches mirror level;
Quick response: With a professional technical service team, we can provide guidance, fault diagnosis, and modification suggestions;
Solid performance: We have served the petrochemical/chemical/power/pharmaceutical industries with reliable product operation.
As a professional seal manufacturer ,our mission is not just to provide seals, but to safeguard the safe, environmentally friendly, and efficient operation of customer equipment.
