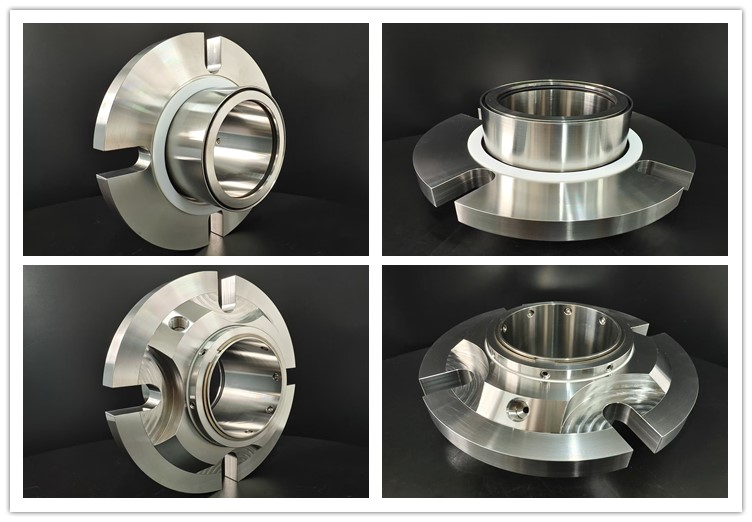

AS-C527 Single Cartridge Seal

AS-C527 cartridge seal is customized single seal with wave spring that made as per client drawing.It can replace John Crane 4610.

Basic information：

Combined Materials :

Production Description

1. Feature

• Standardized design
• The positioning of the fastening screw is simple and reliable, and easy to install
• Corrosion resistant design with dedicated corrosion-resistant seals

2. Materia

We can provide materials not mentioned above to meet the requirements of different occasions. If needed, please contact Asino company

3. Aplications

Oil and gas, chemical, metallurgical, pharmaceutical, food, water treatment

4.Background

Can wave spring solve the problem of spring blockage or jamming?
The answer is: Yes, it can significantly improve.


a. Source of blockage problem
In a multi coil spring configuration, there is a gap between each spring. When mechanical seals are used in working conditions containing solid particles, fibers, or high viscosity media, impurities in the media are prone to accumulate and get stuck in the gaps between the spring coils, causing the spring to be unable to compress and rebound normally, ultimately resulting in:
Uneven pressure on the sealing end face
Spring failure
leak


b. The solution principle of wave spring
Single overall structure: The wave spring is a complete ring-shaped component, without gaps between multiple small springs
Patent technical support: A utility model patent for a mechanical seal device clearly states that the use of a wave spring structure"will reduce the phenomenon of spring failure caused by suspended particles blocking the spring in the medium, thereby extending the service life of the mechanical seal device"


c. Limitations to be noted
However, it should also be pointed out that the axial displacement and spring force of wave spring are relatively small, and they are generally suitable for lightweight mechanical seals with compact axial size requirements. For situations that require large deformation or excessive spring force, coil springs or disc springs may be more suitable.

Company Profile

FAQ

Question 1: Are you a factory or a trade company?
Asinoseal : We are a factory with 3000㎡area with over 40 workers.

Question 2: Where is your factory located? How can I go there?
Asinoseal: Our factory is located in Zhangjiagang City,Suzhou, near Shanghai .

Question 3 How can I trust your quality?
Asinoseal: Our company passed ISO9001:2008,and strictly follow this standard,we have strict QC from raw material QC to QC before shipping to ensure our quality. Quality lists always first in our company.

Question 4: When can I get my order after placing it?
Asinoseal: For stock one,3-7 days, non-standard one 30-35 days

Question 5: What's payment term?
Asinoseal: For first cooperation,it has to be 100% before production,but for long-term cooperation,it could be adjusted

Question 6: Can you make mechanical seals according to our drawing?
Asinoseal: Absolutely yes,that's our advantage



Question 7: What's your company's advantage product?
Asinoseal : Agitator seals,cartridge seals and metal bellow seals,we always have good price and quality



If you want to view other products,pls see this website &www.aefluidtec.com/
