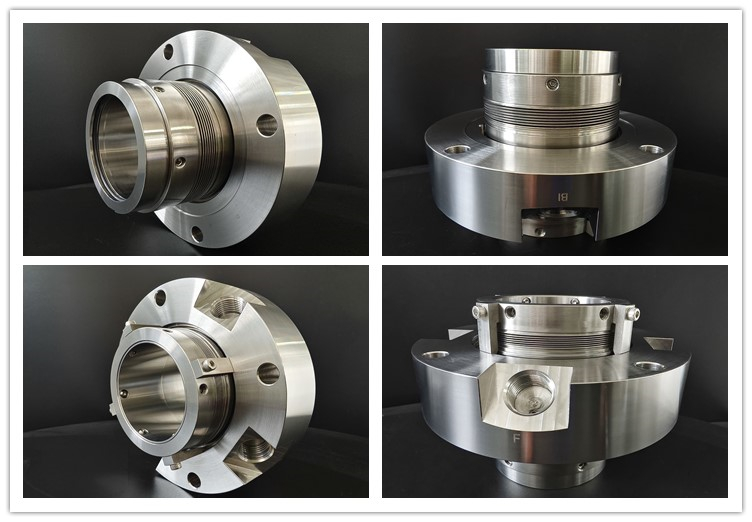

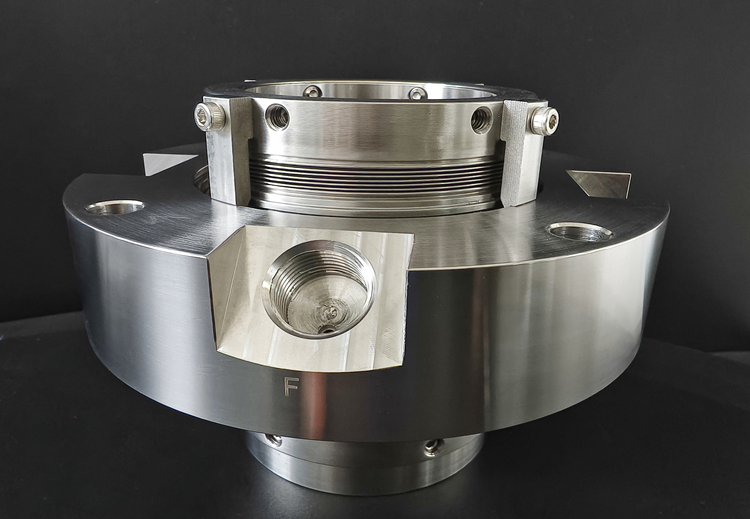

AS-C524 metal bellow cartridge seal

Model NO.: AS-C524

Material :CAR/SIC/CAR/SIC/FEP/Hast-C/SS316
Size:2.875"
MOQ:1 set

Quantity:

Product Description

AS-C524 cartridge seal is customized double seal with metal bellow seals that made as per client drawing.It can replace Flowserve X-200.

Basic information：

Model:	AS-C524	Size：	2.875”
Structure:	Metal bellow seal	Type：	Double seal
Pressure：	Medium pressure mechanical seal	Speed：	General Speed Mechanical Seal
Temperature:	Temperature Mechanical Seal	Standard:	Standard
Balance:	Balance	Appliaction:	Pump
MOQ:	1 set	Transport package:	Wooden Case or Carton
HS code:	8484200090	Origin:	Zhangjiagang,China

Combined Materials :

Rotary face material：	CAR	Stationary face material：	SIC
Spring material:	Hast-C	Secondary seal:	FEP
Metal parts:	SS316	Other:

Production Description

1. Feature

Bellows have good dynamic sealing performance and strong environmental adaptability
The O-ring seal is only used as a static seal, simple and reliable
The positioning and installation of the fastening screw are simple and easy to adjust
Corrosion resistant design with dedicated corrosion-resistant sealsMaterial

2. Material

We can provide materials not mentioned above to meet the requirements of different occasions. If needed, please contact Asino company

3. Aplications

Oil and gas, chemical industry, metallurgy

Pharmaceutical, mining, food, nuclear power

Water treatment, military industry

4. Background

Additional precautions for special scenarios
High/Low Temperature Scenarios
a. High temperature (>200 ℃): High temperature resistant sealing rings such as silicon carbide and hard alloy should be used, and metal bellow cartridge seal should be made of 316L stainless steel or Hastelloy alloy to avoid thermal deformation and aging of the sealing components

b. Low temperature (<-50 ℃): The sealing components need to undergo low-temperature brittleness testing, and the metal bellow cartridge seal should avoid cold brittleness fracture. During installation, precautions should be taken to prevent sealing failure caused by low-temperature shrinkage of the sealing components

c. Containing particles/high viscosity medium
Select integral corrugated pipes (without O-ring structure) to avoid particle blockage; The sealing end face needs to be equipped with a flushing channel, and the sealing chamber should be regularly flushed to prevent medium crystallization and coking

d. High speed rotation scene (>5000rpm)
The sealing end face needs to adopt a dynamic pressure balance design, and the wall thickness of the metal bellow cartridge seal needs to be calculated for fatigue strength to avoid sealing failure caused by high-frequency vibration
