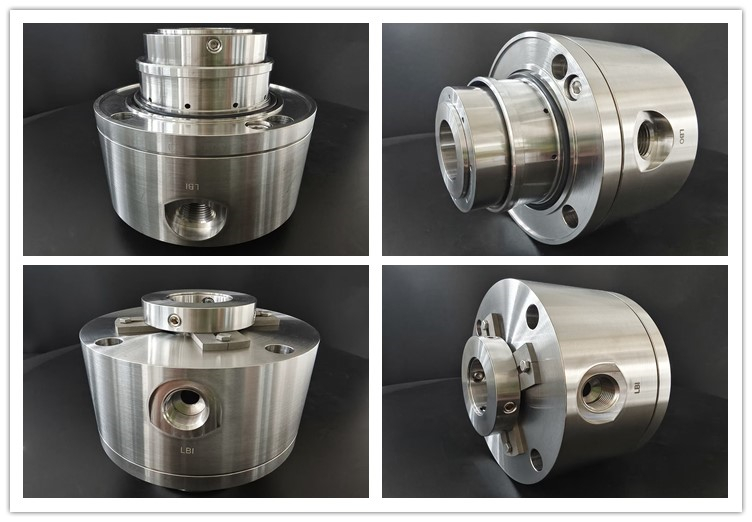

AS-C522 Double Cartridge Seal

AS-C522cartridge seal is customized doubleseal with multiple spring that made as per client drawing.

Basic information：

1. Feature

•  Standard design
•  The multi spring compensation performance is good, and the end face load is uniform
• Composite transmission has lower friction damping and more uniform transmission force
• The positioning and installation of the fastening screw are simple and easy to adjust

2. Material

We can provide materials not mentioned above to meet the requirements of different occasions. If needed, please contact Asino company

3. Aplications

Oil and gas, chemical, metallurgical, pharmaceutical, food, water treatment

4.Background

Requirements for installation and use of pump mechanical seal

a. Installation accuracy requirements
Radial runout tolerance of shaft: ≤ 0.04~0.06mm
Axial movement of rotor: ≤ 0.3mm
Positioning end face to shaft surface runout: ≤ 0.04~0.06mm

b. Handling of special working conditions
High/Low Temperature: Adopt insulation or cooling measures
Containing granular media: adding flushing and filtration systems
Flammable and explosive: Double end sealing must be used

Suggestions for the selection steps of pump mechanical seal
Determine basic parameters: pressure, temperature, speed, medium characteristics
Select structure type: balanced/unbalanced, single/double end face
Determine material combination: friction pair material, auxiliary sealing material
Configure protection system: flushing, cooling, filtering, etc
Verify installation space: Ensure effective installation dimensions
Kind reminder: For special working conditions (such as high temperature and high pressure, strong corrosion, particle content, etc.), it is recommended to consult a professional sealing manufacturer for customized design to ensure sealing reliability and service life.

Company Profile

Shipping Package

FAQ

Question 1: Are you a factory or a trade company?
Asinoseal : We are a factory with 3000㎡area with over 40 workers.

Question 2: Where is your factory located? How can I go there?
Asinoseal: Our factory is located in Zhangjiagang City,Suzhou, near Shanghai .

Question 3 How can I trust your quality?
Asinoseal: Our company passed ISO9001:2008,and strictly follow this standard,we have strict QC from raw material QC to QC before shipping to ensure our quality. Quality lists always first in our company.

Question 4: When can I get my order after placing it?
Asinoseal: For stock one,3-7 days, non-standard one 30-35 days

Question 5: What's payment term?
Asinoseal: For first cooperation,it has to be 100% before production,but for long-term cooperation,it could be adjusted

Question 6: Can you make mechanical seals according to our drawing?
Asinoseal: Absolutely yes,that's our advantage

Question 7: What's your company's advantage product?
Asinoseal : Agitator seals,cartridge seals and metal bellow seals,we always have good price and quality
