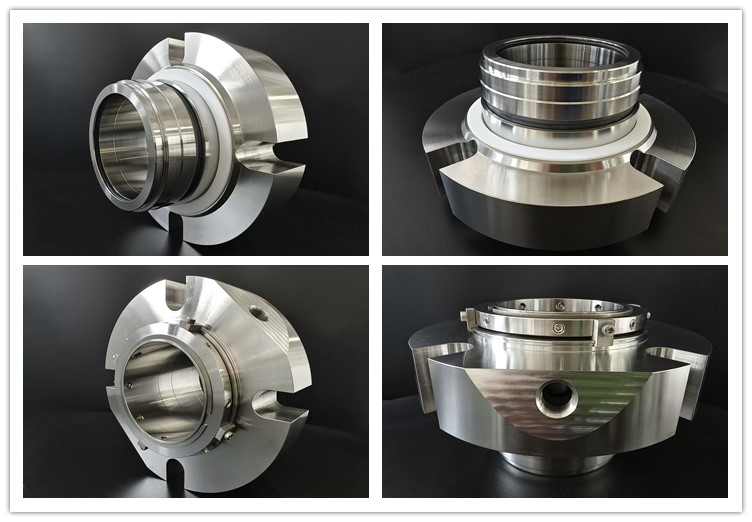

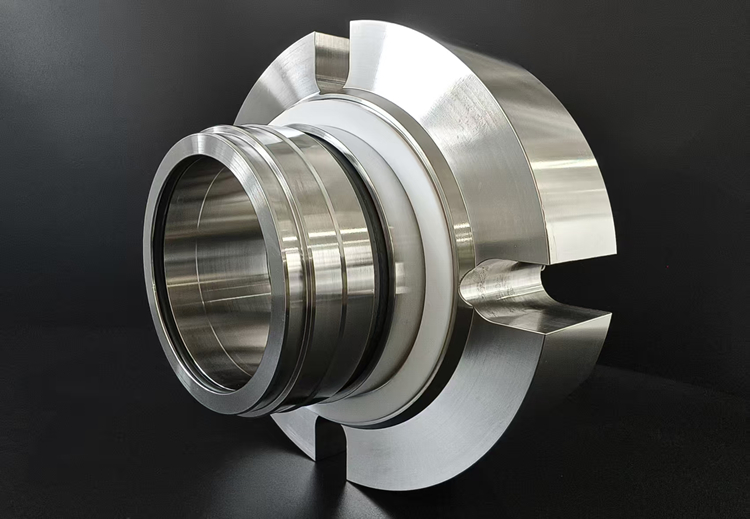

AS-C521 cartridge seal is customized double seal with wave spring that made as per client drawing.
Basic information：
Model: | AS-C521 | Size： | 90mm |
Structure: | Wave spring | Type： | Double seal |
Pressure： | Medium pressure mechanical seal | Speed： | General Speed Mechanical Seal |
Temperature: | High Temperature Mechanical Seal | Standard: | Standard |
Balance: | Balance | Appliaction: | Pump |
MOQ: | 1 set | Transport package: | Carton or wooden case |
HS code: | 8484200090 | Origin: | Zhangjiagang,China |
Combined Materials :
Rotary face material： | SSIC/CAR | Stationary face material： | SSIC/SSIC |
Spring material: | Hast-C | Secondary seal: | Kalrez 6375 |
Metal parts: | SS316 | Other: |
Production Description
1. Feature
- Compact space waveform structure can provide sufficient elasticity in limited axial space
- Stable force value, accurate elastic performance, and controllable pressure fluctuation error within ± 1N
- Low friction, small contact area, uniform distribution of friction force, reducing wear
2. Material
We can provide materials not mentioned above to meet the requirements of different occasions. If needed, please contact Asino company
3. Aplications
Oil and gas, chemical, metallurgical, pharmaceutical, food, water treatment
4.Background
As a spring loading mechanism
The waveform spring is one of the three core components of the containerized mechanical seal (parallel to the sealing surface and auxiliary seal), and its main functions are:
a. Maintain sealing surface contact: Continuously provide axial preload during static and dynamic operation to ensure a tight fit of the sealing surface
b. Compensate for axial displacement: Compensate for the motion deviation of the shaft and the wear of the sealing surface to maintain the sealing performance
c. Absorb vibration impact: reduce the impact of vibration on sealing during equipment operation
Company Profile
FAQ
Question 1: Are you a factory or a trade company?
Asinoseal : We are a factory with 3000㎡area with over 40 workers.
Question 2: Where is your factory located? How can I go there?
Asinoseal: Our factory is located in Zhangjiagang City,Suzhou, near Shanghai .
Question 3 How can I trust your quality?
Asinoseal: Our company passed ISO9001:2008,and strictly follow this standard,we have strict QC from raw material QC to QC before shipping to ensure our quality. Quality lists always first in our company.
Question 4: When can I get my order after placing it?
Asinoseal: For stock one,3-7 days, non-standard one 30-35 days
Question 5: What's payment term?
Asinoseal: For first cooperation,it has to be 100% before production,but for long-term cooperation,it could be adjusted
Question 6: Can you make mechanical seals according to our drawing?
Asinoseal: Absolutely yes,that's our advantage
Question 7: What's your company's advantage product?
Asinoseal : Agitator seals,cartridge seals and metal bellow seals,we always have good price and quality
