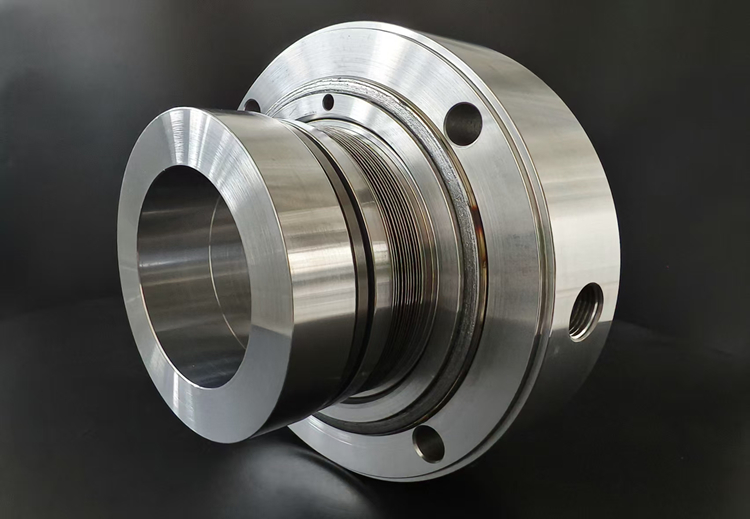

AS-C518 cartridge seal is customized single seal with metal bellow that made as per client drawing.
Basic information：
Model: | AS-C518 | Size： | 80mm |
Structure: | Metal bellow seal | Type： | Single seal |
Pressure： | Medium pressure mechanical seal | Speed： | General Speed Mechanical Seal |
Temperature: | Temperature Mechanical Seal | Standard: | Standard |
Balance: | Balance | Appliaction: | Pump |
MOQ: | 1 set | Transport package: | Carton |
HS code: | 8484200090 | Origin: | Zhangjiagang,Ch |
Combined Materials :
Rotary face material： | TC | Stationary face material： | SIC |
Spring material: | AM350 | Secondary seal: | Graphite |
Metal parts: | 2CR13 | Other: |
Production Description
1. Feature
- Standardized design
- Bellows have good dynamic sealing performance and strong environmental adaptability
- The flexible graphite sealing ring is only used as a static seal, simple and reliable
- The positioning and installation of the fastening screw are simple and easy to adjust
- Corrosion resistant design with dedicated corrosion-resistant seals
2. Material
We can provide materials not mentioned above to meet the requirements of different occasions. If needed, please contact Asino company
3. Aplications
Oil and gas, chemical, metallurgical, pharmaceutical,water treatment
4. Background
a. Core advantages
Using corrugated pipes as sealing components, it has a large deformation ability and can maintain stable sealing in high-pressure environments, effectively avoiding medium leakage. It is suitable for various working conditions such as clean water pumps, sewage pumps, chemical pumps, etc
The single end mechanical seal design has a compact structure, low manufacturing and installation threshold, and is suitable for scenarios where the medium has good lubricity and allows for trace leakage. It is a commonly used sealing form in industry
When the medium pressure exceeds the set value, the corrugated pipe can quickly deform and release pressure, timely protecting equipment and personnel safety, especially suitable for scenarios that require rapid pressure regulation
Bellows have anti fatigue and anti-corrosion properties, can operate stably for a long time under complex working conditions, and have low maintenance costs. Their overall service life is better than traditional seals

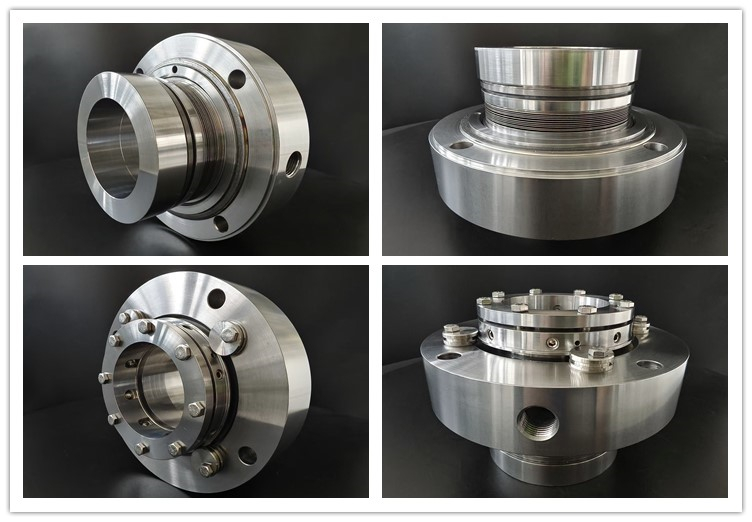

b. Asino metal bellow seal manufacturer has the following advantages:
Long lifespan and high reliability
Customized solutions with strong adaptability
FAQ
Question 1: Are you a factory or a trade company?
Asinoseal : We are a factory with 3000㎡area with over 40 workers.
Question 2: Where is your factory located? How can I go there?
Asinoseal: Our factory is located in Zhangjiagang City,Suzhou, near Shanghai .
Question 3 How can I trust your quality?
Asinoseal: Our company passed ISO9001:2008,and strictly follow this standard,we have strict QC from raw material QC to QC before shipping to ensure our quality. Quality lists always first in our company.
Question 4: When can I get my order after placing it?
Asinoseal: For stock one,3-7 days, non-standard one 30-35 days
Question 5: What's payment term?
Asinoseal: For first cooperation,it has to be 100% before production,but for long-term cooperation,it could be adjusted
Question 6: Can you make mechanical seals according to our drawing?
Asinoseal: Absolutely yes,that's our advantage
Question 7: What's your company's advantage product?
Asinoseal : Agitator seals,cartridge seals and metal bellow seals,we always have good price and quality
