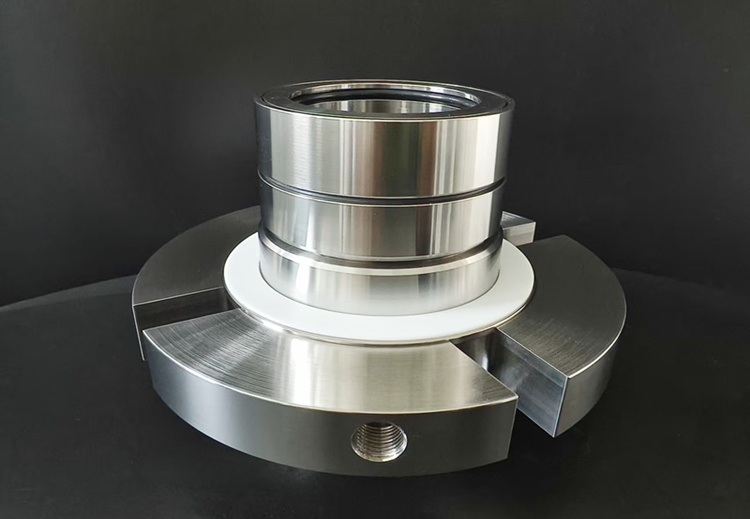

AS-C517 Double Cartridge Seal

 AS-C517 cartridge seal is customized double seal with multi spring that made as per client drawing.

Basic information：

Combined Materials :

Production Description

1. Feature

•  Standard design
•  The multi spring compensation performance is good, and the end face load is uniform
• Composite transmission has lower friction damping and more uniform transmission force
•  The positioning and installation of the fastening screw are simple and easy to adjust

2. Material

We can provide materials not mentioned above to meet the requirements of different occasions. If needed, please contact Asino company

3. Aplications

Oil and gas, chemical, metallurgical, pharmaceutical,water treatment

4. Background

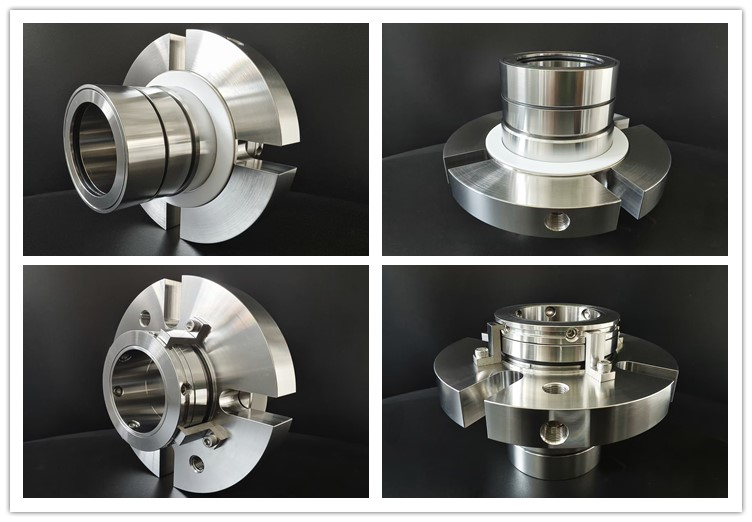

Double mechanical seal is the preferred sealing solution in the chemical industry for handling highly corrosive, flammable, explosive, particle containing or high-risk media. Its dual barrier structure and isolation liquid system significantly improve the intrinsic safety level and are widely used in key equipment such as reaction vessels, centrifugal pumps, chlorinated hydrocarbon pumps, delayed coking high-temperature oil pumps, etc.

a. Key points of operation and maintenance of types of double mechanical seal
The isolation fluid system is the lifeline: it is necessary to ensure that the sealing fluid pressure is slightly higher than the medium pressure (with pressure double sealing) or maintain a slight positive pressure (without pressure double sealing), and regularly check the liquid level, pressure, and filter blockage.
Strict prevention of dry friction: Before starting, it is necessary to turn the wheel and fill the liquid. During operation, it is necessary to prevent the pump from being emptied, otherwise the instantaneous high temperature on the end face will cause the silicon carbide ring to crack.
Dynamic monitoring is essential: by listening to abnormal noise (spring breakage, dynamic ring jamming) and pressure/liquid level switch alarms through a vibration analyzer, it is determined that the primary seal is leaking.
Material matching determines lifespan: tungsten carbide static ring for transporting seawater+resin impregnated graphite static ring; Tungsten carbide grinding pair must be selected for media containing particles.

b. Conclusion/Suggestions of types of double mechanical seal
The value of types of double mechanical seal in the chemical industry far exceeds"leakage prevention". It is a three in one guarantee of process safety, environmental compliance, and long-term operation. When selecting, it is necessary to match the sealing structure (back-to-back/series), isolation fluid type (oil/water/nitrogen), and flushing plan (PLAN53A/53B) based on the characteristics of the medium (corrosiveness/temperature/particle content). If the current equipment frequently leaks, it is recommended to prioritize checking whether the isolation fluid system maintains normal pressure and whether the cooling is smooth -80% of early failures are caused by negligence in auxiliary system management.

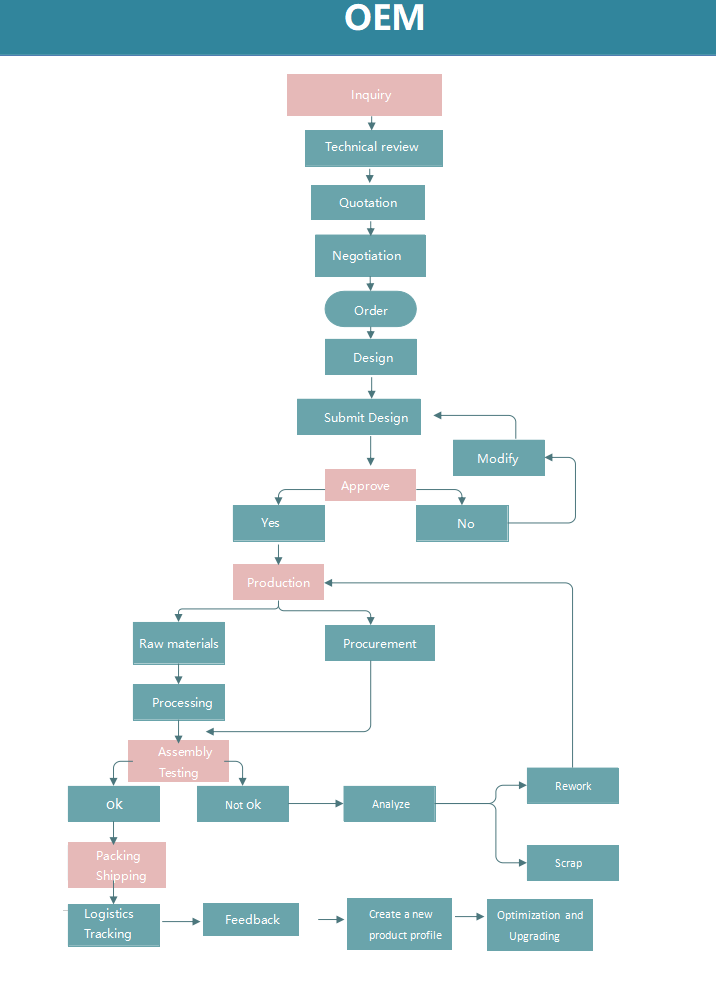

OEM service

Company Profile

Shipping Package

FAQ

Question 1: Are you a factory or a trade company?
Asinoseal : We are a factory with 3000㎡area with over 40 workers.

Question 2: Where is your factory located? How can I go there?
Asinoseal: Our factory is located in Zhangjiagang City,Suzhou, near Shanghai .

Question 3 How can I trust your quality?
Asinoseal: Our company passed ISO9001:2008,and strictly follow this standard,we have strict QC from raw material QC to QC before shipping to ensure our quality. Quality lists always first in our company.

Question 4: When can I get my order after placing it?
Asinoseal: For stock one,3-7 days, non-standard one 30-35 days

Question 5: What's payment term?
Asinoseal: For first cooperation,it has to be 100% before production,but for long-term cooperation,it could be adjusted

Question 6: Can you make mechanical seals according to our drawing?
Asinoseal: Absolutely yes,that's our advantage

Question 7: What's your company's advantage product?
Asinoseal : Agitator seals,cartridge seals and metal bellow seals,we always have good price and quality
