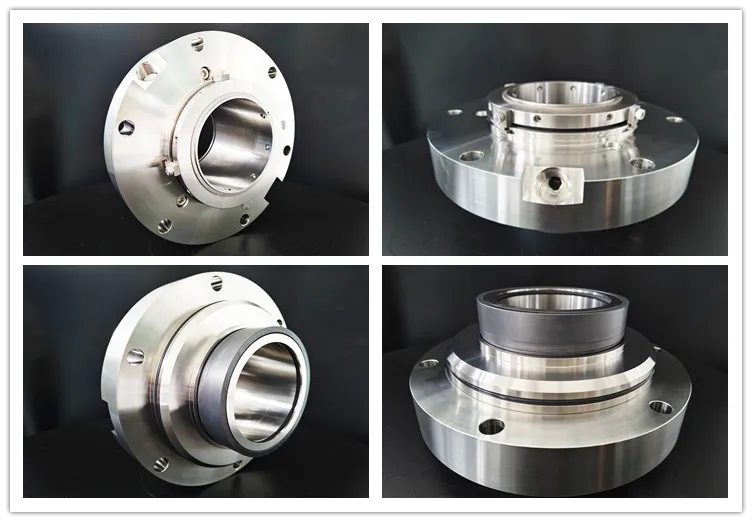

AS-C508 cartridge seal is customized double seal with multi spring that made as per client drawing.
Basic information：
Model: | AS-C508 | Size： | 100mm |
Structure: | Multi spring | Type： | Double seal |
Pressure： | Medium pressure mechanical seal | Speed： | General Speed Mechanical Seal |
Temperature: | Temperature Mechanical Seal | Standard: | Standard |
Balance: | Balance | Appliaction: | Pump |
MOQ: | 1 set | Transport package: | Carton or wooden case |
HS code: | 8484200090 | Origin: | Zhangjiagang,China |
Combined Materials :
Rotary face material： | SSIC | Stationary face material： | SSIC |
Spring material: | Hast-C | Secondary seal: | Viton |
Metal parts: | 904L | Other: | SS316 |
Production Description
1. Feature
- Standardized design
- The multi spring compensation performance is good, and the end face load is uniform
- Composite transmission has lower friction damping and more uniform transmission force
- The positioning and installation of the fastening screw are simple and easy to adjust
2. Material
We can provide materials not mentioned above to meet the requirements of different occasions. If needed, please contact Asino company
3. Aplications
Oil and gas, chemical, metallurgical, pharmaceutical, food, water treatment
4.Background
a. Background of types of double mechanical seal
Double sided mechanical seal (i.e. types of double mechanical seal) refers to a sealing structure composed of two pairs of sealing end faces, which has higher safety and reliability compared to single end face seal, and is particularly suitable for toxic, flammable, explosive or high pollution risk working conditions. It can rely on the secondary seal to prevent medium leakage even when the primary seal fails through a dual protection mechanism, and is widely used in fields such as chemical, pharmaceutical, and petrochemical industries.
b. types of double mechanical seal classification and characteristics
Classified by spatial arrangement
This is the most core classification method that determines the overall structural layout of the seal.
Classification Structure Characteristics Applicable Scenarios Source
Axial double end face seal: The two sealing end faces are arranged in sequence along the axis direction. The common"face-to-face"or"back-to-back"arrangement is suitable for situations where sealing liquid needs to be introduced and pressure balance needs to be achieved, such as reaction vessels and centrifugal pumps
Radial double end face seal: Two sealing end faces are distributed radially in the same section, making the structure more compact and used in space limited equipment, such as some small pumps or rotary joints
c. Suggestions
When choosing types of double mechanical seal, comprehensive consideration should be given to:
Is the work pressure high? → Deciding whether to choose a balanced type
Is the installation space tight? → Does it affect the selection of radial or axial direction
Whether leakage is allowed → decide whether to equip a sealing system (such as GD tank)
Maintenance convenience requirements → It is recommended to adopt a modular design

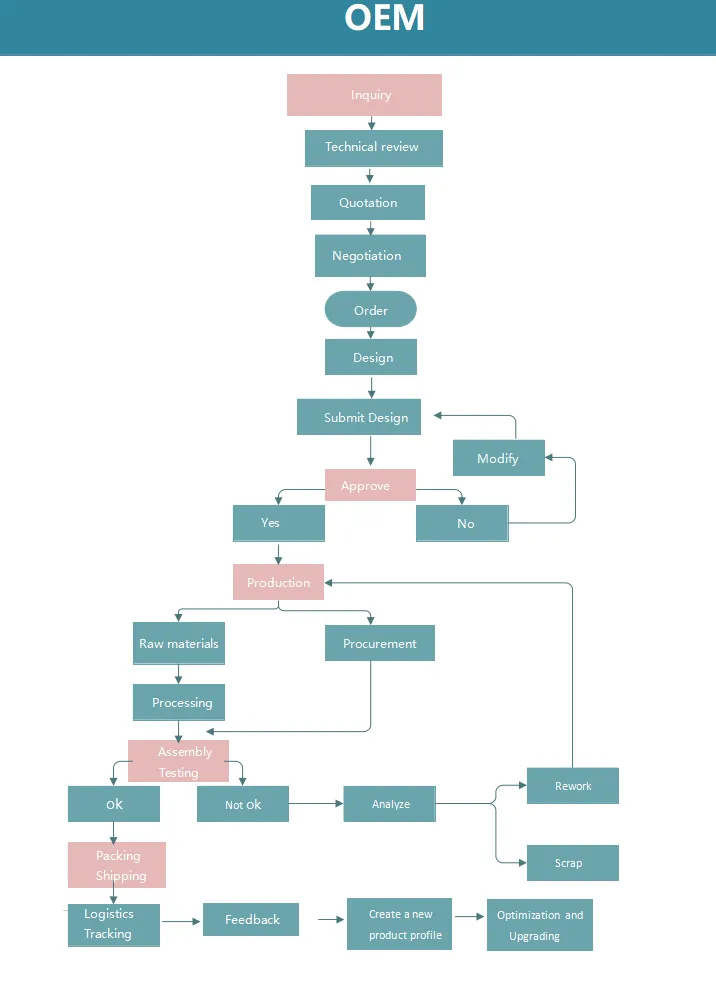

OEM service
Company Profile
Question 1: Are you a factory or a trade company?
Asinoseal : We are a factory with 3000㎡area with over 40 workers.
Question 2: Where is your factory located? How can I go there?
Asinoseal: Our factory is located in Zhangjiagang City,Suzhou, near Shanghai .
Question 3 How can I trust your quality?
Asinoseal: Our company passed ISO9001:2008,and strictly follow this standard,we have strict QC from raw material QC to QC before shipping to ensure our quality. Quality lists always first in our company.
Question 4: When can I get my order after placing it?
Asinoseal: For stock one,3-7 days, non-standard one 30-35 days
Question 5: What's payment term?
Asinoseal: For first cooperation,it has to be 100% before production,but for long-term cooperation,it could be adjusted
Question 6: Can you make mechanical seals according to our drawing?
Asinoseal: Absolutely yes,that's our advantage
Question 7: What's your company's advantage product?
Asinoseal : Agitator seals,cartridge seals and metal bellow seals,we always have good price and quality
