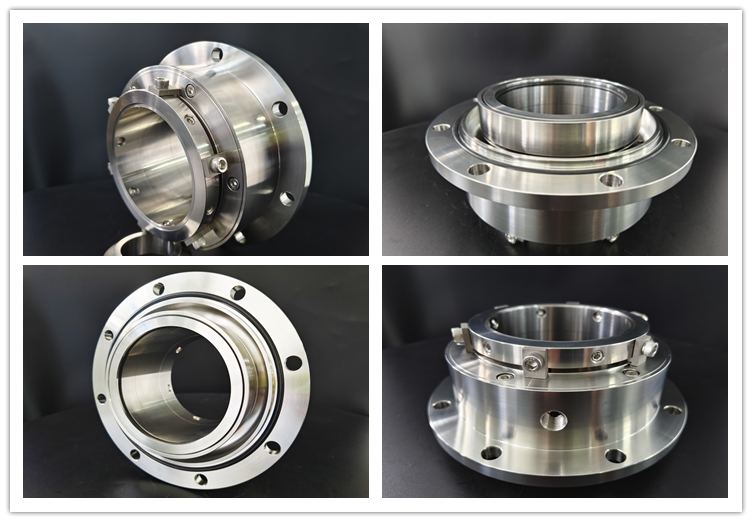

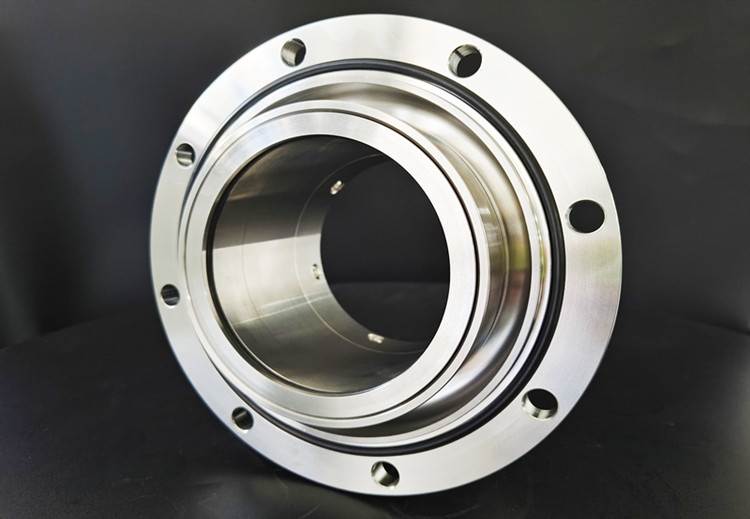

AS-C507 Single Cartridge Seal

Model NO.: AS-C507

Material :SIC/SIC/EPDM/SS304
Size:100mm
MOQ:1 set
Origin：Zhangjiagang，China

Quantity:

Product Description

AS-C507 cartridge seal is customized single seal with multi spring that made as per client drawing.

Basic information：

Model:	AS-C507	Size：	100mm
Structure:	Multi spring	Type：	Single seal
Pressure：	Medium pressure mechanical seal	Speed：	General Speed Mechanical Seal
Temperature:	Temperature Mechanical Seal	Standard:	Standard
Balance:	Balance	Appliaction:	Pump
MOQ:	1 set	Transport package:	Carton or wooden case
HS code:	8484200090	Origin:	Zhangjiagang,China

Combined Materials :

Rotary face material：	SIC	Stationary face material：	SIC
Spring material:	SS316	Secondary seal:	EPDM
Metal parts:	SS304	Other:

Production Description

1. Feature

Standardized design
The multi spring compensation performance is good, and the end face load is uniform
Composite transmission has lower friction damping and more uniform transmission force
The positioning and installation of the fastening screw are simple and easy to adjust

2. Material

We can provide materials not mentioned above to meet the requirements of different occasions. If needed, please contact Asino company

3. Aplications

Oil and gas, chemical, metallurgical, pharmaceutical, food, water treatment

4.Background

Common faults of mechanical seal multi spring

mechanical seal multi spring is a common type of mechanical seal widely used in dynamic seals of various rotating shafts. The common faults of mechanical seal multi spring mainly include the following categories:

1. Leakage fault

Leakage is the most obvious fault of mechanical seals, manifested as the leakage of materials or lubricating media from the shaft end. Leakage faults can be further divided into material leakage and lubricant leakage.

2. Wear and tear fault

Wear faults can be divided into local excessive wear and overall uniform wear.

3. Corrosion and aging faults

chemical corrosion

Manifested as swelling, dissolution, or hardening of rubber seals, and rust spots and pitting corrosion of metal seals. The core reason is that the chemical properties of the material are incompatible with the sealing material.

Aging and cracking

4. Structural failure and malfunction

Due to damage to the support or auxiliary components of the sealing structure, the sealing system cannot function properly, which is a serious fault that may be accompanied by abnormal noise or shaft end vibration.

summary

The common faults of mechanical seal multi spring mainly include leakage faults, wear faults, corrosion and aging faults, and structural failure faults. The occurrence of these faults is closely related to factors such as the material, installation, usage environment, and maintenance of the seals. By reasonable installation, regular inspection and maintenance, the occurrence of these faults can be effectively reduced, and the service life of mechanical seals can be extended.

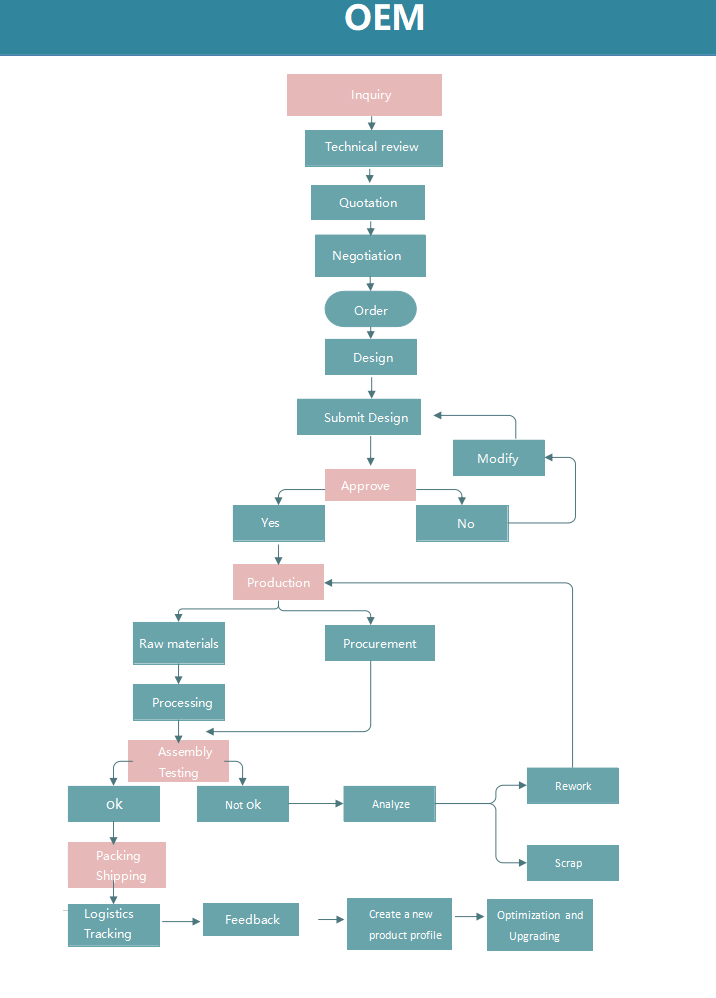

OEM service

Company Profile

Shipping Package

FAQ

Question 1: Are you a factory or a trade company?
Asinoseal : We are a factory with 3000㎡area with over 40 workers.

Question 2: Where is your factory located? How can I go there?
Asinoseal: Our factory is located in Zhangjiagang City,Suzhou, near Shanghai .

Question 3 How can I trust your quality?
Asinoseal: Our company passed ISO9001:2008,and strictly follow this standard,we have strict QC from raw material QC to QC before shipping to ensure our quality. Quality lists always first in our company.

Question 4: When can I get my order after placing it?
Asinoseal: For stock one,3-7 days, non-standard one 30-35 days

Question 5: What's payment term?
Asinoseal: For first cooperation,it has to be 100% before production,but for long-term cooperation,it could be adjusted

Question 6: Can you make mechanical seals according to our drawing?
Asinoseal: Absolutely yes,that's our advantage

Question 7: What's your company's advantage product?
Asinoseal : Agitator seals,cartridge seals and metal bellow seals,we always have good price and quality
