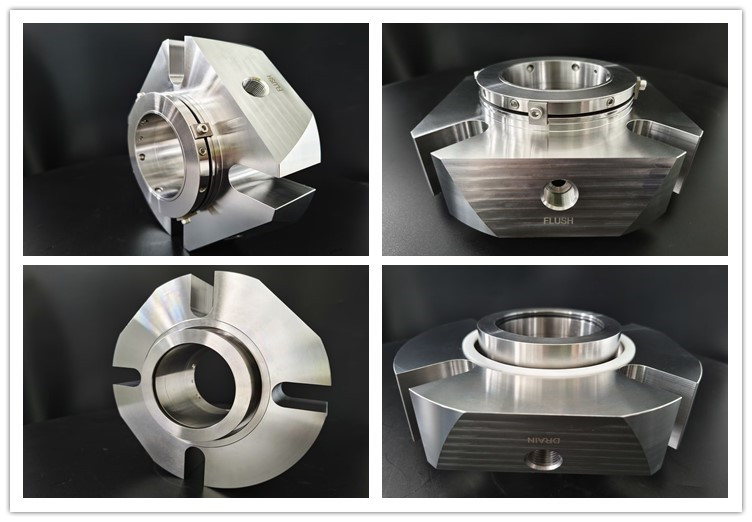

AS-C506 Single Cartridge Seal

AS-C506 cartridge seal is customized single seal with multi spring that made as per client drawing.

Basic information：

Combined Materials :

Production Description

1. Feature

•  Standardized design
•  The multi spring compensation performance is good, and the end face load is uniform
•  Composite transmission has lower friction damping and more uniform transmission force
• The positioning and installation of the fastening screw are simple and easy to adjust

2. Material

We can provide materials not mentioned above to meet the requirements of different occasions. If needed, please contact   Asino company

3. Aplications

Oil and gas, chemical, metallurgical, pharmaceutical, food, water treatment

4.Background

Working principle and leakage reasons of single mechanical seal for pump
a. working principle
Single mechanical seal for pump  prevent liquid leakage through the pressure difference between the sealing ring and the packing. The spring applies pressure to make the sealing ring and packing tightly adhere to the sealing surface of the pump casing, maintaining sealing performance and adapting to small deviations.

b. Reason for leakage
Installation problem: Unreasonable installation can cause the pump shaft and shaft sleeve to have different axes, or the pump cover and sealing seat to be not tight.
Material issue: The mechanical seal material is not corrosion-resistant, or the material is incompatible with the conveying medium, resulting in damage to the sealing surface.
Improper selection: Choose single mechanical seal for pump that are too narrow in width, lack spare surfaces, have poor sealing performance, or are damaged.
Pump shaft problem: The surface of the pump shaft is rough and the eccentricity is too large, which affects the sealing performance of the sealing ring.
Changes in operating conditions: Temperature and pressure changes cause deformation or fracture of sealing components.
Other factors: single mechanical seal for pump holding pressure inside the pump, temperature rise caused by medium circulation, excessive reflux, long-term disuse without turning, large temperature difference, frequent changes in working conditions or sudden shutdown, etc.

c. In summary, to prevent single mechanical seal for pump leakage, it is necessary to select appropriate mechanical seals and materials, improve installation methods, enhance the surface quality of pump shafts, conduct regular inspections and maintenance, and strengthen personnel training and management.

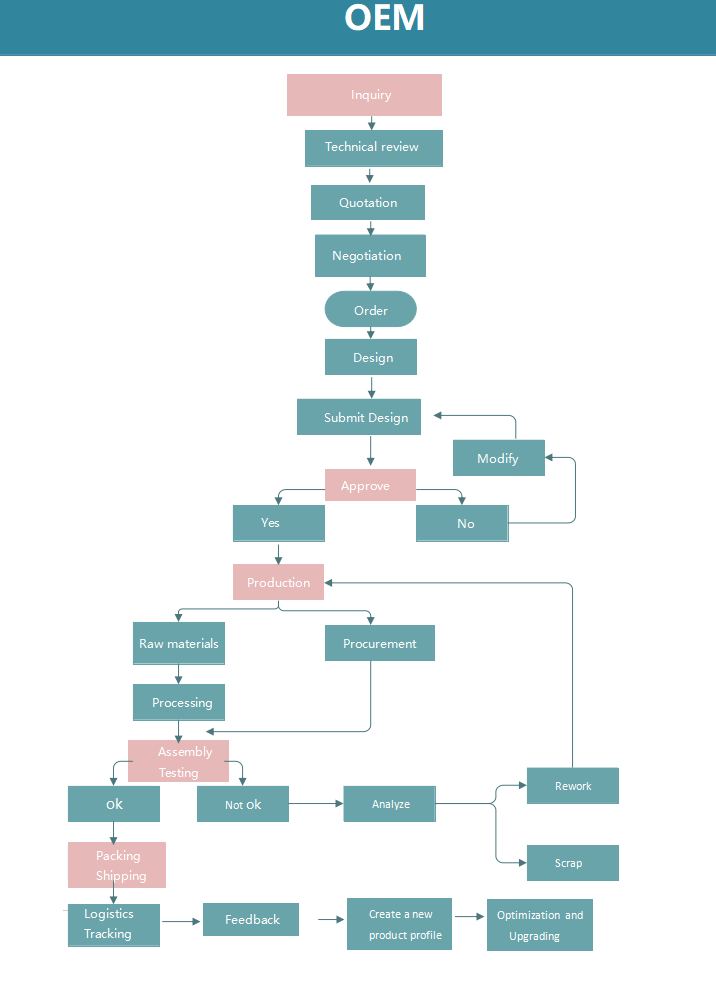

OEM service

Company Profile

Shipping Package

FAQ

Question 1: Are you a factory or a trade company?
Asinoseal : We are a factory with 3000㎡area with over 40 workers.

Question 2: Where is your factory located? How can I go there?
Asinoseal: Our factory is located in Zhangjiagang City,Suzhou, near Shanghai .

Question 3 How can I trust your quality?
Asinoseal: Our company passed ISO9001:2008,and strictly follow this standard,we have strict QC from raw material QC to QC before shipping to ensure our quality. Quality lists always first in our company.

Question 4: When can I get my order after placing it?
Asinoseal: For stock one,3-7 days, non-standard one 30-35 days

Question 5: What's payment term?
Asinoseal: For first cooperation,it has to be 100% before production,but for long-term cooperation,it could be adjusted

Question 6: Can you make mechanical seals according to our drawing?
Asinoseal: Absolutely yes,that's our advantage

Question 7: What's your company's advantage product?
Asinoseal : Agitator seals,cartridge seals and metal bellow seals,we always have good price and quality
