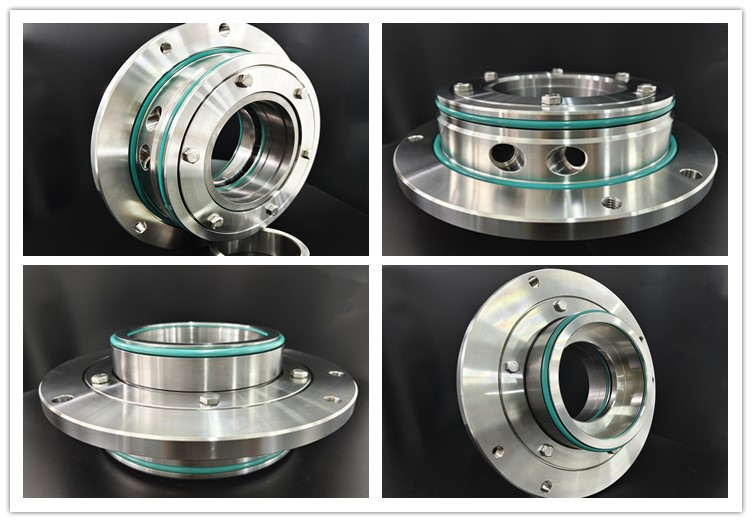

AS-C505 cartridge seal is customized double seal with multi spring that made as per client drawing.
Basic information：
Model: | AS-C505 | Size： | 48mm |
Structure: | Multi spring | Type： | Double seal |
Pressure： | Medium pressure mechanical seal | Speed： | General Speed Mechanical Seal |
Temperature: | Temperature Mechanical Seal | Standard: | Standard |
Balance: | Balance | Appliaction: | Pump |
MOQ: | 1 set | Transport package: | Carton or wooden case |
HS code: | 8484200090 | Origin: | Zhangjiagang,China |
Combined Materials :
Rotary face material： | SIC/CAR | Stationary face material： | SIC/SIC |
Spring material: | SS316 | Secondary seal: | VITON |
Metal parts: | SS304 | Other: |
- Standardized design
- The multi spring compensation performance is good, and the end face load is uniform
- Composite transmission has lower friction damping and more uniform transmission force
- The positioning and installation of the fastening screw are simple and easy to adjust
2. Material
We can provide materials not mentioned above to meet the requirements of different occasions. If needed, please contact Asino company
3. Aplications
Oil and gas, chemical, metallurgical, pharmaceutical, food, water treatment
4. Background
a. Double cartridge seal is a key dynamic sealing technology in rotating equipment such as pumps and reactors, used to prevent fluid leakage along the axial direction. Compared to single end seals, its biggest feature is the presence of two pairs of friction pairs (dynamic and static rings), forming a dual barrier that greatly enhances safety and stability. It is widely used in high-risk fields such as chemical, pharmaceutical, and energy industries.
d. Maintenance and upkeep suggestions
To ensure long-term stable operation, the following measures should be regularly implemented:
Check for leaks and flow: Ensure that the flushing or buffer fluid pipeline is unobstructed and avoid dry abrasion.
Cleaning and lubrication: Clean impurities and crystals, regularly clean filters; Lubricate the moving parts appropriately, but avoid contaminating the end faces.
Dynamic monitoring: Monitor abnormal noise, observe changes in vibration and leakage, and promptly detect spring breakage or end face wear.
Replace vulnerable parts: Replace aging O-rings, springs that have lost elasticity, and other auxiliary seals periodically.
Properly store spare parts: Store in a dry and dark environment to prevent rubber parts from aging or damage to precision components.
c. Conclusion
Double cartridge seal has become the preferred sealing solution under high safety conditions due to their dual protection mechanism and monitoring characteristics. When selecting, the specific structural form (such as back-to-back or face-to-face, pressurized or unpressurized) should be determined based on factors such as medium properties, pressure conditions, and installation space, and should be accompanied by good maintenance strategies to extend the service life.

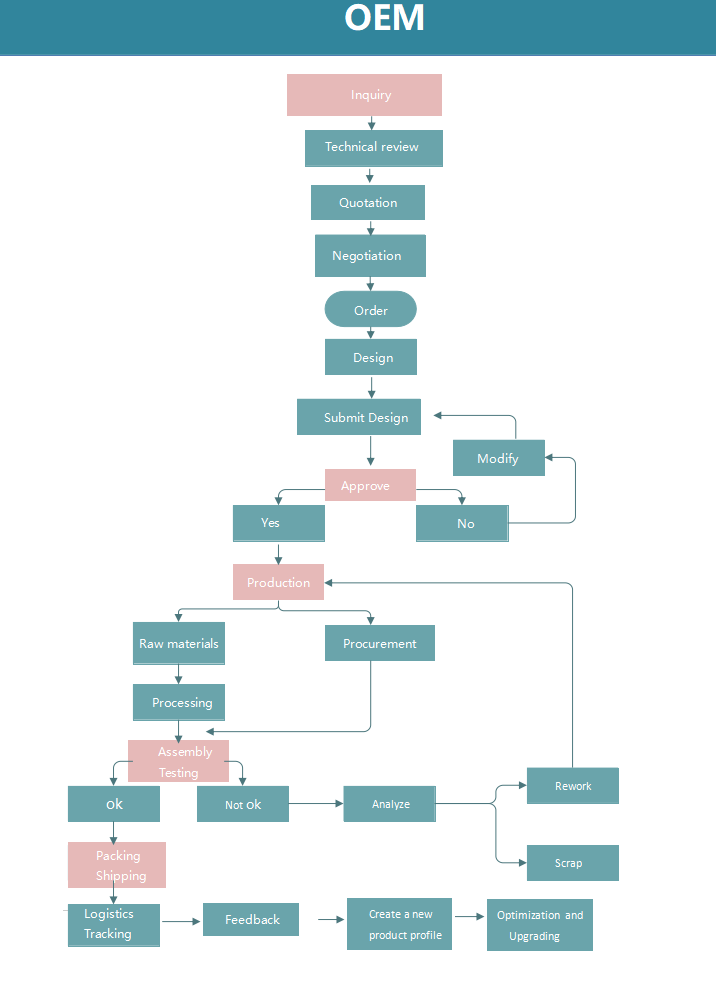

OEM service
Company Profile
Shipping Package
FAQ
Question 1: Are you a factory or a trade company?
Asinoseal : We are a factory with 3000㎡area with over 40 workers.
Question 2: Where is your factory located? How can I go there?
Asinoseal: Our factory is located in Zhangjiagang City,Suzhou, near Shanghai .
Question 3 How can I trust your quality?
Asinoseal: Our company passed ISO9001:2008,and strictly follow this standard,we have strict QC from raw material QC to QC before shipping to ensure our quality. Quality lists always first in our company.
Question 4: When can I get my order after placing it?
Asinoseal: For stock one,3-7 days, non-standard one 30-35 days
Question 5: What's payment term?
Asinoseal: For first cooperation,it has to be 100% before production,but for long-term cooperation,it could be adjusted
Question 6: Can you make mechanical seals according to our drawing?
Asinoseal: Absolutely yes,that's our advantage
Question 7: What's your company's advantage product?
Asinoseal : Agitator seals,cartridge seals and metal bellow seals,we always have good price and quality
