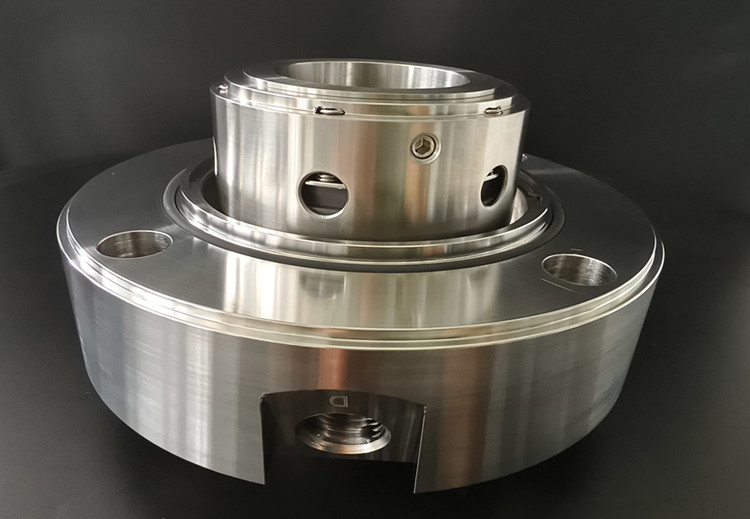

AS-C502 Single Cartridge Seal

Model NO.: AS-C502

Material :CAR/SIC/V/SS316
Size: 3.0"
MOQ:1 set
Origin：Zhangjiagang，China

Quantity:

Product Description

AS-C502 cartridge seal is customized single seal with multiple spring that made as per client drawing.

Basic information

Model:	AS-C502	Size：	3"
Structure:	Multiple spring	Type：	Single seal
Pressure：	Medium pressure mechanical seal	Speed：	General Speed Mechanical Seal
Temperature:	Temperature Mechanical Seal	Standard:	General Speed Mechanical Seal
Balance:	Balance	Appliaction:	Pump
MOQ:	1 set	Transport package:	Wooden Case or Carton
HS code:	8484200090	Origin:	Zhangjiagang,China

Combined Materials

Rotary face material：	CAR	Stationary face material：	SIC
Spring material:	SS316	Secondary seal:	VITON
Metal parts:	SS316	Other:

Production Description

1. Feature

Standardized design
The multiple spring structure is simple and has strong environmental adaptability
The positioning of the fastening screw is simple and reliable, and easy to install
Corrosion resistant design with dedicated corrosion-resistant seals

2. Material

We can provide materials not mentioned above to meet the requirements of different occasions. If needed, please contact Asino company

3. Aplications

Oil and gas
Chemical
Metallurgical
Pharmaceutical
Food
Water treatment

4. How to maintain a single end face machine seal
The maintenance of single cartridge seal for sale should revolve around four core areas: installation specifications, daily inspections, flushing system management, and fault handling. The focus should be on sealing surface cleaning, lubrication, and pressure control. Regular replacement of vulnerable parts can significantly extend the service life.

Maintain core points

Preparation before installation: Ensure that the sealing ring, elastic gasket, and other components are not damaged, clean the sealing chamber, and check the fitting dimensions. During installation, avoid knocking and ensure that the dynamic and static rings are parallel and closely fitted, and the compression amount meets the requirements of the instruction manual.

Daily operation monitoring:

Check the leakage rate daily (allowable ≤ 5ml/h), and stop the machine immediately if it exceeds the limit.
Monitor the temperature of the sealed chamber and control the temperature rise through a flushing system to prevent liquid film evaporation.
Check the elasticity of the spring and the aging of the O-ring every week, and replace them promptly if cracks or hardening are found.

Maintenance of flushing system

The commonly used PLAN11 (self flushing) and PLAN32 (external flushing) schemes for single cartridge seal for sale require maintenance, with the following key points:
Key maintenance points and cycle precautions for flushing plan
Check the patency of the flow restriction orifice plate in PLAN11, clean the impurities in the filter screen every month to avoid the medium containing particles, and install a filter if necessary
PLAN32 monitors the external flushing fluid pressure (≤ 0.2 bar) weekly to ensure compatibility between the flushing fluid and the process medium, preventing crystallization
(Additional note) The flushing solution should be kept clean, with moderate viscosity, to avoid flash evaporation or solidification affecting the lubrication of the sealing surface.

Fault handling and maintenance

Common faults:
Leakage: Priority should be given to checking the sealing effect of the O-ring. If the dynamic and static rings are worn, they need to be replaced as a whole (not individually).
Overheating: Increase flushing flow or lower medium temperature, check if the cooling jacket is blocked.
Regular maintenance: Replace the lubricating oil every 1000 hours of operation, disassemble and check the flatness of the sealing surface every year, and re grind if necessary.

Company Profile

Shipping Package

FAQ

Question 1: Are you a factory or a trade company?
Asinoseal : We are a factory with 3000㎡area with over 40 workers.

Question 2: Where is your factory located? How can I go there?
Asinoseal: Our factory is located in Zhangjiagang City,Suzhou, near Shanghai .

Question 3 How can I trust your quality?
Asinoseal: Our company passed ISO9001:2008,and strictly follow this standard,we have strict QC from raw material QC to QC before shipping to ensure our quality. Quality lists always first in our company.

Question 4: When can I get my order after placing it?
Asinoseal: For stock one,3-7 days, non-standard one 30-35 days

Question 5: What's payment term?
Asinoseal: For first cooperation,it has to be 100% before production,but for long-term cooperation,it could be adjusted

Question 6: Can you make mechanical seals according to our drawing?
Asinoseal: Absolutely yes,that's our advantage

Question 7: What's your company's advantage product?
Asinoseal : Agitator seals,cartridge seals and metal bellow seals,we always have good price and quality

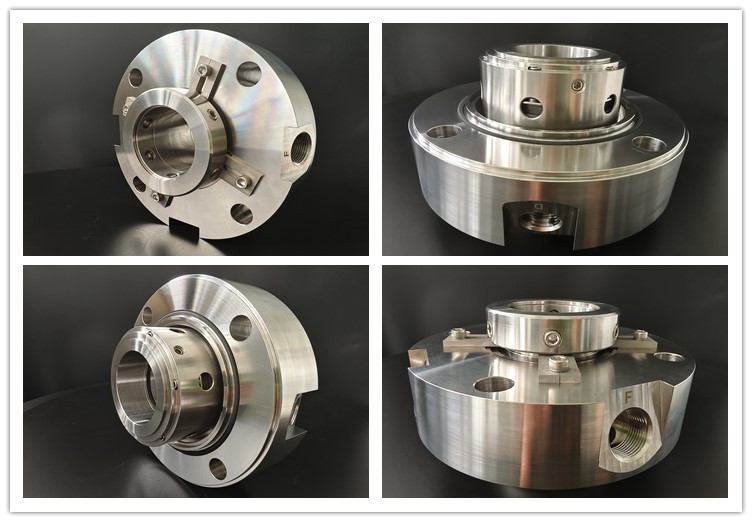

single cartridge seal for sale (f)
