AS-C498 Single Cartridge Seal

Model NO.: AS-C498

Quantity:

Product Description

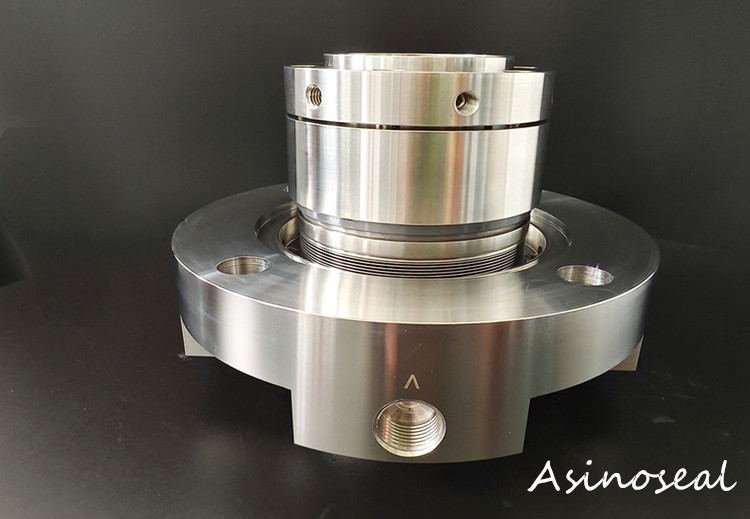

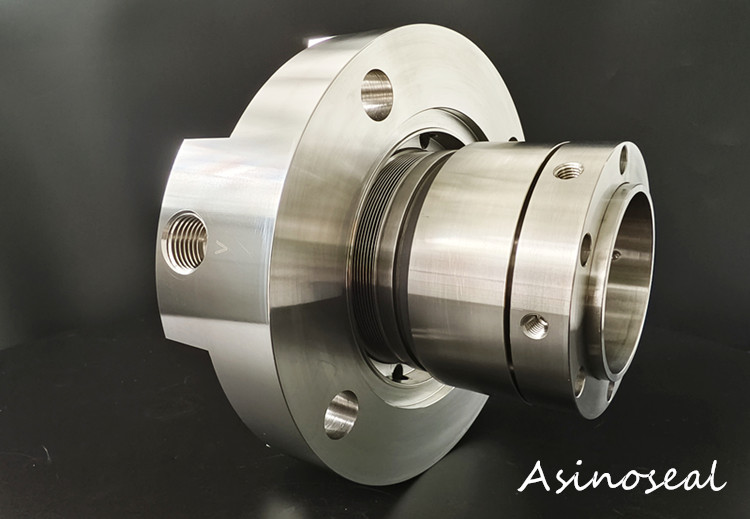

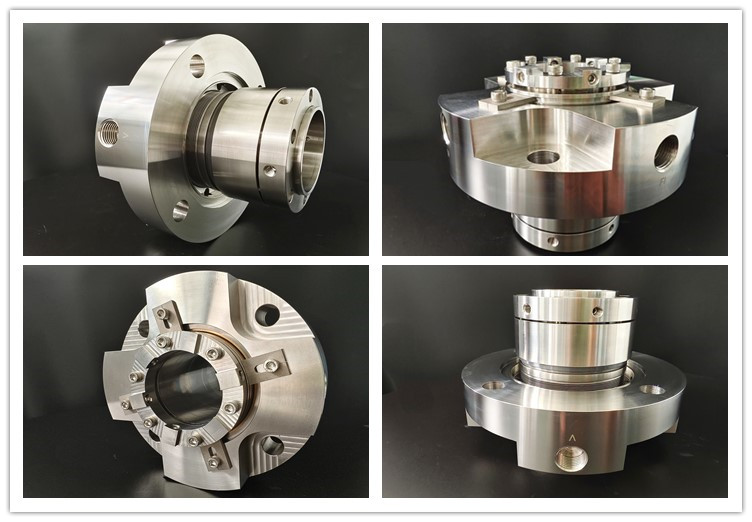

AS-C498 cartridge seal is customized single seal with metal bellow that made as per client drawing.

Structure Features:

Model :	AS-C498	Type :	Single seal
Structure:	metal bellow seal	Shaft size：	2.625”

Combined Materials :

Rotary face material：	SIC	Stationary face material：	TC
Spring material:	AM350	Secondary seal:	Grafoil
Metal parts:	SS316	Other:

About us：

FAQ:

Question 1: Are you a factory or a trade company?
Asinoseal : We are a factory with 3000㎡area with over 40 workers.

Question 2: Where is your factory located? How can I go there?
Asinoseal: Our factory is located in Zhangjiagang City,Suzhou, near Shanghai .

Question 3 How can I trust your quality?
Asinoseal: Our company passed ISO9001:2008,and strictly follow this standard,we have strict QC from raw material QC to QC before shipping to ensure our quality. Quality lists always first in our company.

Question 4: When can I get my order after placing it?
Asinoseal: For stock one,3-7 days, non-standard one 30-35 days

Question 5: What's payment term?
Asinoseal: For first cooperation,it has to be 100% before production,but for long-term cooperation,it could be adjusted

Question 6: Can you make mechanical seals according to our drawing?
Asinoseal: Absolutely yes,that's our advantage

Question 7: What's your company's advantage product?
Asinoseal : Agitator seals,cartridge seals and metal bellow seals,we always have good price and quality

metal bellowe seal (logo)

Background：

Working principle of metal bellow seal
The metal bellow seal achieves sealing by forming a stable liquid film on the end faces of the moving and stationary rings through the elastic deformation of the bellows. The core is to use the compensating ability of the bellows to adapt to changes in working conditions and maintain sealing pressure.
1. Overview of Core Principles
The metal bellow seal uses bellows as the core elastic element, relying on its ability to expand and contract, to tightly fit the sealing end faces of the moving ring and the stationary ring. Under the combined action of fluid pressure and corrugated tube elasticity, an extremely thin liquid film is formed between the end faces, which not only provides lubrication but also prevents medium leakage. When the shaft rotates or there is vibration or deviation, the corrugated tube can adaptively adjust to ensure continuous adhesion of the sealing surface.

2. Key points of structure and principle
Principle of Component Function
Bellows provide elastic compensation, adapt to axial/radial displacement of the shaft, and transmit sealing pressure to the end face.
The sealing ring and corrugated tube cooperate to form a sealing interface, and stainless steel/titanium alloy is selected as the material to ensure wear resistance.
Static pressure rings limit excessive deformation of corrugated pipes in high-density media and maintain sealing stability.

3. Key features and advantages
Adaptive sealing: The bellows can expand and contract to compensate for end face wear and shaft offset, suitable for harsh working conditions such as high temperature, high pressure, and high speed.
Efficient leak prevention: The leakage rate is only 1% of traditional packing seals, and liquid film lubrication reduces friction loss, with a lifespan of up to 1-2 years.
Wide applicability: Pumps, reactors, and other equipment in fields such as chemical, petroleum, and automotive manufacturing are widely used.If you want to view other products,pls see this website & www.aefluidtec.com/
