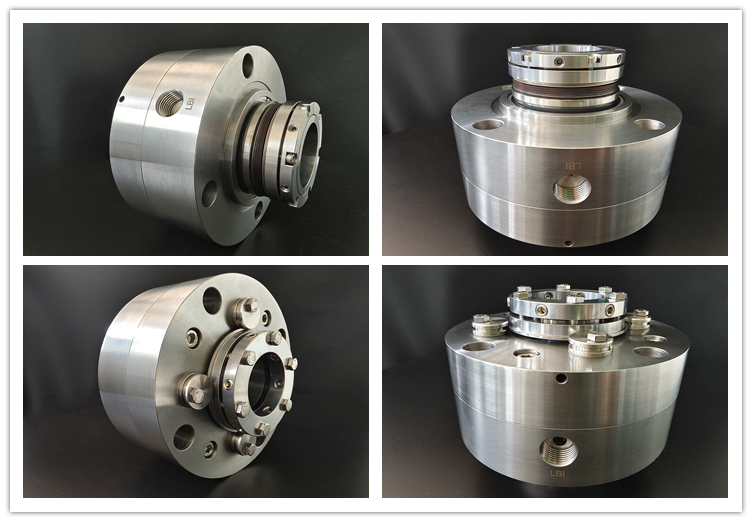

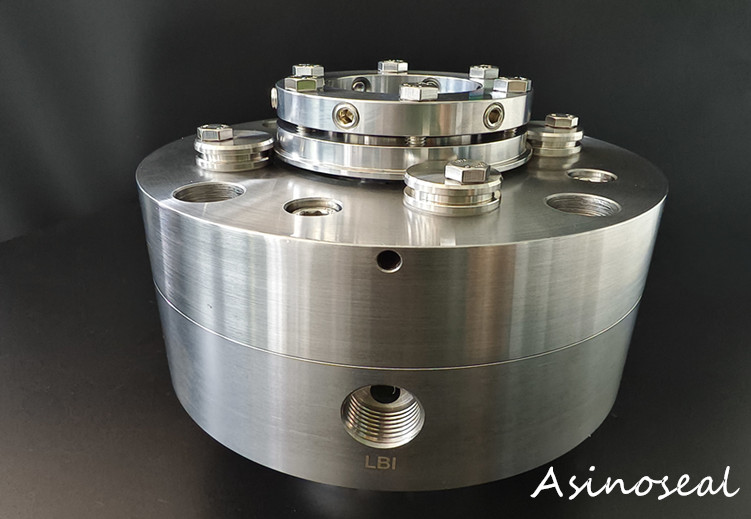

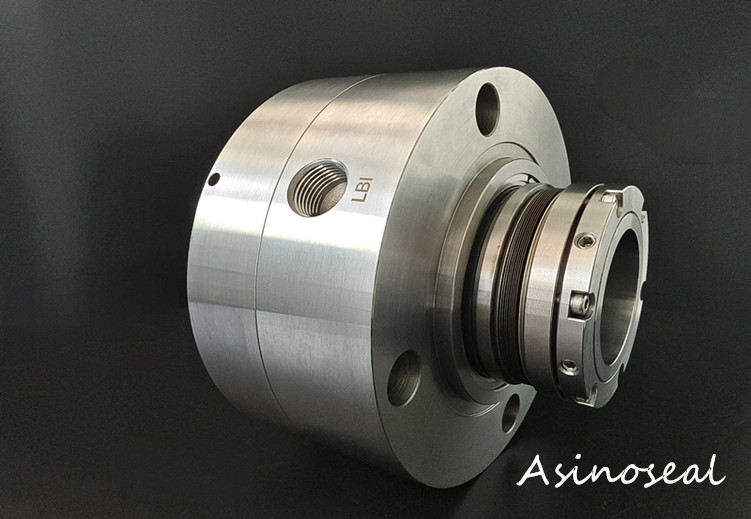

AS-C496cartridge seal is customized double seal with metal bellows seal that made as per client drawing.
Structure Features:
Model : | AS-C496 | Type: | Double seal |
Structure: | Metal bellows seal | Shaft size： | 50mm |
Combined Materials :
Rotary face material： | TC | Stationary face material： | SSIC |
Spring material: | IN718 | Secondary seal: | Grafoil |
Metal parts: | 4J42 | Others: | 2Cr13 |
2.Ensure that the surfaces of components such as the base, static sealing ring, dynamic sealing ring, and packing box are clean, flat, undamaged, and rust free.
3.Select the corresponding mechanical seal based on the model and medium of the pump. If unsure about the selection, it is necessary to consult professional technicians.
4.Assemble the mechanical seal in order according to the requirements in the assembly drawing.
5.Apply a clean layer of lubricating oil on the dynamic and static mirror surfaces; Apply lubricating oil to the guide bearing seat, then gently position the static ring and install it into the guide bearing seat; Apply lubricating oil to the pump shaft and gently install the dynamic ring part of the mechanical seal onto the pump shaft.
6.Keep clean and do not allow tools to strike the sealing components to prevent damage and destruction.
7.During installation, the surfaces of the dynamic and static rings should be coated with a layer of clean engine oil and turbine oil. Before installing the auxiliary sealing ring, it is also necessary to apply a layer of clean engine oil or turbine oil to ensure smooth installation.
About us :
FAQ:
Question 1: Are you a factory or a trade company?
Asinoseal : We are a factory with 3000㎡area with over 40 workers.
Question 2: Where is your factory located? How can I go there?
Asinoseal: Our factory is located in Zhangjiagang City,Suzhou, near Shanghai .
Question 3 How can I trust your quality?
Asinoseal: Our company passed ISO9001:2008,and strictly follow this standard,we have strict QC from raw material QC to QC before shipping to ensure our quality. Quality lists always first in our company.
Question 4: When can I get my order after placing it?
Asinoseal: For stock one,3-7 days, non-standard one 30-35 days
Question 5: What's payment term?
Asinoseal: For first cooperation,it has to be 100% before production,but for long-term cooperation,it could be adjusted
Question 6: Can you make mechanical seals according to our drawing?
Asinoseal: Absolutely yes,that's our advantage
Question 7: What's your company's advantage product?
Asinoseal : Agitator seals,cartridge seals and metal bellow seals,we always have good price and quality
Background:
1. Analysis of cartridge seals market
From 2025 to 2031, the global and Chinese containerized mechanical seal markets will develop towards intelligence, modularity, and high environmental adaptability, with technological innovation and application expansion as the core driving forces.
2. Core Trends in the cartridge seals market
In the future, the containerized mechanical seal industry will focus on three major technological directions:
Intelligent monitoring: Built in sensors and wireless communication technology achieve real-time status monitoring, early warning of faults to reduce unplanned downtime.
Modular design: Simplify the installation and replacement process, and improve the work efficiency of on-site engineers.
Extreme environmental adaptation: Strengthening performance stability under harsh conditions such as high temperature and high pressure has become a research and development focus.
3. Key points of cartridge seals market
The development stage is in the stage of technological upgrading, and the lifecycle analysis shows that the industry has entered the growth stage.
The global market covers regions such as North America, the European Union, and Asia, with China being an important growth pole.
The demand for efficient operation and maintenance of industrial equipment driven by demand has increased, and downstream application areas have higher requirements for sealing reliability.
The market concentration in the competitive landscape is gradually increasing, and key enterprises are consolidating their positions through technological innovation.
Suggestions for the future development of cartridge seals market
Technical research and development: Prioritize the integration of intelligent sensors and the development of materials for extreme environments.
Market expansion: Focus on emerging industrial markets in Asia and the demand for upgrading old equipment.
Standard construction: Promote the standardization of modular installation and the unification of intelligent monitoring interfaces.If you want to view other products,pls see this website & www.aefluidtec.com/
