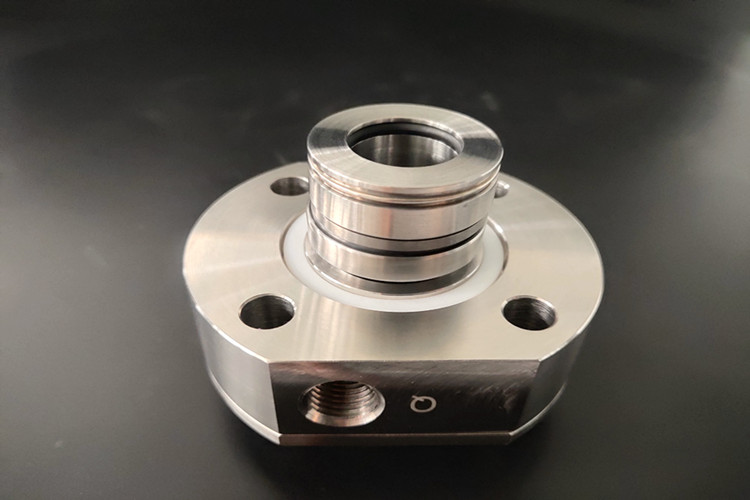

AS-C486 Single Cartridge Seal

Combined Materials :

About us :

Background:

Applications and Scenarios for Single-End Assembly Mechanical Seals
Single-end assembly mechanical seals are widely used in many industrial fields due to their compact structure, convenient installation and adaptability. The following are their main application scenarios and adaptation conditions:

1. Pump equipment renovation and upgrade
Traditional pump seal transformation: suitable for upgrading pump equipment that originally used filler seals or split-type mechanical seals, such as centrifugal pumps, sludge pumps, submersible pumps, etc., can be replaced directly without the need to modify the pump cap, reducing the cost and difficulty of transformation.
Space limited scenario: Due to its compact structure and small space, it can meet most pump sealing chamber size requirements, especially suitable for old equipment with limited sealing chamber space.

2. Industrial fluid conveyor
General media conveyor: suitable for conveying medium with good lubrication, allowing trace leakage, such as clean water, oil and other common working conditions.
Industry-specific adaptation: In the petrochemical field, it can be used for mixed pumps, submersible pumps and other equipment, in accordance with DIN24960 standard, high interchangeability.

3. Environmental and safety production requirements
Alternative phasing-out process: After March 2024, single-end mechanical seals will be banned for the transport of toxic and flammable materials, but packaging structures can improve safety through optimized designs, such as external flushing systems, to indirectly meet the needs of environmental protection and efficient use.
Low maintenance requirements scenario: pre-installation and commissioning have been completed before leaving the factory, reducing on-site installation errors, suitable for continuous production processes with high requirements for seal reliability.

4. The core advantages of single-end assembly mechanical seals
Ease of installation and maintenance
Integrated design: All components are pre-installed and performance tested before leaving the factory, and the site can be put into use with simple fixing, greatly reducing installation time.
Reduce technical thresholds: Avoid the stringent requirements for alignment accuracy when installing traditional split-body seals, and reduce the risk of leakage due to human operation errors.
Performance optimization and durability
Dynamic ring lubrication protection: some models (such as the design of oil injection parts) can inject lubricant into the dynamic ring through the lubricating hole, reducing wear and extending service life.
Structural Compactness: Integrated design of the shaft sleeve and the press cover, suitable for most standard sealing cavities, without the need for additional modification of the equipment structure.
Cost and adaptability balance
Conversion costs can be controlled: compared to the overall replacement of the pump body, the assembly seal conversion can save the conversion costs of components such as the pump cap, especially suitable for upgrading old equipment.
Customized expansion: Supports external cooling, flushing interfaces to meet the needs of auxiliary systems under different working conditions, such as high temperature or high viscosity media conveying.If you want to view other products,pls see this website & www.aefluidtec.com/
