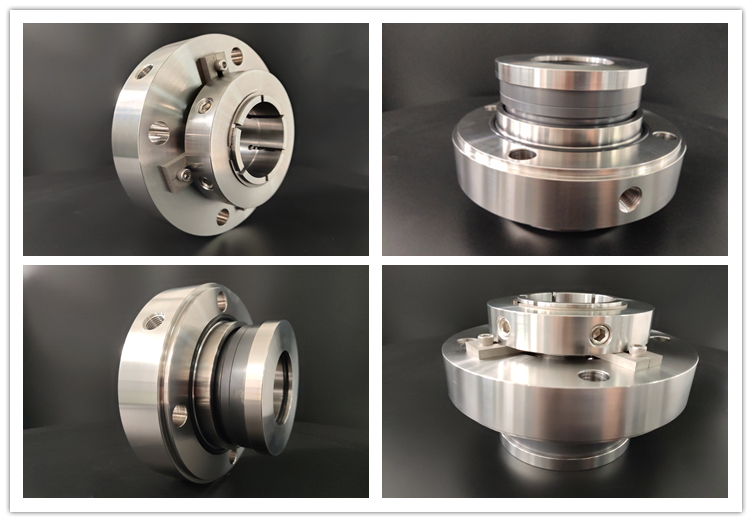

AS-C480 Single Cartridge Seal

AS-C480 cartridge seal is customized single seal  with multiple spring   that  made as per client drawing.

About us :



Background:

The friction optimization of mechanical seals can be approached from multiple perspectives, including material selection, structural design, and improvement of lubrication systems. Below, we will analyze in detail how to effectively reduce friction in mechanical seals from several aspects.
1. Material selection
Soft hard combination: When selecting friction pair materials, a combination of one hard and one soft material is usually used. This combination can prevent the dynamic ring from getting stuck in the soft ring during grinding, which can cause the sealing surface to peel off or experience strong wear.
High performance materials: Choose materials that are wear-resistant, corrosion-resistant, and have good fatigue resistance, such as silicon carbide, alumina ceramics, etc., which can improve the service life of the sealing ring.
2. Structural design
End face geometry optimization: By improving the geometry and surface roughness of the sealing end face, friction resistance is reduced and energy consumption is lowered. Meanwhile, improving the precision of end face machining can also help reduce the possibility of leakage.
Adjustment of spring preload force: Appropriate spring preload force can ensure a tight fit of the sealing ring and prevent excessive wear. By precisely adjusting the spring preload, the optimal sealing performance can be achieved.
3. Improvement of lubrication system
Use lubricant: Form a lubricating film between the surfaces of two objects, which can significantly reduce the friction between the objects and extend the service life of the machine.
Optimize lubricant supply: Ensure sufficient and stable supply of lubricant to the sealing pair, further improving its lubrication efficiency.
4. Control of operating parameters
Reasonably control the speed and temperature: Excessive speed or unsuitable working temperature will exacerbate the wear of the sealing pair. Therefore, reasonable control of these parameters is crucial for maintaining low friction.
In summary, targeted measures can be taken in material, structural design, lubrication system, and operating conditions to effectively reduce friction in mechanical seals, thereby improving the overall efficiency and reliability of the equipment.
