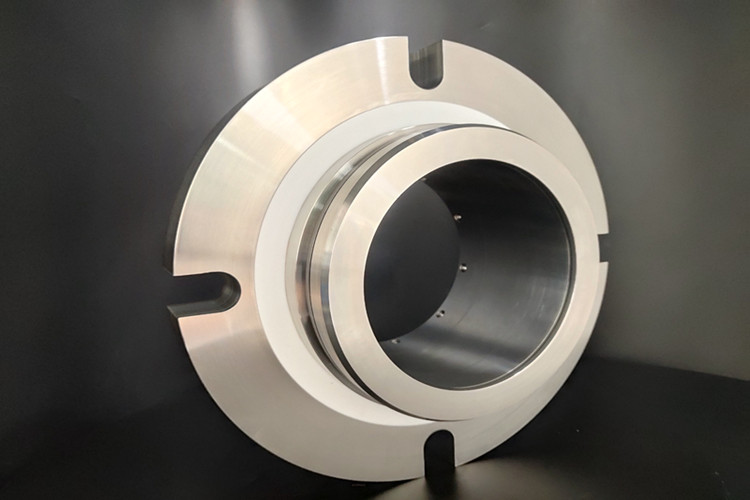

AS-C478 Dual Cartridge Seal

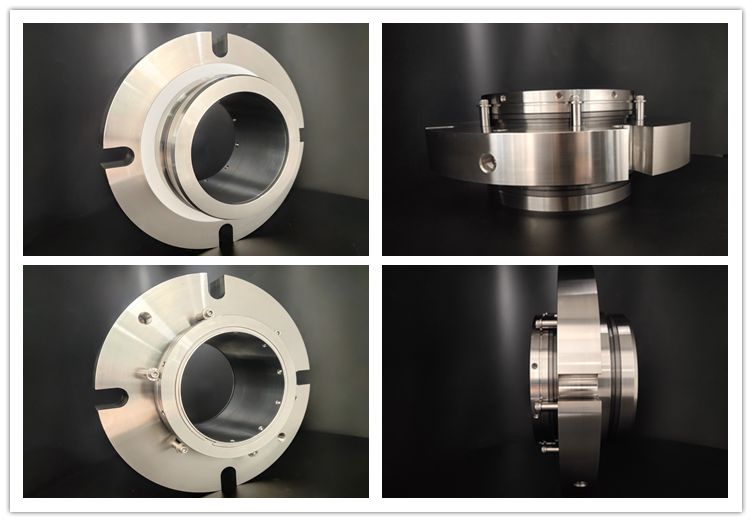

AS-C478 cartridge seal is customized dual seal  with multiple spring   that  made as per client drawing.

About us :



Background:

What is the containerized mechanical seal
Definition of containerized mechanical seals
The containerized mechanical seal device is a shaft seal device that relies on a pair or several pairs of end faces that slide relative to the shaft and are held in contact under the action of fluid pressure and the elastic force (or magnetic force) of the compensation mechanism to assist in sealing and achieve leakage prevention. It is a shaft seal device for rotating machinery. In relevant national standards, mechanical seals (including containerized seals) are defined as"devices that prevent fluid leakage by holding and sliding relative to at least one pair of end faces perpendicular to the rotation axis under the action of fluid pressure and compensation mechanism elasticity (or magnetic force), as well as auxiliary seals.
Common structures of containerized mechanical seals
The commonly used mechanical seal structure consists of a stationary ring, a rotating ring, an elastic element spring seat, a set screw, a rotating ring auxiliary sealing ring, and a stationary ring auxiliary sealing ring. The anti rotation pin is fixed on the cover to prevent the stationary ring from rotating. The rotating ring and stationary ring can often be referred to as compensating rings or non compensating rings depending on whether they have axial compensation capability. The shaft sleeve and gland are unique components of the containerized machine seal, which can be used to combine all the machine seal parts together. The gland can also be connected to the machine body.
Characteristics of containerized mechanical seals
1. Easy installation: There is no need to measure the sealing working length during installation, only the tight cover bolts need to be installed, which can also avoid the problem of poor installation by operators. For example, standard containerized mechanical seals are popular among users due to their simple installation.
2. Adjustable shaft: The shaft can be adjusted at any time to meet different work requirements.
3. Prevent startup leakage: There will be no leakage problem during startup, as the seals have been pre tested.
4. Ensure assembly quality: The installation process is simple and the assembly quality is easy to guarantee.
5. Other features: such as the compact design of the standard containerized mechanical seal cover, suitable for working conditions with limited available space; The integral transmission has no risk of detachment; Multiple small springs are isolated from the medium, preventing blockage and corrosion; The embedded O-ring can prevent extrusion under vacuum conditions.
