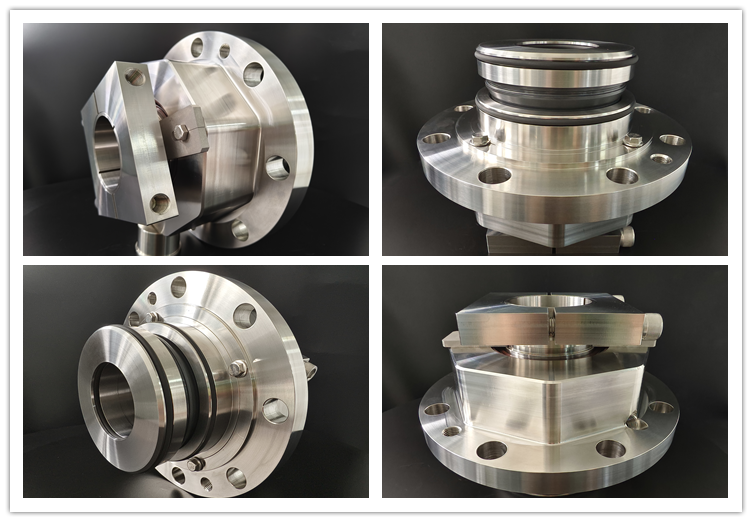

AS-C501 cartridge seal is customized single seal with multi spring that made as per client drawing.
Basic information
| Model: | AS-C501 | Size： | 80mm |
| Structure: | Multiple spring | Type： | Single seal |
| Pressure： | Medium pressure mechanical seal | Speed： | General Speed Mechanical Seal |
| Temperature: | Temperature Mechanical Seal | Standard: | General Speed Mechanical Seal |
| Balance: | Balance | Appliaction: | Pump |
| MOQ: | 1 set | Transport package: | Wooden Case |
| HS code: | 8484200090 | Origin: | Zhangjiagang,China |
Combined Materials
| Rotary face material： | SSIC | Stationary face material： | SSIC |
| Spring material: | HAST-C | Secondary seal: | VITON |
| Metal parts: | 2507 | Other: | SS316 |
Production Description
1. Feature
- Standardized design
- The multiple spring structure is simple and has strong environmental adaptability
- The positioning of the fastening screw is simple and reliable, and easy to install
- Corrosion resistant design with dedicated corrosion-resistant seals
2. Material
We can provide materials not mentioned above to meet the requirements of different occasions. If needed, please contact Asino company
3. Aplications
- Oil and gas
- Chemical
- Metallurgical
- Pharmaceutical
- Food
- Water treatment
4. The core structure of single-ended wave spring cartridge seal assembly includes:
Single end face design: composed of a pair of sealing end faces (dynamic and static rings), the structure is simple and easy to maintain.
wave spring: As a compensation element, it has the characteristics of pre-tension stability and small space occupancy, suitable for scenarios with limited installation space.
Assembly structure: the dynamic ring, static ring, shaft sleeve and other components are pre-assembled into an entire unit, the installation does not need to be adjusted separately, which can significantly improve the installation efficiency.
Technical parameters and application scenarios
Item Parameters / Features
Structure type ： Single-end face, arbitrary rotation
Operating parameters ：Shaft diameter range 28~200mm, allowing axial deviation ±1.5mm
Applicable media： Water, oil, inorganic acid, alkali, salt and organic solvent, etc.
Typical applications ：Petrochemical pumps (centrifugal pumps, submersible pumps), food and beverage processing, pharmaceutical, environmental protection industries
Core Advantages
Easy to install: The modular design reduces on-site cartridge seal assembly steps and reduces reliance on operator skills3.
Low maintenance costs: the single surface structure is easy to replace quickly, the wave spring compensation performance is excellent, extending the service life.
High adaptability: suitable for a variety of rotary and media types, high interchangeability, can replace traditional mechanical seals.
Company Profile
Question 1: Are you a factory or a trade company?
Asinoseal : We are a factory with 3000㎡area with over 40 workers.
Question 2: Where is your factory located? How can I go there?
Asinoseal: Our factory is located in Zhangjiagang City,Suzhou, near Shanghai .
Question 3 How can I trust your quality?
Asinoseal: Our company passed ISO9001:2008,and strictly follow this standard,we have strict QC from raw material QC to QC before shipping to ensure our quality. Quality lists always first in our company.
Question 4: When can I get my order after placing it?
Asinoseal: For stock one,3-7 days, non-standard one 30-35 days
Question 5: What's payment term?
Asinoseal: For first cooperation,it has to be 100% before production,but for long-term cooperation,it could be adjusted
Question 6: Can you make mechanical seals according to our drawing?
Asinoseal: Absolutely yes,that's our advantage
Question 7: What's your company's advantage product?
Asinoseal : Agitator seals,cartridge seals and metal bellow seals,we always have good price and quality
