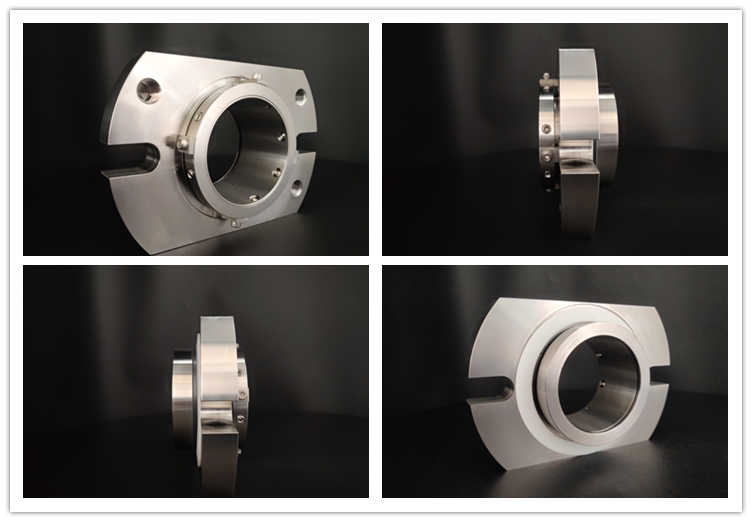

AS- CSS Single Cartridge Seal

AS- CSS Single Cartridge Seal

Suggested  Operating Limits
Temperature : -20℃~200℃
Speed:≤16m/s
Pressure:≤1.6Mpa



Combined Material
Rotary Face: Sic/TC
Stat Ring：Carbon/Sic/TC

Background:

Maintenance Techniques for Mechanical Seals
Mechanical seal is an important sealing device that requires special attention to maintenance and upkeep during use. Here are some maintenance tips summarized based on search results:
Cleaning and lubrication
During the use of mechanical seals, sediment and dirt are prone to accumulate in the sealing chamber, affecting the sealing effect. Therefore, regular cleaning is necessary. At the same time, mechanical seals require a certain amount of lubricating oil to maintain their sealing effect, and regularly adding lubricating oil is beneficial for extending the service life of mechanical seals.
Avoid dry grinding and excessive tightening
When using equipment such as water pumps, dry grinding should be avoided as it has a significant impact on mechanical seals. In addition, avoid excessive tightening during use to prevent damage to the mechanical seal 21.
Check and replace seals
After a long period of use, mechanical seals may experience wear and aging of the seals, and they need to be replaced in a timely manner to ensure the normal operation of the mechanical seals. Once the leakage rate of the seal exceeds 3 drops per minute, immediate maintenance should be carried out.
Pay attention to the spring pressure
The pressure of the spring must be moderate, as both excessive and insufficient spring pressure can have an impact.
Record maintenance and upkeep status
It is necessary to record the maintenance and upkeep of mechanical seals, including cleaning the sealing chamber, replacing seals, adjusting pressure, and adding lubricating oil, in order to facilitate the next maintenance and upkeep.
Correct installation and operation
The installation and disassembly of mechanical seals require operators to have professional knowledge and experience, otherwise it is easy to cause damage to the mechanical seals. The correct installation program, strict operating procedures, and reasonable maintenance system are powerful measures to ensure the performance and normal operation of mechanical seals.
Through the above maintenance techniques, the service life of mechanical seals can be effectively extended, ensuring the normal operation of equipment.
