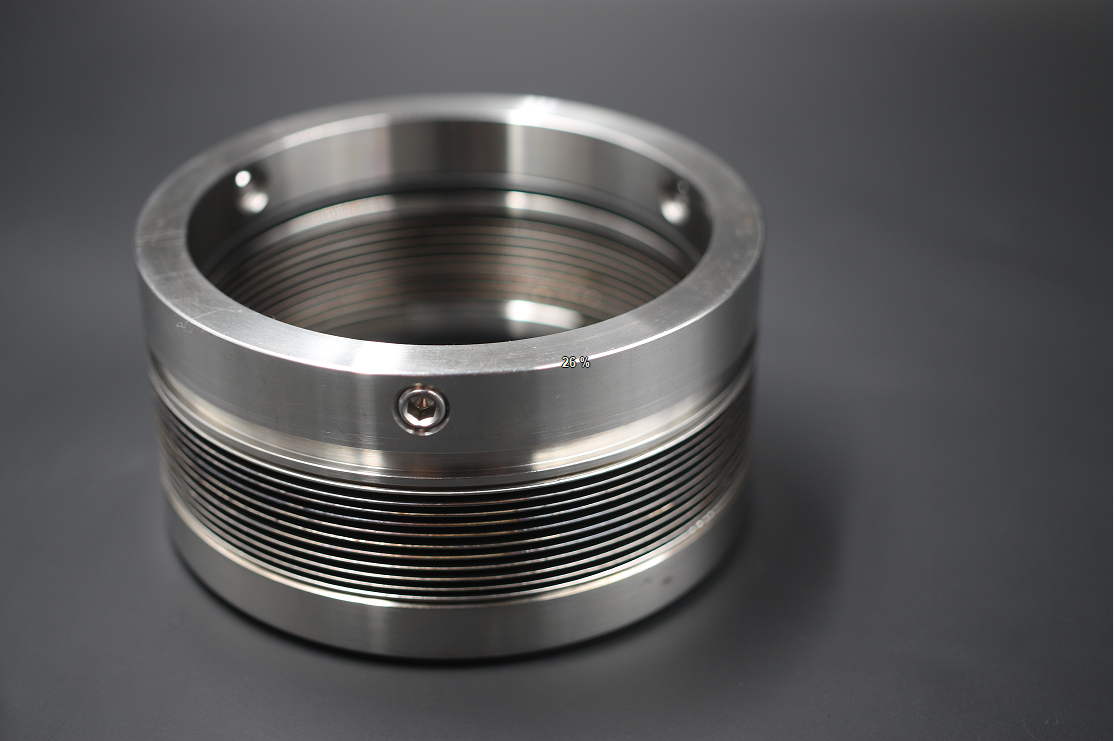

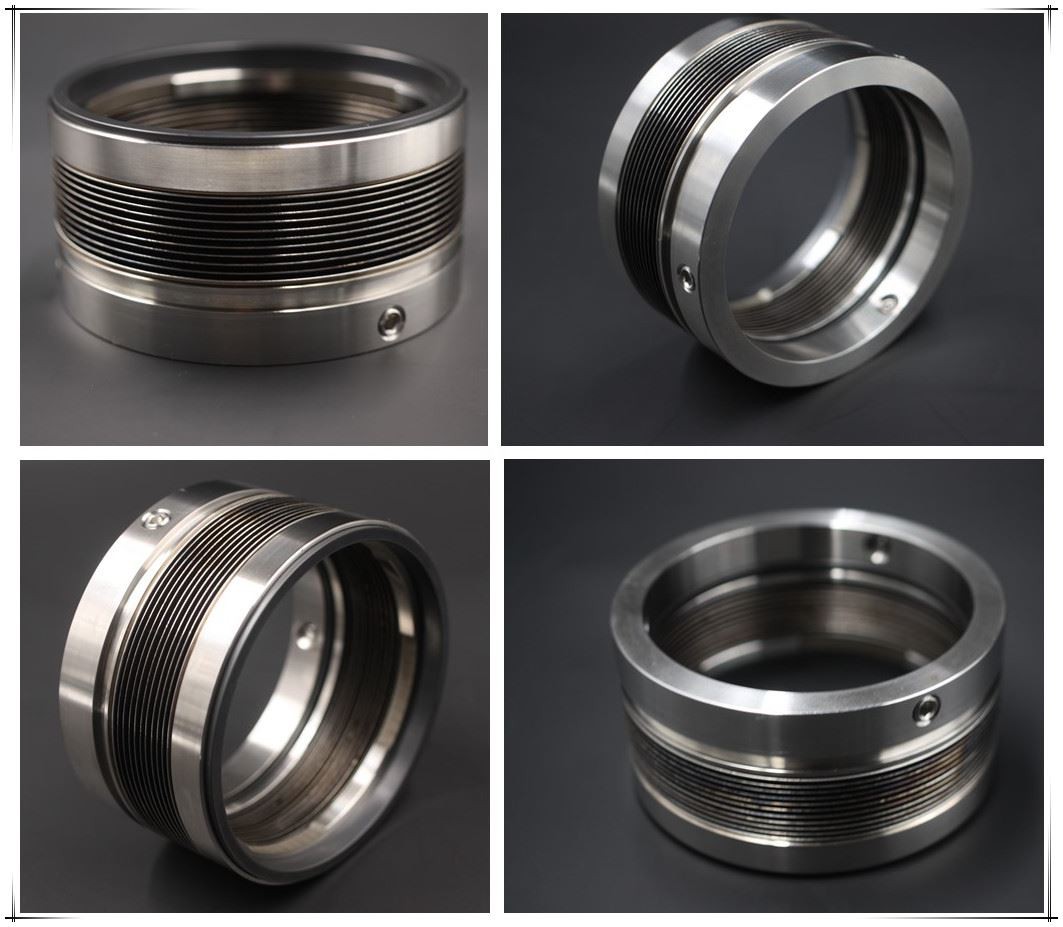

AS-BJ80 metal bellow mechanical seal

Model NO.: AS-BJ80

Description：
Our AS-BJ80 is the ideal seal for general-purpose applications, especially good for low-temperature applications found in the chemical, water and waste water, pulp and paper, and utility industries. The seal is available with hard faces for abrasive applications and a wide range of elastomers to cover a broad range of applications.

Bellows Design Features:
⑴Optimum 45° tilt angle
⑵Three-sweep radius
⑶Static secondary seal
⑷Light spring loads

Welded Metal Bellows Bellows Advantages:
⑴Uniform plate rigidity and stress distribution
⑵Enhanced fatigue strength
⑶Pressure-balanced by design
⑷Less heat generated
⑸Lower power consumption

Recommended Applications:
1,Aqueous solutions
2,Chemicals
3,Hydrocarbons A
4,Slurry
5,Thermo-sensitive fluids
6,Water

Quantity:

Product Description

Description：
This type is to replace Johncrane 680 seal. Our AS-BJ80 is the ideal seal for general-purpose applications, especially good for low-temperature applications found in the chemical, water and waste water, pulp and paper, and utility industries. The seal is available with hard faces for abrasive applications and a wide range of elastomers to cover a broad range of applications.

Suggested Operation Limits
Temperature:-20℃-220℃
Speed:≦20M/S
Pressure:≦2.0Mpa

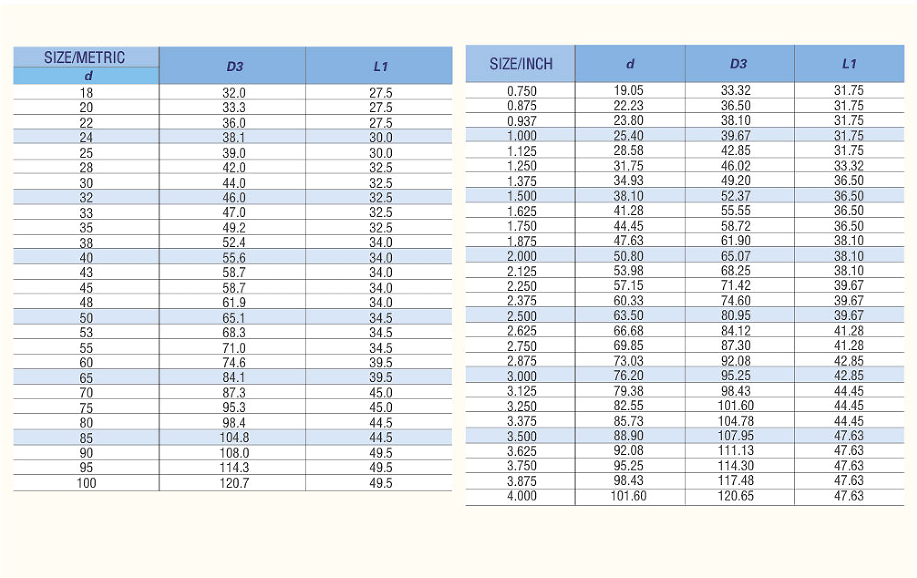

Size:18-100mm

Combined Material
Rotary Face:Carbon/SIC/TC
Stat Ring:SIC/TC
Seat Type:Standard AS-ORSA,Alternative AS-ROSE/S09

Bellows Design Features:
⑴Optimum 45° tilt angle
⑵Three-sweep radius
⑶Static secondary seal
⑷Light spring loads

Welded Metal Bellows Bellows Advantages:
⑴Uniform plate rigidity and stress distribution
⑵Enhanced fatigue strength
⑶Pressure-balanced by design
⑷Less heat generated
⑸Lower power consumption

Recommended Applications:
Aqueous solutions
Chemicals
Hydrocarbons A
Slurry
Thermo-sensitive fluids
Water

Background knowledge:
Production processes of welded metal bellows:
Welded metal bellows is to stamp metal sheets of certain width into wave washer type plates, and weld the inner circumferences of the two wave plates to make a V-shaped semi-finished product, and then overlap several semi-finished products before welding the outer circumference, and finally weld the front and rear ring seats to form the specified bellows. The main process is: punching and forming of wave plates → cleaning → inner seam welding → outer seam welding → welding front and rear seat rings → inspection → heat treatment → inspection.
