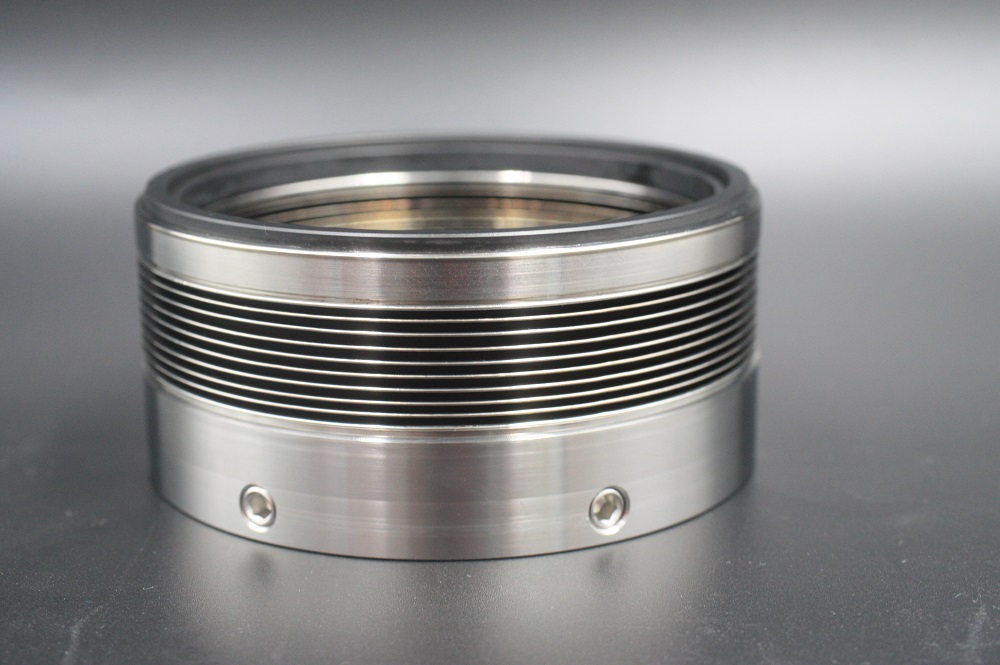

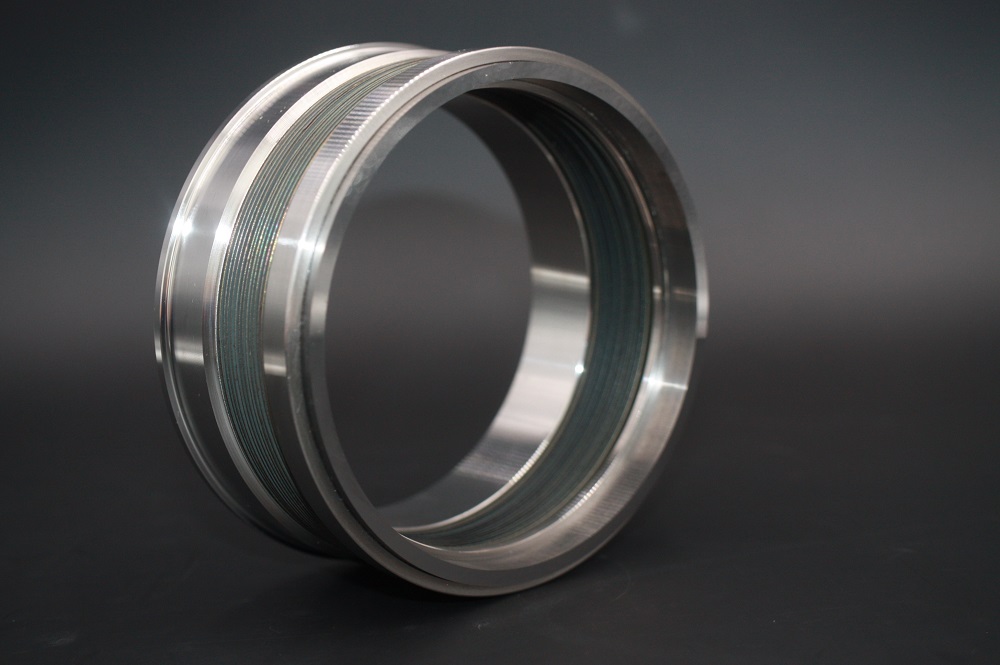

Rotary Part Of AS-B299 Customized Metal Bellow Mechanical Seal

Background Knowledge：

Schematic diagram of axial force balance analysis of mechanical seal friction pair

Various loads act on the rotary face and stationary seat of the mechanical seal.These loads can be divided into two types of forces: one is the closing force and the other is the opening force. It is because of the existence of these two forces that the force balance of the sealing end face can be maintained. The axial force balance analysis of the mechanical seal is carried out below, and the axial force of the friction pair is shown in the figure below.

 F_sp——The load applied to the compensation ring by the elastic element

 F_{fr———The friction between the compensation ring auxiliary seal and the sliding surface}

_{Fi——Inertial force generated when the compensation ring assembly is accelerated in the axial direction}

_{P1——Sealing end face contact specific pressure}

_{P2———Sealing fluid pressure acting specific pressure}

_{Pm———mean fluid film pressure}
