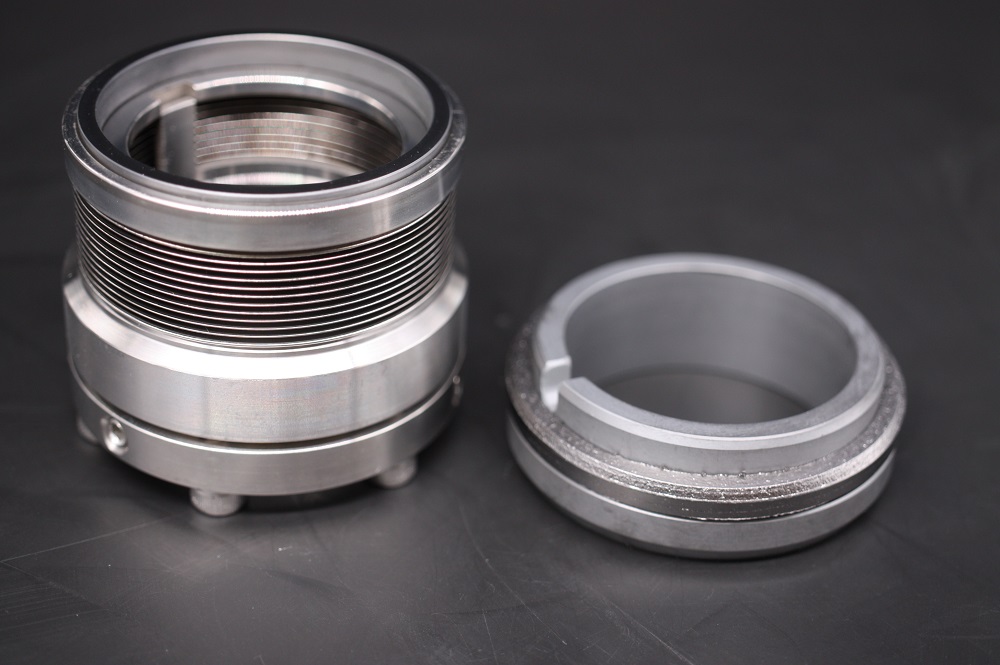

AS-BM80T seal to replace Burgmann MFLWT80 seal

Description：

This seal is to replace Burgmann MFLWT80 welded metal bellow mech seal.

Suggested Operation Limits

Temperature:-20℃～4000℃

Speed:≤20M/S

Pressure:≤2.0Mpa

Size:16mm-100mm

Combined Material

Rotary Face:Carbon/SIC/TC

Stat Ring:Ceramic/SIC/TC

Seat Type:Standard AS-S09

This type seal can replace with Burgmann MFLWT80 type seal

Features:

⑴For unstepped shafts

⑵Single Seal

⑶Balanced

⑷Independent of direction of rotation

⑸Metal bellows rotating

Advantages:

⑴For extreme high temperature ranges

⑵No dynamically loaded O-Ring

⑶Self cleaning effect

⑷Short installation length possible

⑸Pumping screw for highly viscous media available (dependent on direction of rotation)

Suggested Applications:

⑴Process industry

⑵Oil and gas industry

⑶Refining technology

⑷Petrochemical industry

⑸Chemical industry

⑹Pulp and paper industry

⑺Hot media

⑻Highly viscous media

⑼Pumps

⑽Special rotating equipment

Background Knowledge：
Bellows mechanical seals and their auxiliary systems currently used mainly have the following forms of seal failures :
Seal failures caused by loss of elasticity or breakage of the bellows.
Seal failure caused by excessive wear of the graphite ring in the mating friction pair.
The sealing failure caused by the surface thermal cracking of the cemented carbide ring in the matched friction pair.
