Theme 1 : wave spring core performance advantages and technical characteristics
Definition: wave spring (spring) is an elastic element with peak valley structure on a thin metal ring, which achieves high elasticity, compactness and customization performance through special wave design.
Key facts:
Space utilization: the flat structure can save 50% axial space, suitable for micro-devices such as mobile phone camera modules.
Resistance to fatigue and stability: the stress distribution is uniform, the car suspension system can withstand vibration shocks for a long time; the minimum working height under the life of about 10,000 times, reducing the 50% compression volume can be increased to 1 million times.
Lightweight and customization: the weight is lighter than the traditional spring of the same specification, and different elastic coefficients can be achieved by adjusting the wave and material (such as 17-7PH stainless steel).
Additional features: both sealability (e.g. hydraulic equipment leak proof) and deformation stiffness characteristics (adjusting stiffness by wave peak parameters).
Dispute point: There is no significant technical dispute, the main challenge is that the stability of the material under extreme working conditions (such as ultra-high temperatures) needs further verification.
Definition: wave spring (spring) is an elastic element with peak valley structure on a thin metal ring, which achieves high elasticity, compactness and customization performance through special wave design.
Key facts:
Space utilization: the flat structure can save 50% axial space, suitable for micro-devices such as mobile phone camera modules.
Resistance to fatigue and stability: the stress distribution is uniform, the car suspension system can withstand vibration shocks for a long time; the minimum working height under the life of about 10,000 times, reducing the 50% compression volume can be increased to 1 million times.
Lightweight and customization: the weight is lighter than the traditional spring of the same specification, and different elastic coefficients can be achieved by adjusting the wave and material (such as 17-7PH stainless steel).
Additional features: both sealability (e.g. hydraulic equipment leak proof) and deformation stiffness characteristics (adjusting stiffness by wave peak parameters).
Dispute point: There is no significant technical dispute, the main challenge is that the stability of the material under extreme working conditions (such as ultra-high temperatures) needs further verification.
Theme 2: wave spring Materials and Process Innovation
Definition: Improve corrosion resistance, durability and performance consistency of wave spring through material selection and precision manufacturing processes.
Key facts:
Mainstream material: spring steel (surface blackening treatment), 17-7PH stainless steel (resistant to 200 ℃ high temperature, corrosion resistance).
Process process: stamping molding → heat treatment (improve mechanical properties) → surface treatment (passivation / blackening) → precision inspection.
Technology breakthrough: multi-layer winding spring to achieve precision pre-tensioning, applied to motor bearings to reduce clearance, improve NVH (noise, vibration and acoustic vibration roughness) performance.
Data Case: Yida stainless steel spring high stress performance is better than carbon steel, suitable for bearing pre-tightening, sealing and other high precision scenarios.
Theme 3: wave spring Key Industry Application Scenarios
Definition: Based on the advantages of compactness and lightweight, replace traditional springs in automotive, electronics, aerospace and other fields to solve space and performance bottlenecks.
Key Applications:

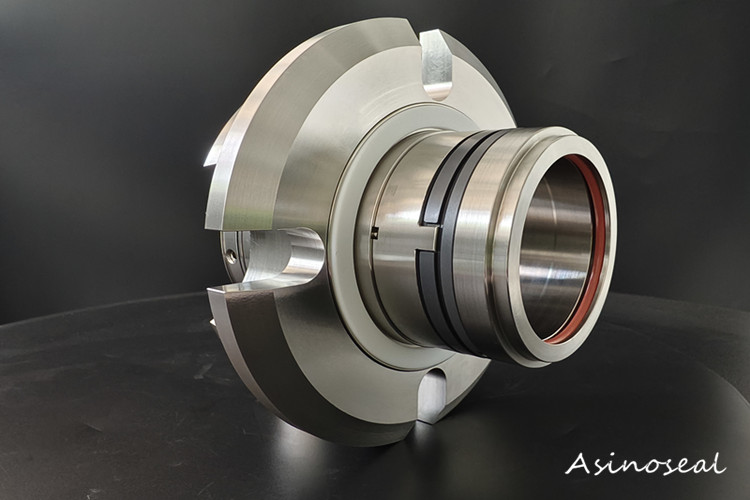

Automotive: Suspension systems (fatigue resistant), separation bearings (buffering eccentric radial force), pump seals (reducing leakage and wear).
Electronics: mobile phone camera module (micro support), electrical connector (stable locking force).
Motor and industrial machinery: bearing pre-tightening (saving 50% assembly space), hydraulic valves (seal compensation).
Medical devices and aviation: surgical instruments (lightweight), spacecraft components (weight loss and efficiency).
Theme 4: wave spring Market Trends and Future Development Directions
Definition: As the demand for equipment miniaturization and precision increases, wave spring application scenarios are penetrating from traditional industries into new fields.
Key trends:
Miniaturization and integration: Micro-machinery such as 5G devices and robotic joints promote the research and development of ultra-small spring sizes.
New energy sector: The demand for fatigue-resistant springs for precision drive systems for wind/photovoltaic equipment is increasing.
Customization Service: Designing special waves (e.g. bidirectional/multi-waves) on demand to accommodate extreme working conditions (e.g. deep sea detection equipment).
