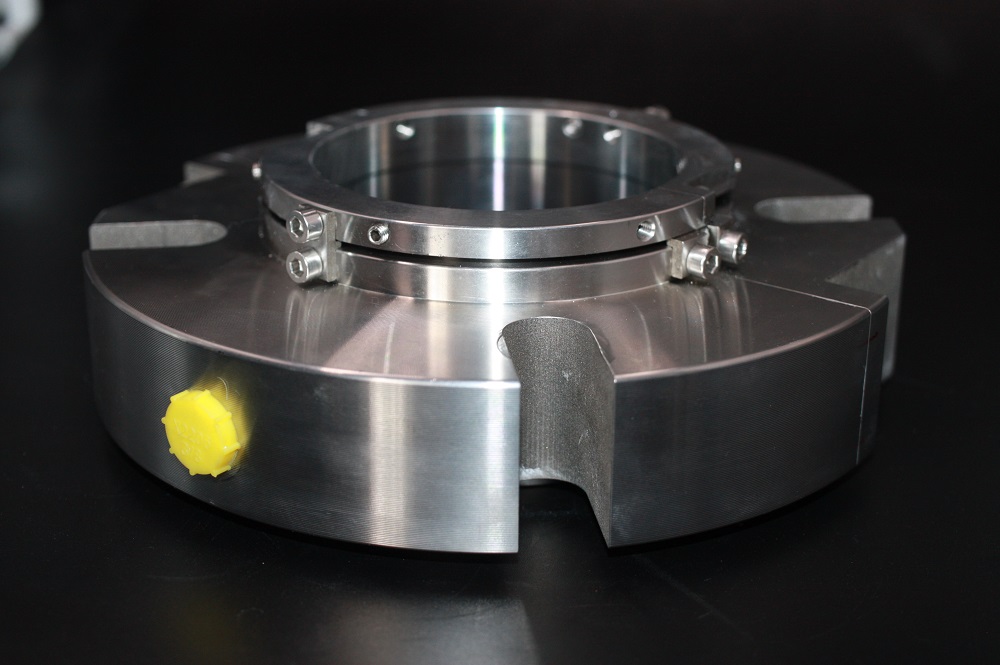

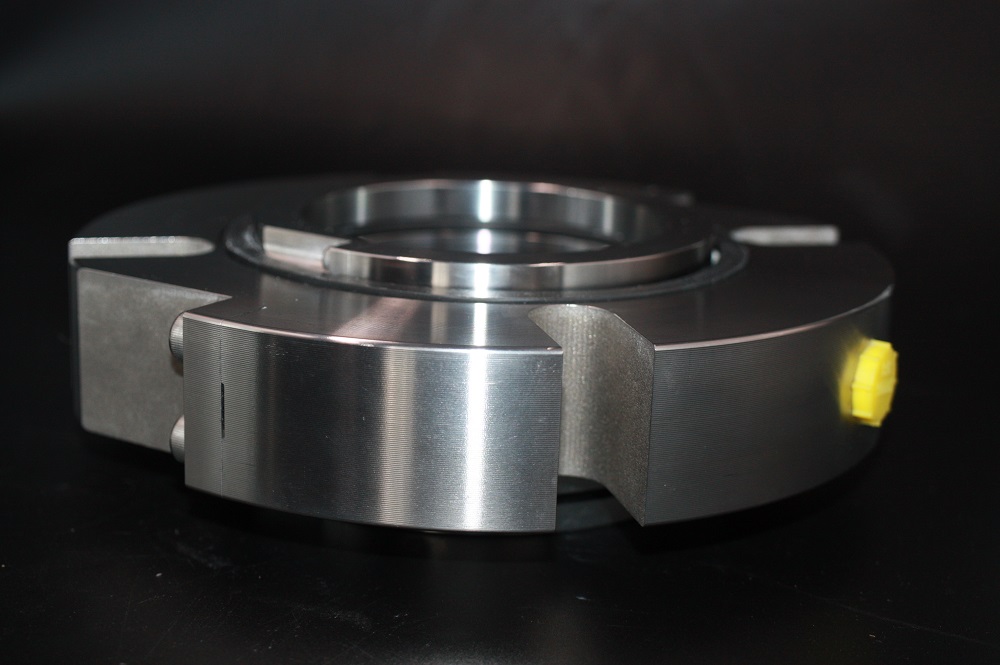

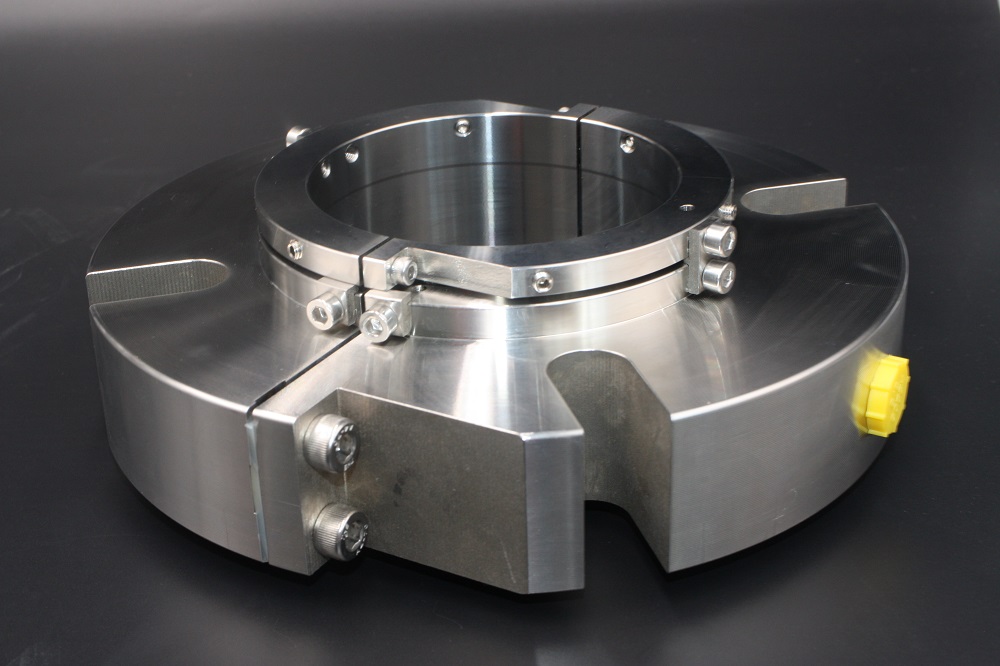

AS-P1 to Replace 85 split seal from Flex-A Seal

Split seal，together with cartridge seals，metal bellow seals and agitator seals are our suprior products which are popular worldwide.

Suggested operating limits

Temperature: 175℃

Speed: 875PRM，800PRM，1800PRM，3600PRM

Pressure：7 bar，10 bar，14 bar，17bar

Combined material

Rotary face: SIC

Stat Ring: Carbon/SIC

Metal parts: Hast-C&SS316

Advantages:

Easily installed because if its cartridge type

No need to touch sensitive lapped faces

Internal & hydraulically balanced

Good sealing surface even on worn packing sleeves

Recommended industries:

Chemical processing

Food processing

Pharmaceutical

Industrial

Water & waste treatment

Petrochemical

Pulp & Paper

Mining

Power generation

Refining

Description

Mechanical Seal AS-P1 is to Replace Cartridge Type Splt seal Style 85 from Flex-A Seal

Background Knowledge：

important and difficult points of the theoretical study of split mechanical seal：

The following is meant to do a plain summary of the important and difficult points of the theoretical study of split mechanical seal from two aspects.

1. The unique structure of the split mechanical seal——the existence of the split surface changes the deformation law of the end face after being heated and compressed, and greatly affects the performance of the split mechanical seal.Carrying out split surface effect research and connection tightness analysis of split mechanical seals in pressure and temperature fields, and proposing methods to improve seal working conditions and sealing performance are the most urgent problems mechanical seal technology research workers face.

2. The establishment of a split mechanical seal design method based on zero deformation or positive and negative offsetting deformation of the end faces of rotary face and stationary seat, along with the development of split end face modification technology research, are the theoretical foundations for its widespread application. After solving the problem of connection tightness of the split surface and how the split surface influence end face’s deformation, the distribution law of dynamic pressure of fluid flowing through end surface will be another hot spot in the research of split mechanical seal technology.
