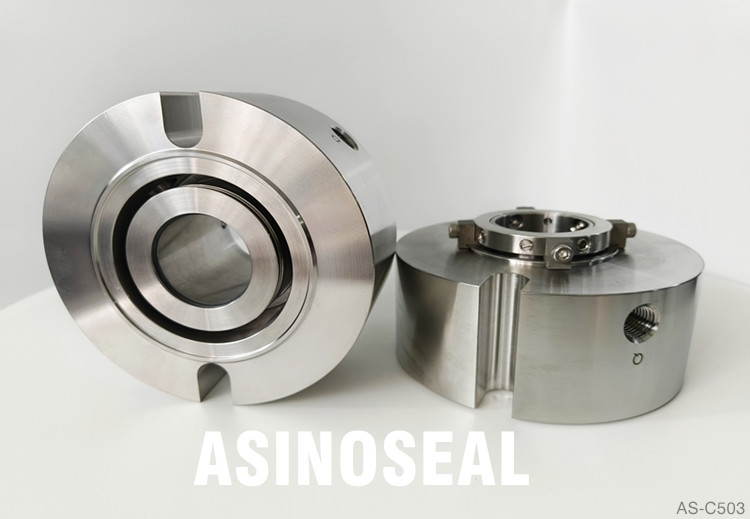

The multi spring seal has higher sealing stability, longer service life, and stronger anti clogging ability.
1. Background
multi spring seal is a high-performance shaft seal device widely used in modern fluid equipment, especially suitable for scenarios such as chemical pumps and desulfurization agitators that require high sealing reliability. It combines the two technological advantages of "multiple springs (small springs)" and "modular design", and is significantly superior to traditional mechanical seals in terms of installation convenience, operational stability, and maintenance efficiency.
This type of seal has been widely used in the fields of petroleum, chemical, environmental protection, etc. The API610 standard also recommends the use of multi spring seal in critical working conditions.
2. Core advantages (itemized description)
a. Spring is isolated from the medium to prevent corrosion and blockage
The small spring is located outside the sealed chamber or isolated from the process medium through structural design, avoiding spring failure caused by particle deposition or chemical corrosion, and improving the reliability of long-term operation.
b. Easy to install, no need to adjust compression on site
All components have been pre assembled and tested before leaving the factory. During installation, only the cover bolts need to be fitted and tightened as a whole, without the need to measure the working length or manually adjust the spring compression, greatly reducing the risk of human error.
c. High sealing reliability, sealing upon startup
Because the sealing performance test has been conducted before leaving the factory to ensure a good fit between the dynamic and static rings, it avoids the common starting leakage problem of traditional seals.
d. Good compensation performance, adaptable to axial wear
Designed with a dynamic ring seal and positioning block structure, it can automatically compensate for the gap after the dynamic/static ring wears out, maintaining the sealing effect.
e. Compact structure, suitable for space limited occasions
The modular design integrates the shaft sleeve and the cover into one, with a small overall volume, making it easy to install in prying equipment or narrow spaces.
f. Support multiple auxiliary system interface extensions
According to the needs, flushing holes, cooling holes and other interfaces can be machined on the gland to flexibly adapt to different working conditions, such as high temperature, low temperature or impurity containing media.
(Additional explanation) Although small springs are sensitive to corrosive media, the design of "spring external" or "medium isolation" can effectively avoid this problem, making it an advantageous solution in practical applications
If the budget allows, it is strongly recommended to replace traditional seals with small spring container type to improve system safety and operational efficiency.
